6.3 Power interface

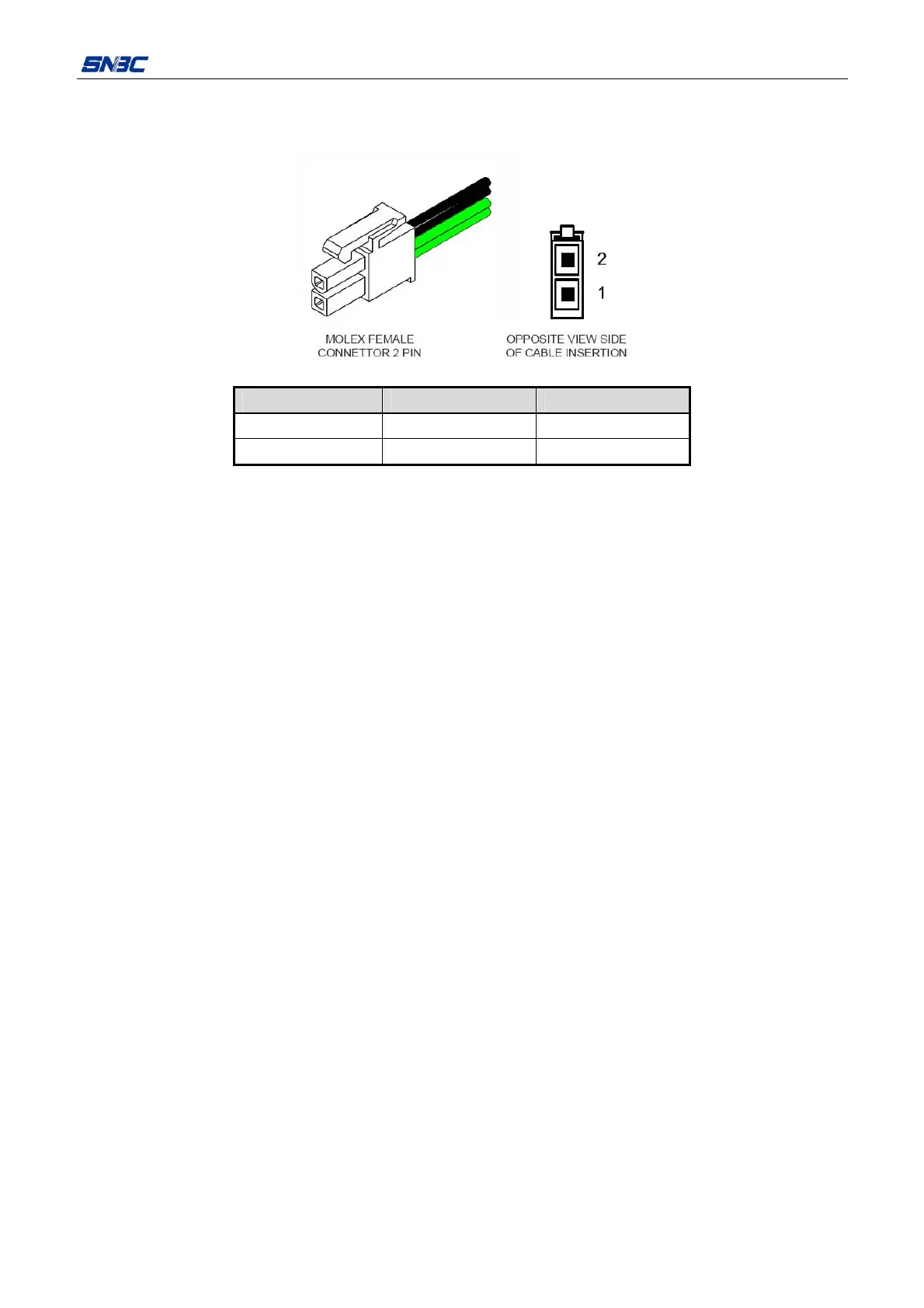

Adopt the 2 pin single bend socket whose space is 4.2mm and pin width is 1.6mm.
Pin definition:
Pin Signal definition Cable color
1 +24V Green
2 GND Black
