BT-T080R User’s Manual
- 13 -
3.5 Anti-pull and anti-jam module (optional)

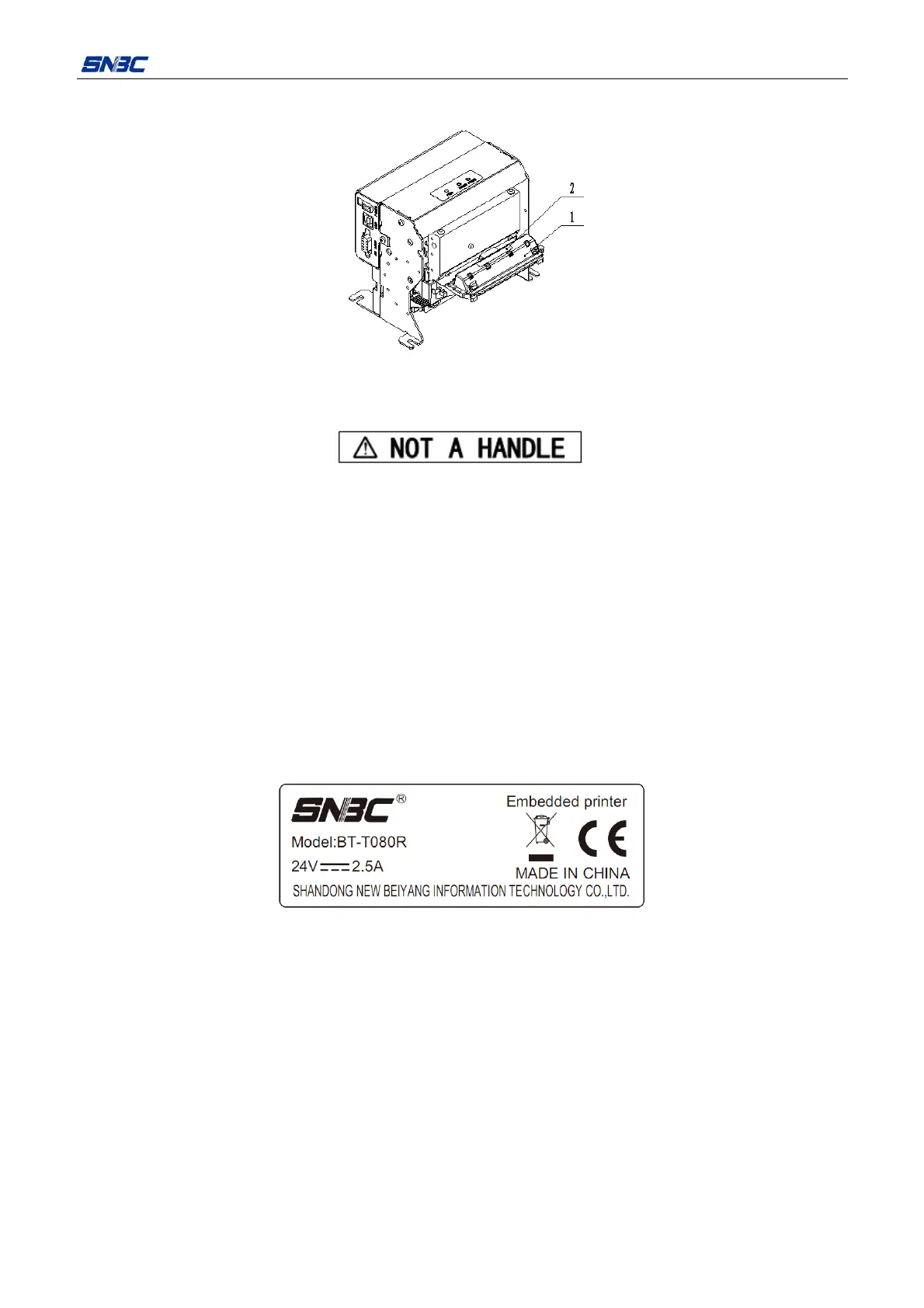

Figure 3.5.1 Print mechanism module (with anti-pull and anti-jam module)
1. Anti-pull and anti-jam module 2. Alarm label
Figure 3.5.2 Alarm label
Module function explanation:
1) When there is paper jam in the paper outlet, the module works and stops feeding paper to avoid
influencing user’s use and mechanism lifetime caused by mechanism paper jams.
2) When pulling paper in the horizontal or downwards direction, the module works and cuts paper to
avoid damaging printer.
Note: Anti-pull and anti-jam module can not be applied to paper roll with thermal layer inward.
Please refer to 3.2.3 for its overall size.
3.6 Product label
The content of the product label is as follows:
Figure 3.6.1 Product label content
