2）Paper roll with thermal layer inward
Figure 4.3.7 Module installation setting and size
Position 2 for installing buffer Buffer shaft position 2
4.3.3 Cantilever angle: 60°

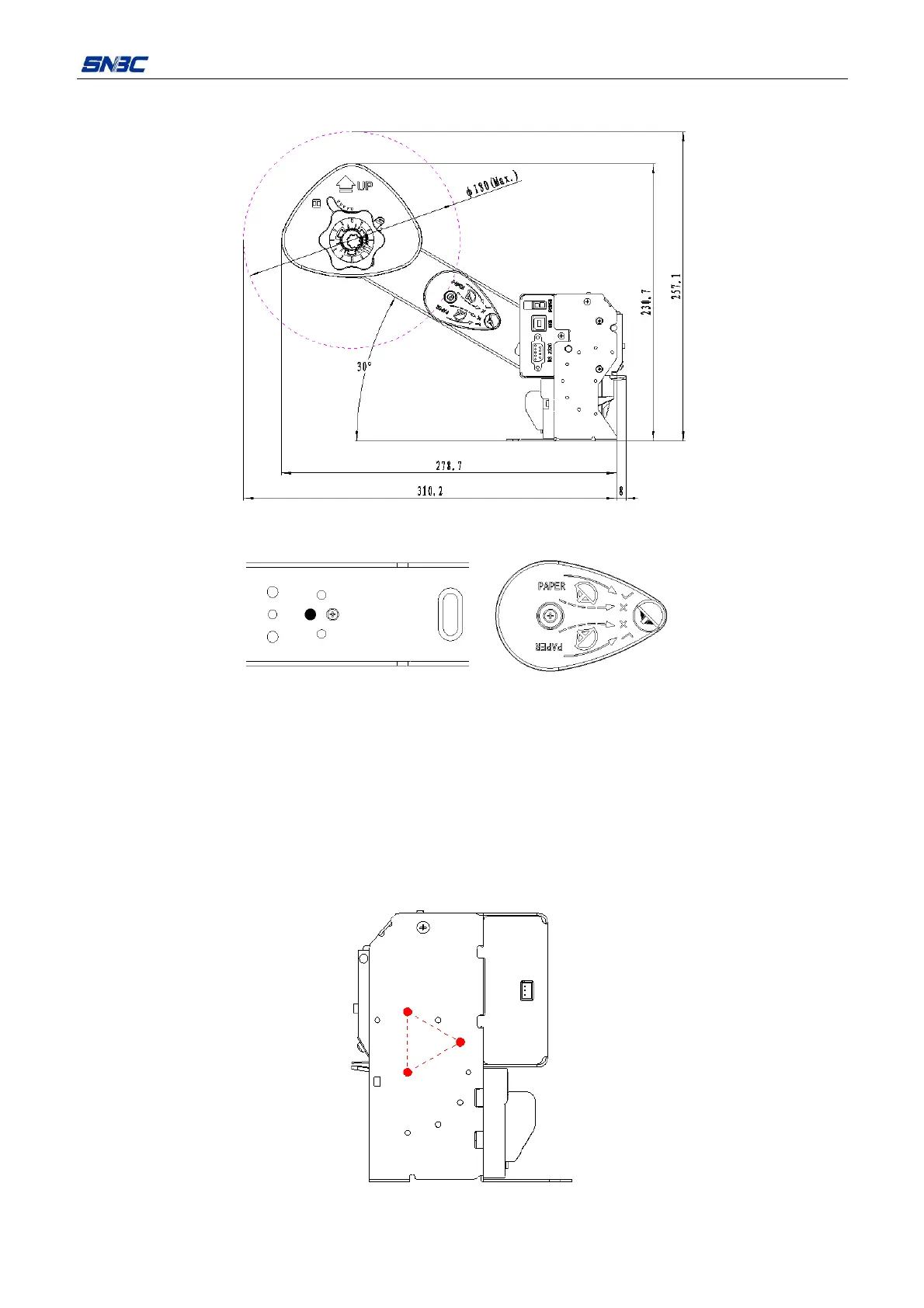

The cantilever angle is 60°, that is, the intersection angle between the cantilever and the horizon is 60°.The
following drawing indicates the relative position of the print mechanism to fixing holes marked by solid
circle and the extreme size after installing the paper roll.
Following is the explanation for the modules corresponding with the paper roll with thermal layer outward
and the paper roll with thermal layer inward.
Figure 4.3.8 Installation position with the cantilever angle 60°
