3 Appearance and modules
3.1 Appearance and modules

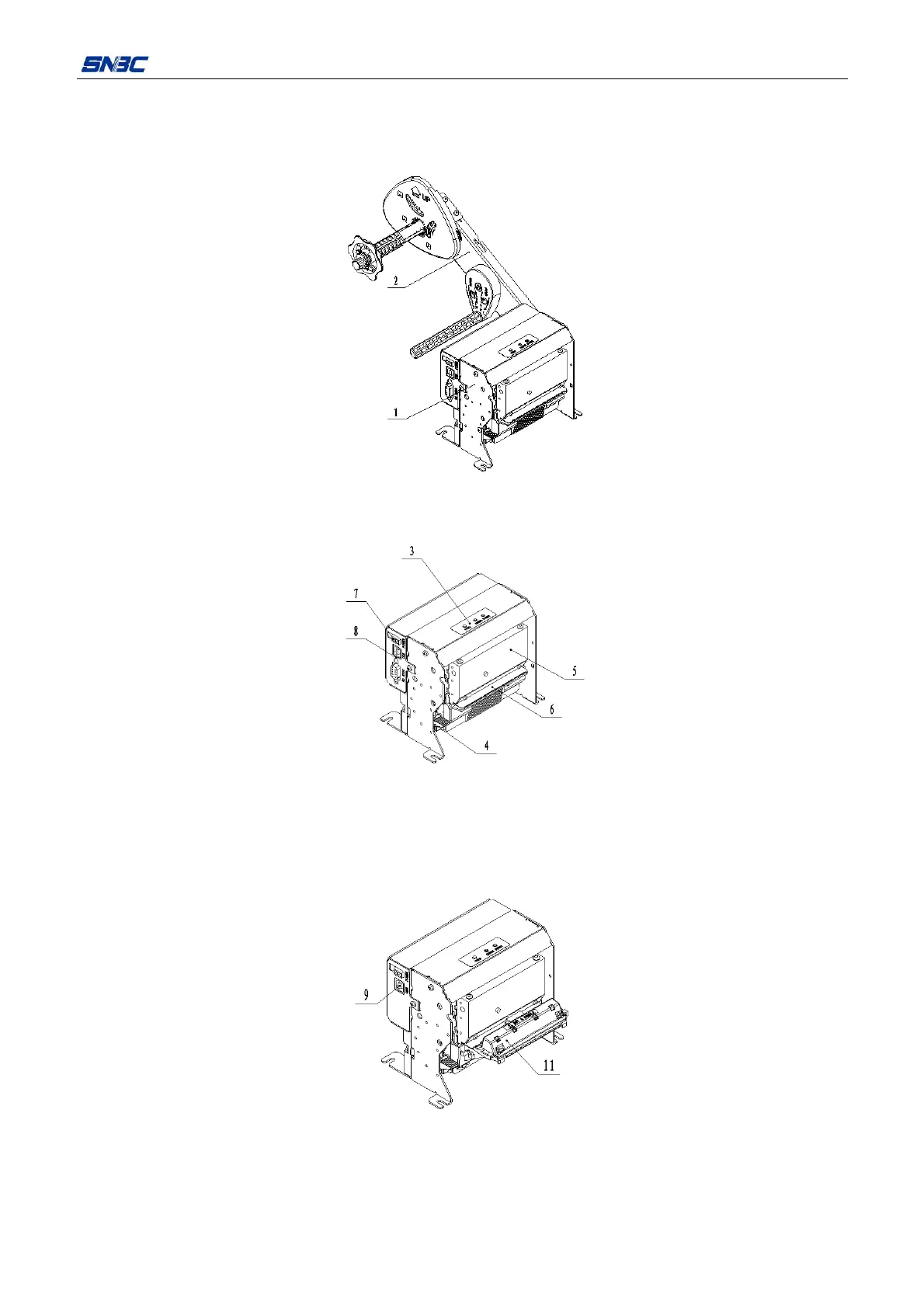

Figure 3.1.1 BT-T080R printer
1. Print mechanism module 2. Cantilever paper shaft module
Figure 3.1.2 Print mechanism module
3. Button and LED 4. Mechanism spanner 5. Cutter
6. Tear-off bar 7. Power interface 8. Communication interface:
serial interface plus USB
Figure 3.1.3 Print mechanism module (with anti-pull and anti-jam module)
9. Communication interface: USB (optional)
11. Paper out module: anti-pull and anti-jam module (optional)
