BT-T080R User’s Manual
- 10 -

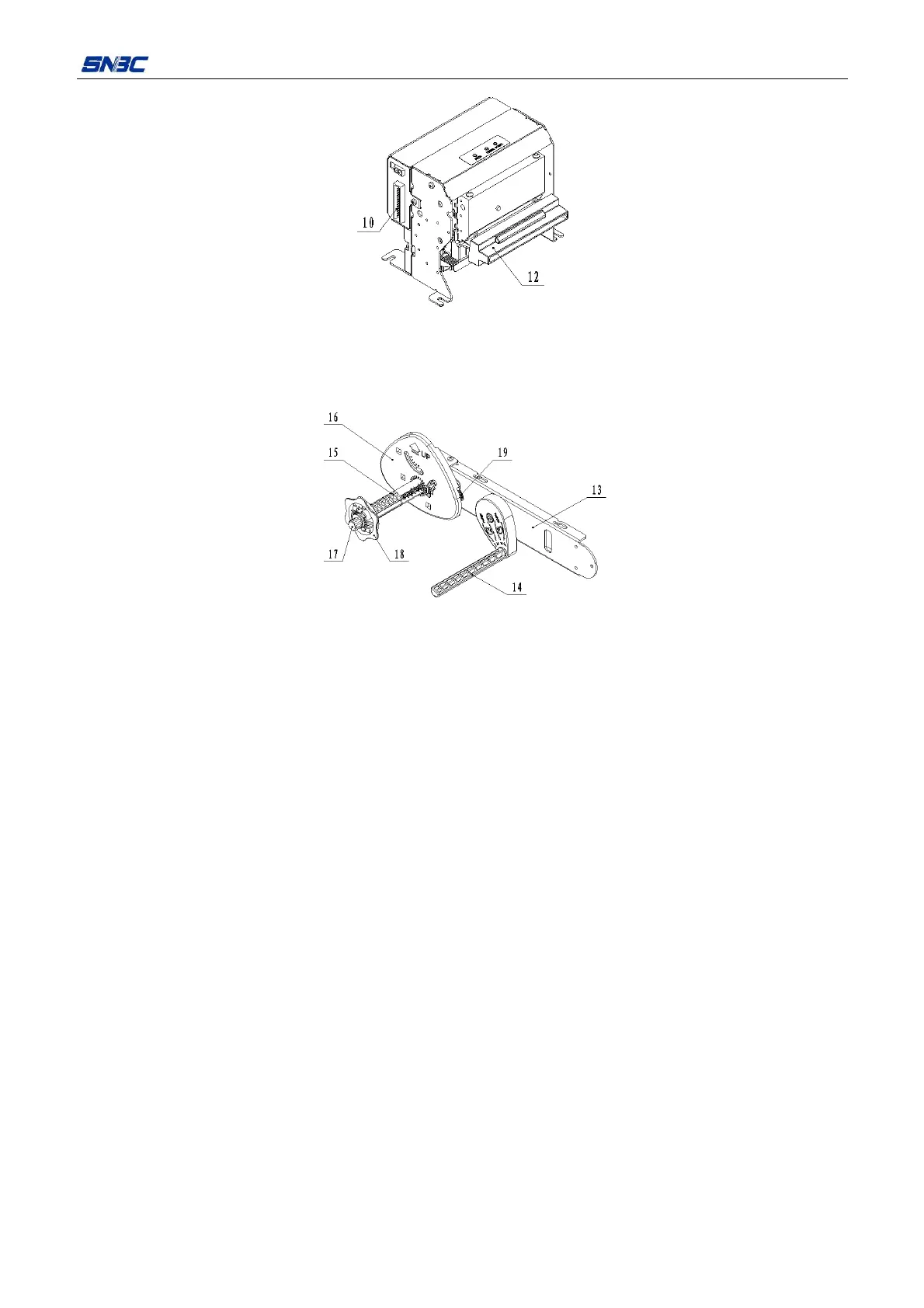

Figure 3.1.4 Print mechanism module (with paper outlet module)
10. Communication interface: parallel interface (optional)
12. Paper out module: paper outlet (with LED) (optional)
Figure 3.1.5 Cantilever module
13. Cantilever 14. Buffer shaft 15.Paper roll shaft 16. Paper roll guide
17. Paper roll guide
moving knob
18. Paper roll baffle 19. Paper near end spanner
