BT-T080R User’s Manual
- 17 -

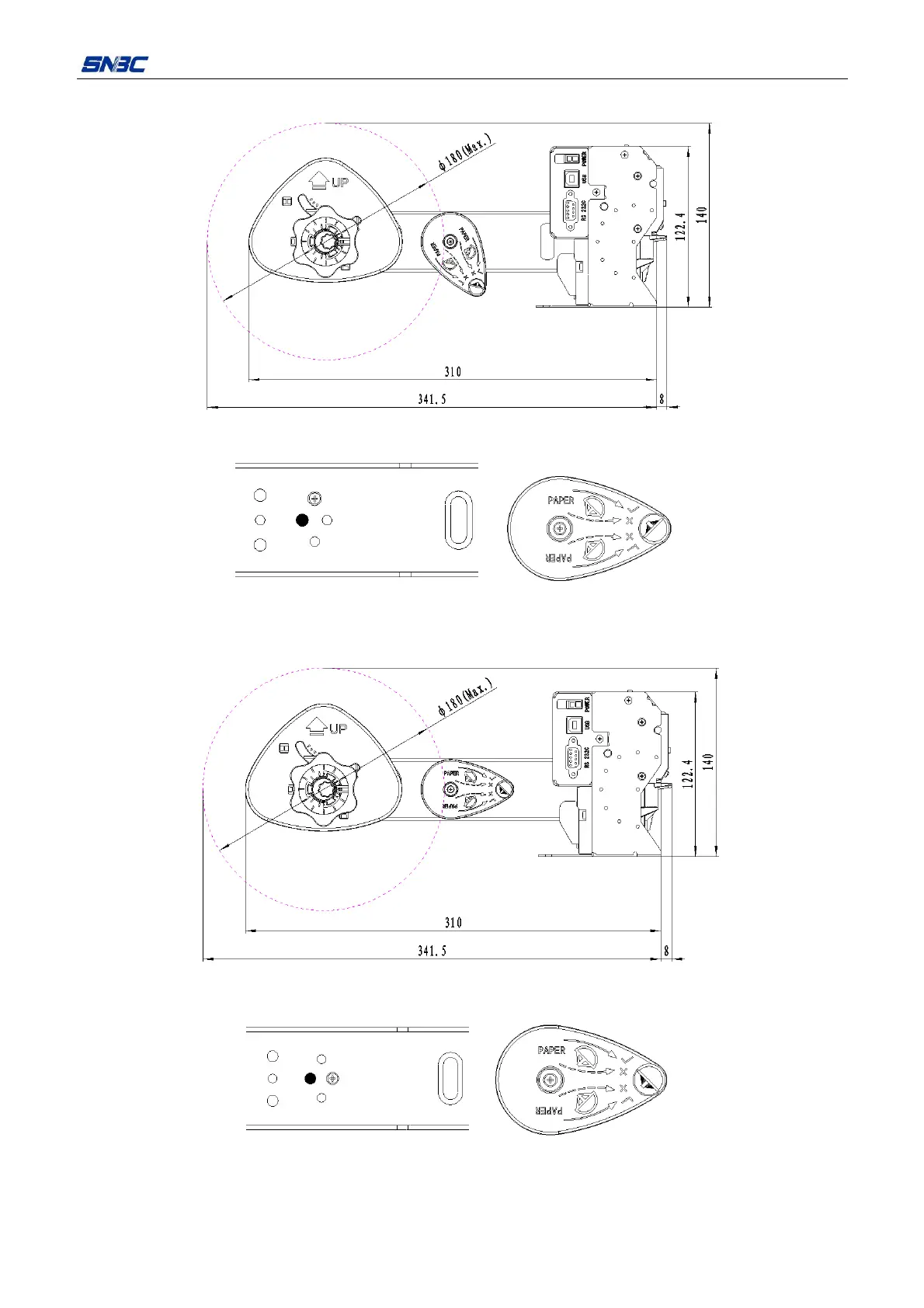

1）Paper roll with thermal layer outward
Figure 4.3.3 Module installation setting and size
Position 1 for installing buffer Buffer shaft position 1
2）Paper roll with thermal layer inward
Figure 4.3.4 Module installation setting and size
Position 2 for installing buffer Buffer shaft position 2
