Important:
• Only use Digiware bus RJ45 cables (UTP RJ45 straight, twisted pair, unshielded, AWG24, 600VCAT
5, -10 / +70°C in accordance with IEC 61010-1 version 3.0) between all the Digiware bus modules.
• The points in the table above are defined as SELV in accordance with IEC 61010: 1 to 5, 8, 9, as well
as the core balance transformer inputs/outputs of the F-60.
• • When connecting, make sure you separate the low voltage (LV) section and the very low voltage
(SELV) section to prevent any risk of electric shock.
• Conductors should be clamped to the closest terminals to avoid them detaching themselves and
reducing the insulation distances.

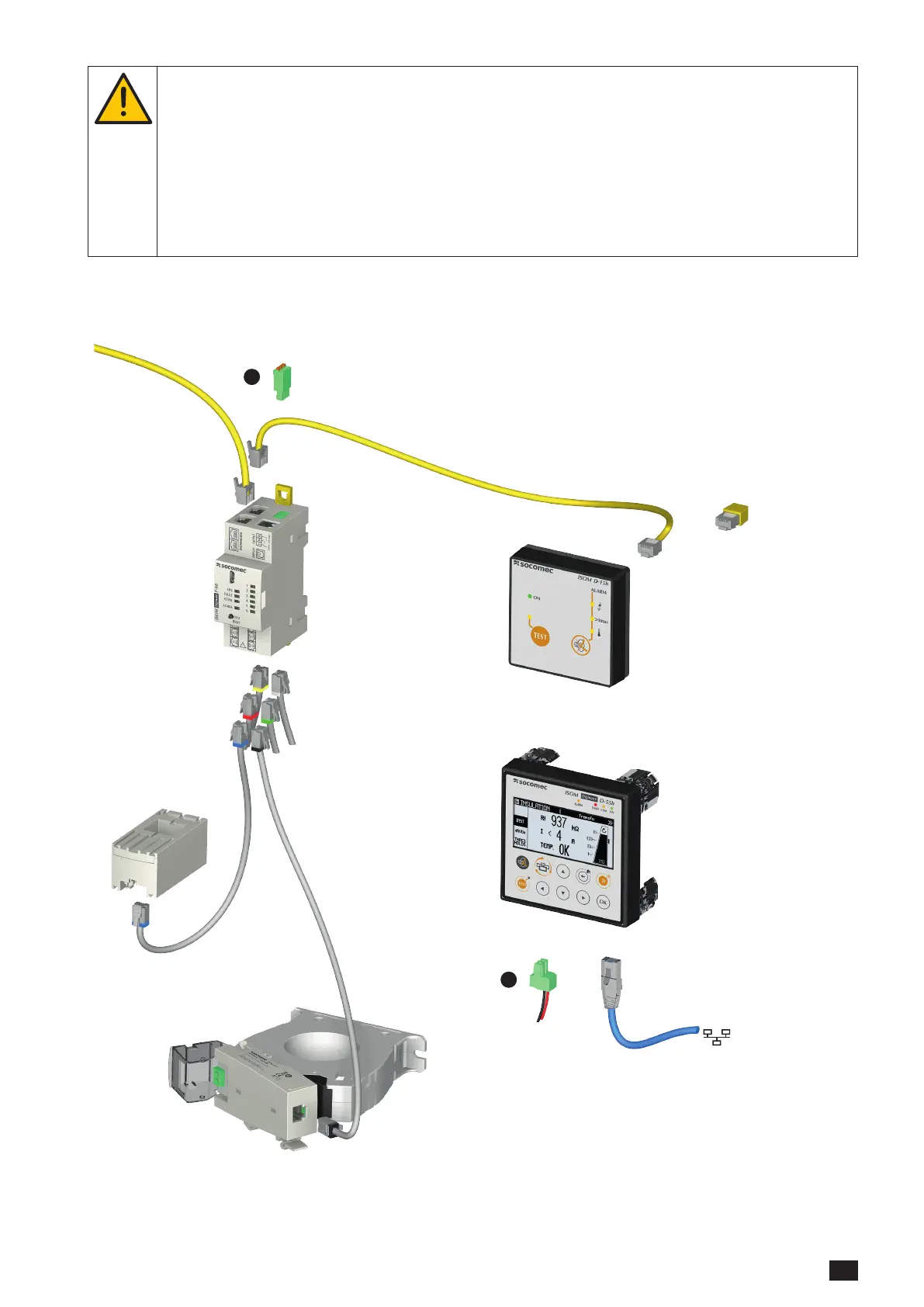

F-60
Alert notication D-15h
Digiware Bus
terminals
Locating core balance transformers ΔIP + adapter T-15
Current
sensors
Alert notication D-55h (without Digiware link)
INSULATION
FAULT-LOCATING
DEVICE
ALERT NOTIFICATION
DISPLAY FOR
SURGERIES (ONLY
AVAILABLE WITH
L-60h)
ETH
1
9
