4. Hangtheinverteronthebracket(seeFigure12):Lifttheinverterfromthesides,orholditatthetop
andbottomoftheinvertertolifttheunitintoplace.DonotliftholdingtheStorEdgeConnection
Unitasitmaybedamaged.
5.
Alignthetwoindentationsintheinverterenclosurewiththetwotriangularmountingtabsofthe
bracket,andlowertheinverteruntilitrestsonthebracketevenly.

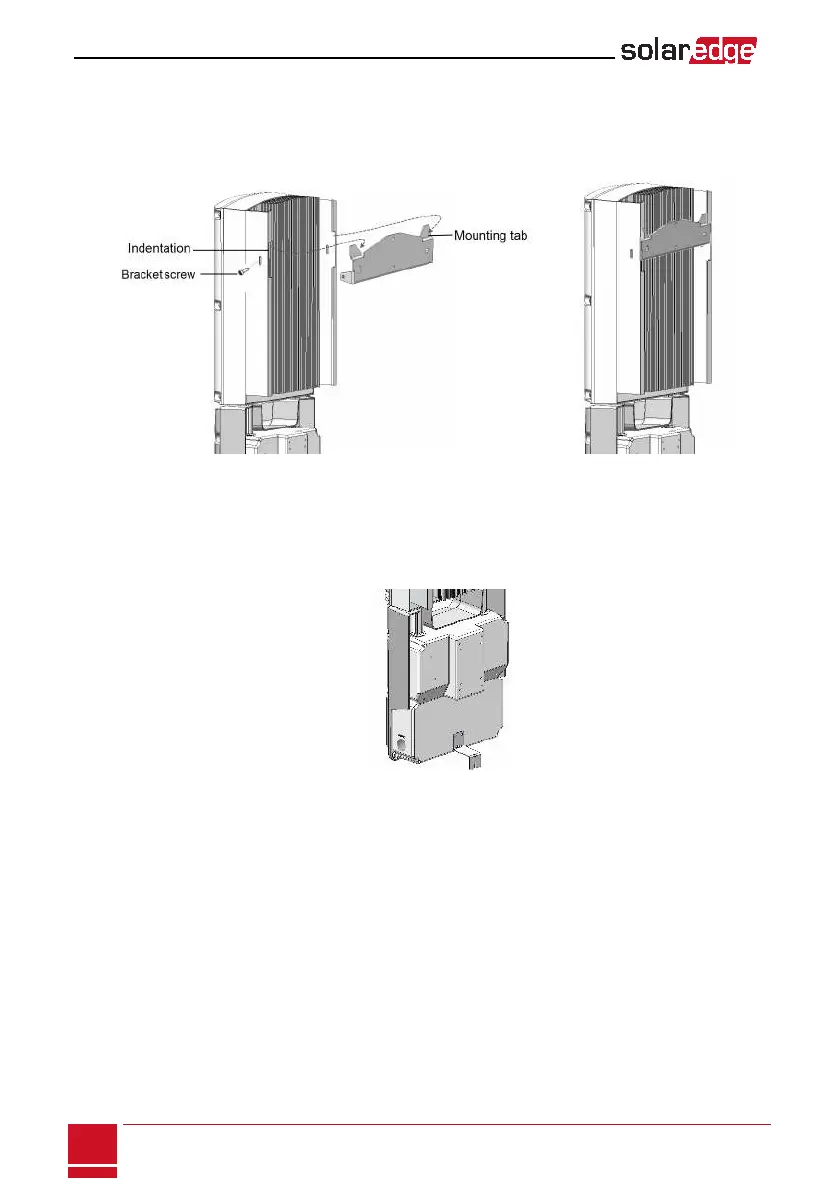

Figure 12: Hanging the inverter on the bracket
6.
SecuretheStorEdgeConnectionUnitbrackettothewall:
l MarkthelocationofthebracketscrewfortheStorEdgeConnectionUnitanddrillthehole.
l Fastenthebracketusingastandardbolt.
l
Verifythatthebracketisfirmlyattachedtothemountingsurface.
Figure 13: StorEdge Connection Unit bracket
7. Insertthetwosuppliedscrewsthroughtheouterheatsinkfinonbothsidesoftheinverterandinto
thebracket(seeFigure12).Tightenthescrewswithatorqueof4.0N*m/2.9lb.*ft.
8. Removetheinvertercover:Opentheinvertercover’ssixAllenscrewsandcarefullypullthecover
horizontallybeforeloweringit.
SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
26
Mounting the Inverter
