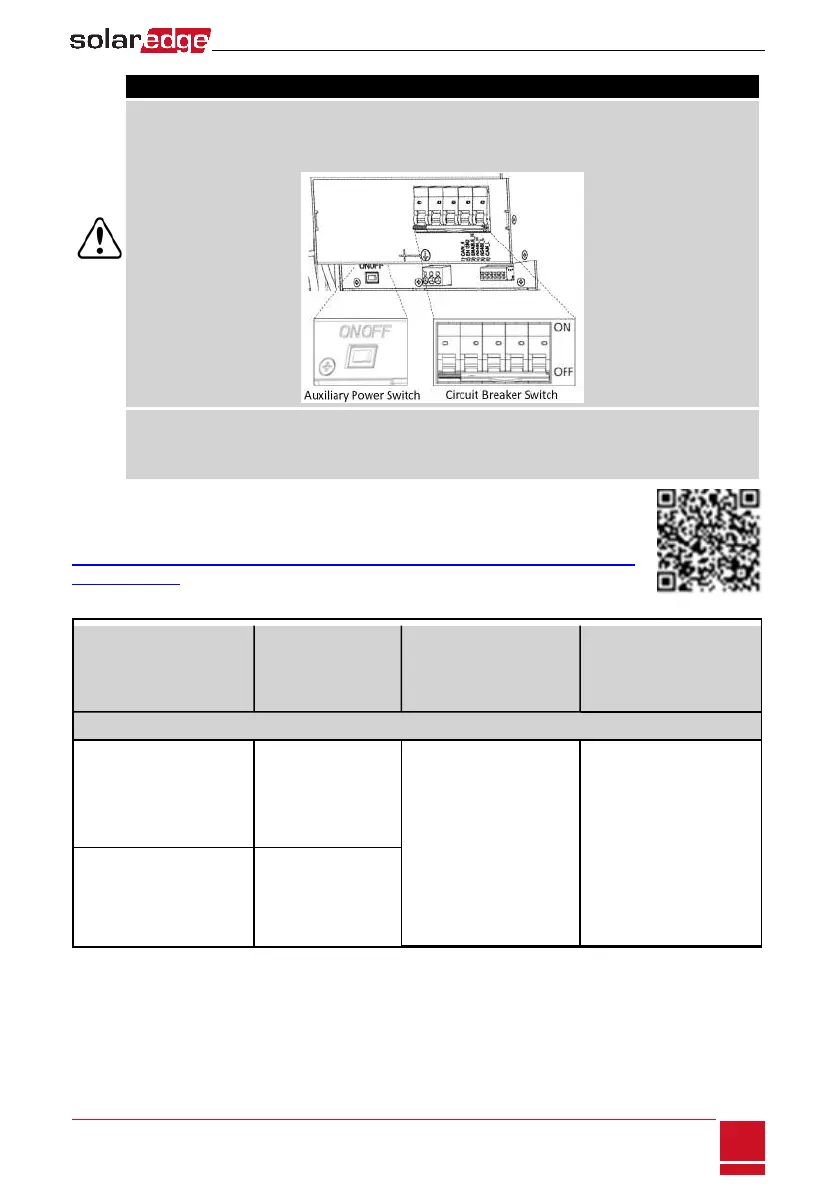

WARNING!
ThebatteryshouldbepoweredOFFbeforeandduringwiring.TurnOFF:
l The auxiliary power supply switch
l The circuit breaker switch
Labatteriedoitêtreétteinteavantetpendantlecâblage.Fermer:
l Lecommutateurd'alimentationauxiliaire
l Lecommutateurducoupeur
Thefollowingtable,andFigure21detailcabletypesandconnectionsofonebattery(LG-
chemResu10H).Foradditionalbatterytypesandconnectionoptions,refertoAdditional
BatteryConnectionsonpage104or
http://www.solaredge.com/sites/default/files/storedge_inverter_wiring_and_onsite_
checklist_na.pdf.Preparecablesandconnectasdescribedinthefollowingtable:
StorEdge
Connection Unit
connection
LG Chem
RESU10H
battery
connection
Connection method
to the
StorEdge Connection
Unit
Recommended cable
type
(min-max AWG)
DC
BAT + terminal block DC+
o
Insert a flat blade
screwdriver into the
square opening at the top
of the terminal block and
press to open clamp
mechanism.
o
Insert the wire into the
round opening and
release the screwdriver
to spring back and clamp
the wire.
DC cable 10 AWG (10-14
AWG), 600V insulated.
BAT-terminalblock
DC-
Chapter 5: StorEdge Inverter Connections
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
35
