57

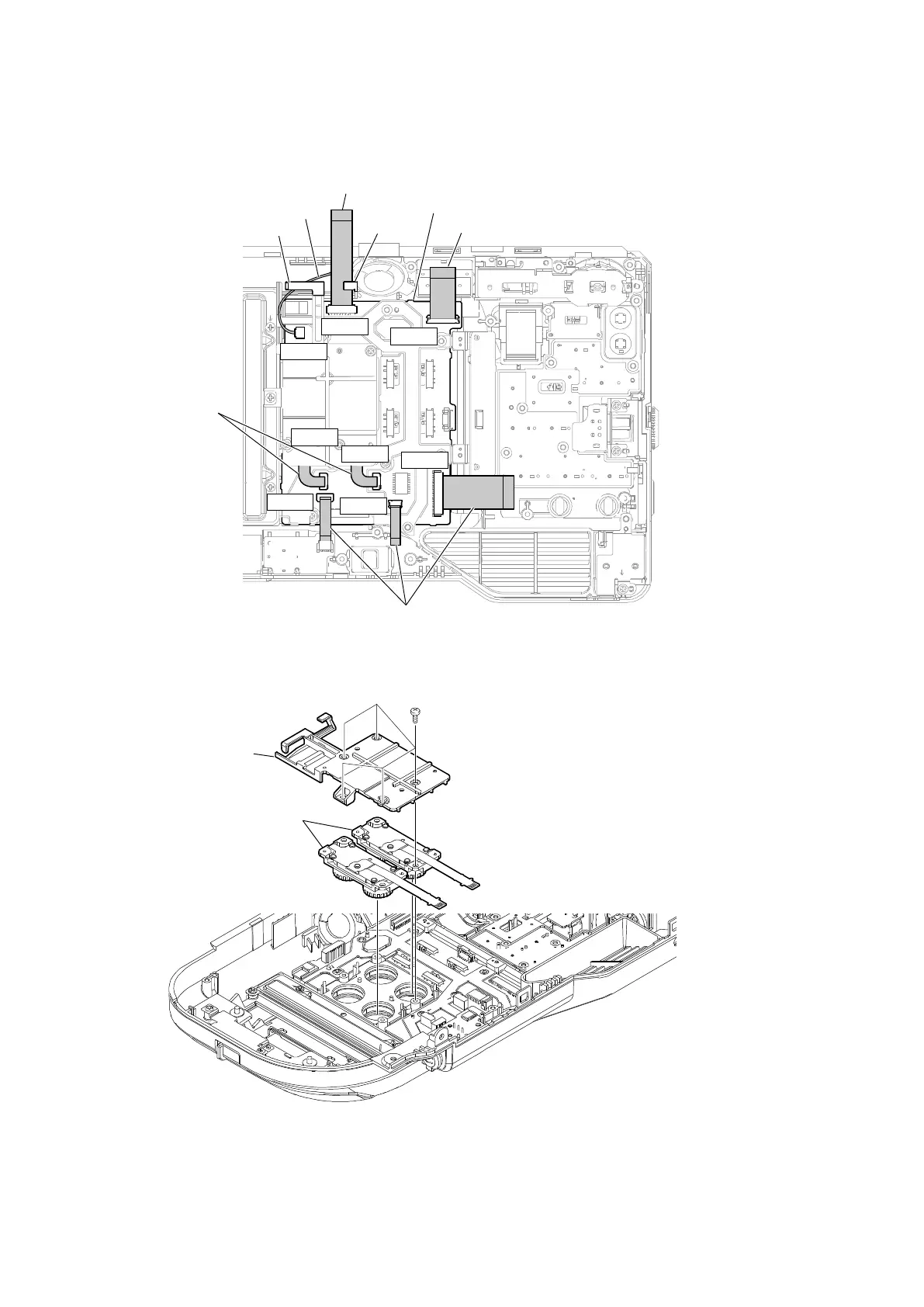

5. Disconnect the harness from the connector (CN8401) on the KSW-72 board.
6. Release the harness and the flexible flat cable from the two hooks.
7. Disconnect the four flexible flat cables from the connectors (CN8005, CN8007, CN8008, CN8402) on the KSW-72 board.
8. Disconnect the flexible boards from the two connectors (CN8101, CN8103) on the KSW-72 board.
9. Remove the five screws, and then remove the audio magnet holder and the two control switch blocks (AU95700).
KSW-72 board
Flexible flat cable
Flexible flat cable
Hook
Flexible flat cables
Flexible boards
Hook
CN8401
CN8005
CN8007
CN8008
CN8010
CN8101
CN8402
CN8103
Harness
PTP2 x 5
Audio magnet holder
Control switch blocks
(AU95700)
To Next Page
