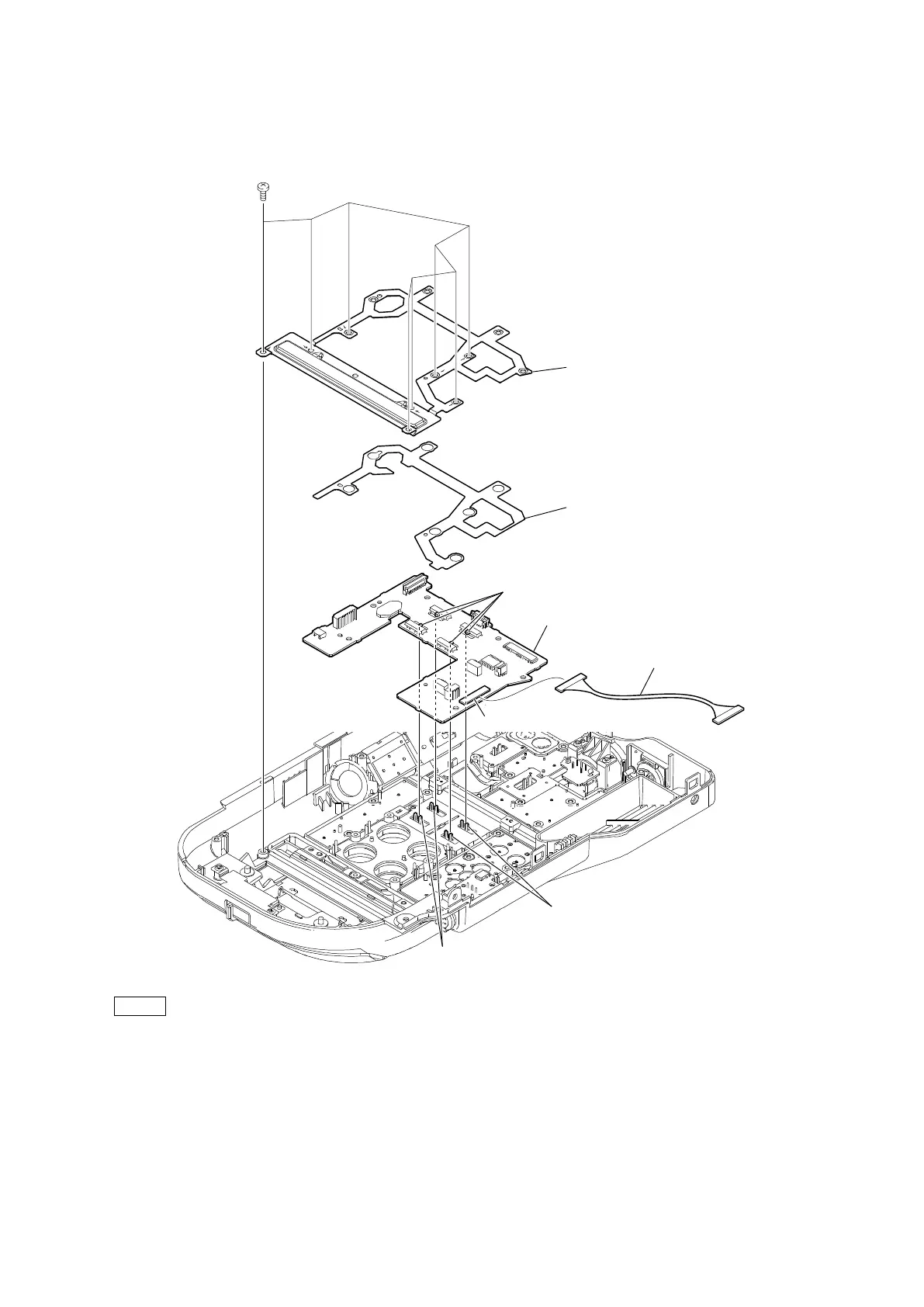

10. Remove the eight screws, and then remove the inside rear plate.
11. Remove the KSW insulation sheet and the KSW-72 board.
12. Disconnect the fine-wire coaxial cable from the connector (CN8003) on the KSW-72 board.
Note
• At the time of the installation, tighten the screws in the following sequence: Screw (a), other seven screws.
• At the time of the installation, align the switches with the levers.
13. Install the removed parts by reversing the steps of removal.
PTP2 x 5
(a)
Inside rear plate
KSW insulation sheet
KSW-72 board
CN8003
Levers
Levers
Switches
Fine-wire coaxial cable
