64 Chapter 7: Replacement Procedures

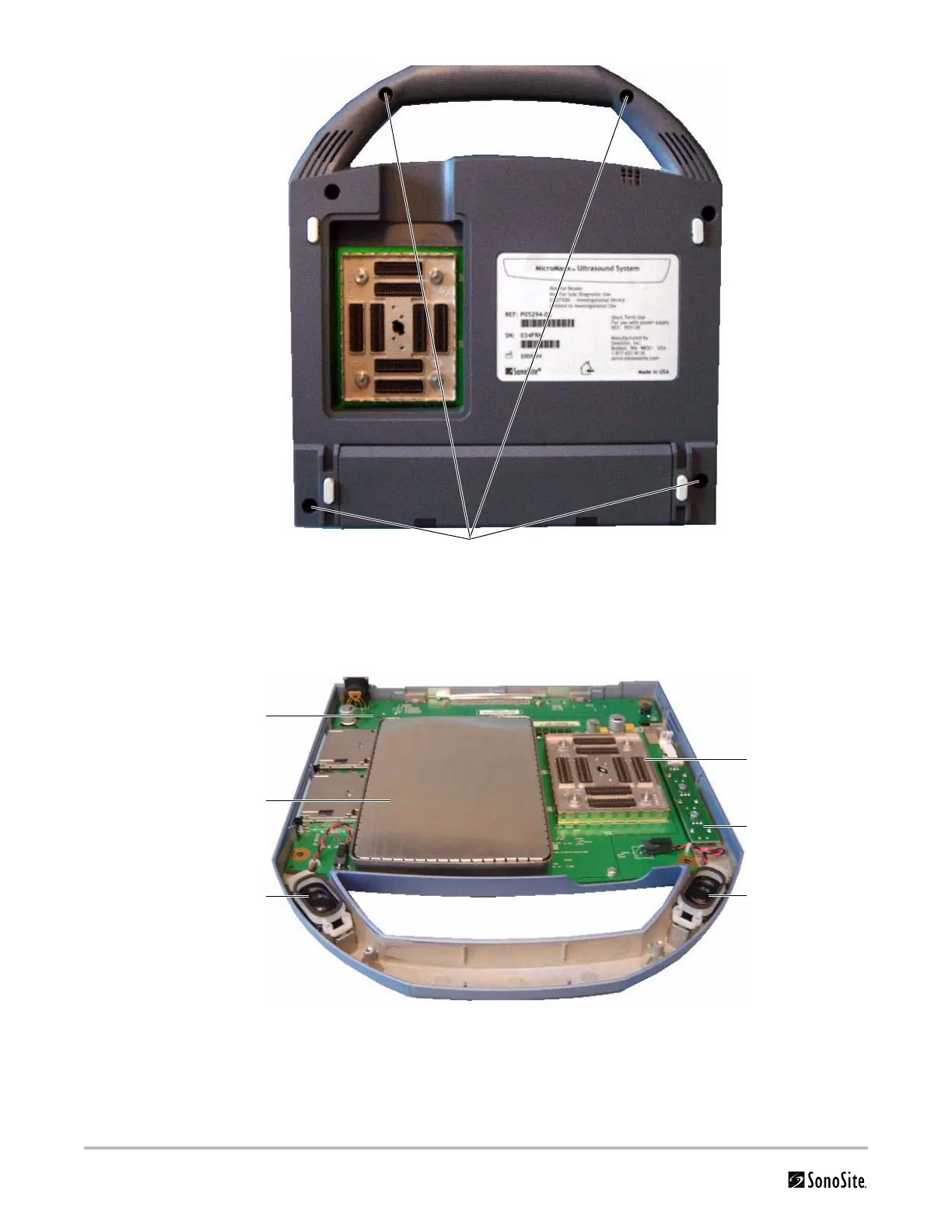

Figure 7.6 Bottom Screws
3 Turn the system over and remove the top enclosure from the main PCBA. This exposes all of
the replaceable parts for the main system per Figure 7.7.
Figure 7.7 System Components
Screws (4)
Nest frame
assembly
TGC assembly
SpeakerSpeaker
Power supply
Main PCBA
