4 Chapter 1: Introduction
Introduction

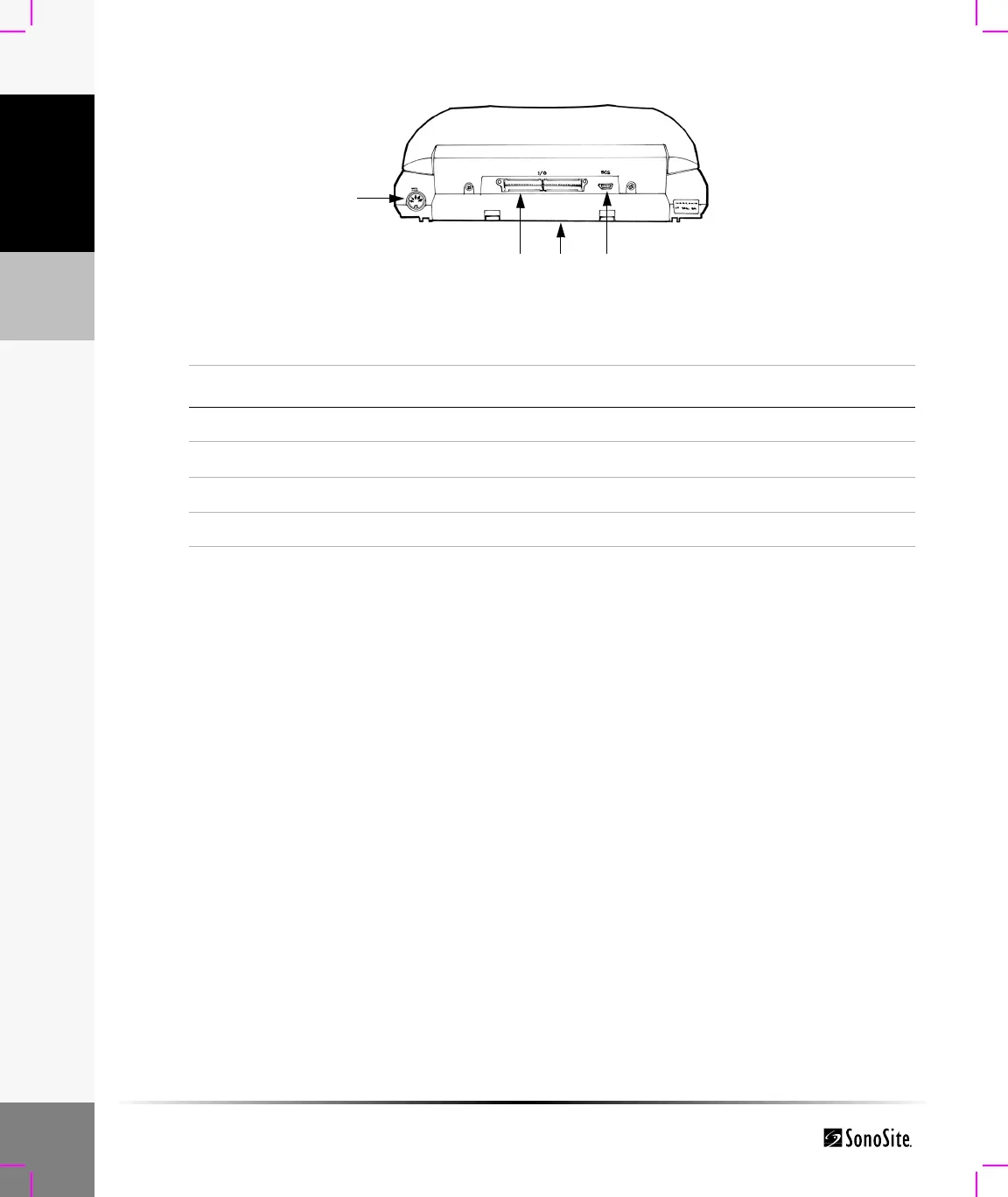

Figure 2 TITAN System Back View
The TITAN system is a portable, software-controlled, ultrasound system using all-digital
architecture. The system is used to acquire and display high-resolution, real-time ultrasound
images: 2D, color power Doppler (CPD), directional color power Doppler (DCPD), Color Doppler
(Color), Tissue Harmonic Imaging (THI), M Mode, pulsed wave (PW) Doppler, and continuous
wave (CW) Doppler. The system has cine buffer, image zoom, labeling, biopsy, measurements,
calculations, a USB connection for image transfer, image storage, image review, printing, recording,
and the ability to archive Doppler with audio output to a videotape.
Currently, the system supports the following broadband transducers:
• C8/8-5 MHz 8 mm microcurved array
• C11/8-5 MHz 11 mm microcurved array
• C15/4-2 MHz 15 mm microcurved array
• C60/5-2 MHz 60 mm curved array
• HST/10-5 MHz 25 mm linear array
• ICT/8-5 MHz 11 mm intracavitary array
• L25/10-5 MHz 25mm linear array
• L38/10-5 MHz 38 mm linear array
System accessories include the following: TITAN mobile docking system, TITAN MDS Lite, TITAN
mini-dock, Triple Transducer Connect, a power supply, a battery, ECG cable, video and printer
cables, SiteLink Image Manager 2.2 software, and DICOM connectivity. See the TITAN Accessory
User Guide for information on the accessories.
1
3 42
Table 2: System Back Connectors
Number Feature
1 DC input connector
2 I/O connector
3Battery
4ECG connector
