16 Chapter 2: Getting Started
Getting Started
Screen Layout

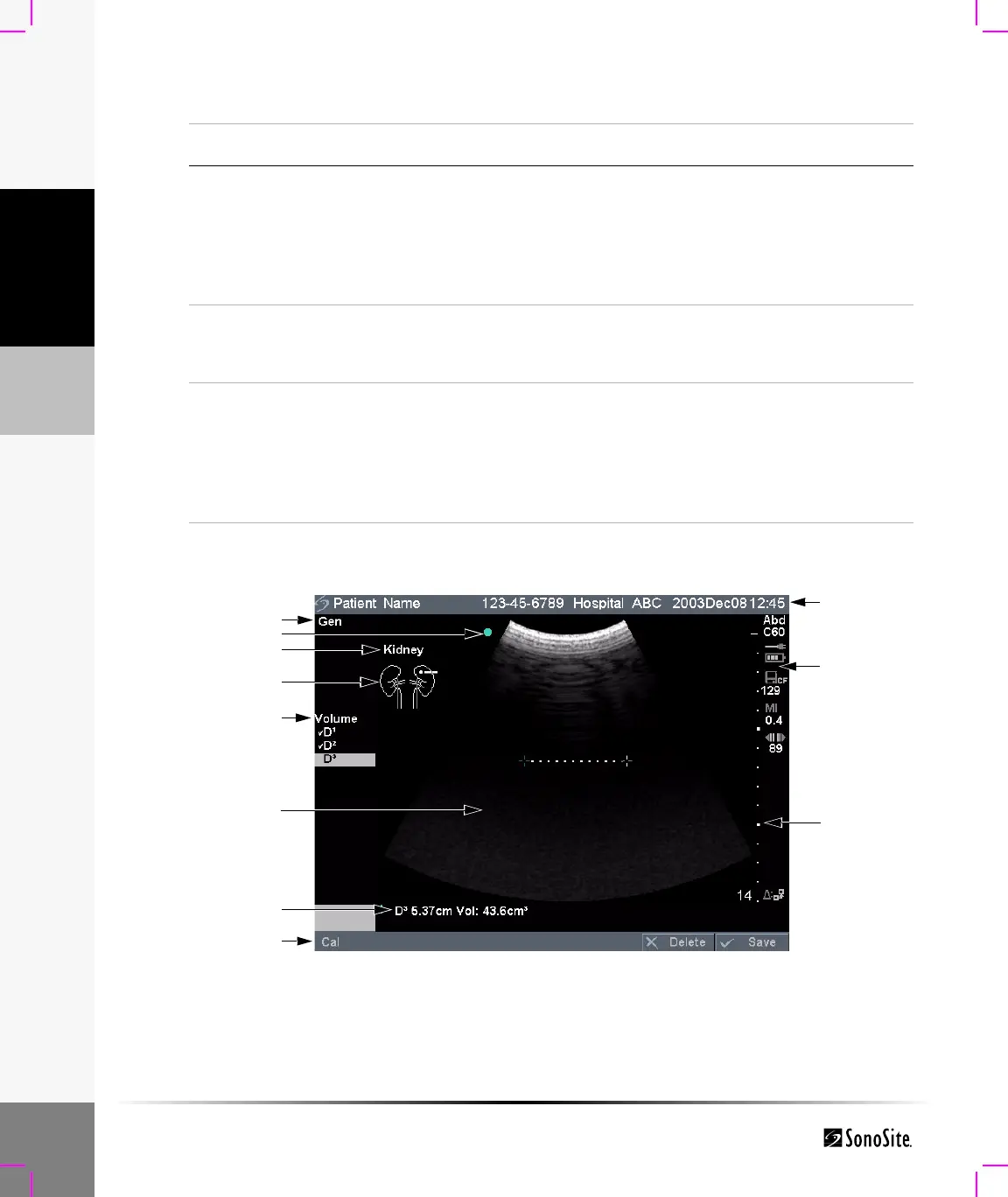

Figure 4 Screen Layout
18 Freeze Freeze Stops the live imaging and displays a frozen
image.
Cine Review images stored in the cine buffer;
(back/forward) back/forward through last-in, first-out sequence.
All mode images can be stored and reviewed in
the cine buffer.
19 Update Toggles between dual and duplex screens and image modes in
M Mode and Doppler, e.g., between 2D Doppler sample line and
Doppler spectral trace.
20 Modes M Mode Turns M Mode on and toggles between M Mode
sample line and the M Mode trace.
Doppler Turns Doppler on and toggles between Doppler
sample line and the Doppler trace.
Color Turns CPD/DCPD/Color on and off.
2D Turns 2D on.
Table 1: System Controls (Continued)
Number System Control Description
1
5
4
6
11
10
9
7
3
8
2
