The mounting screws and mounting surface material are the responsibility of the customer.
Attach the fall prevention wire rope to the ceiling.
Use an M5 (3/16 inch) hexagon socket head cap screw (not supplied) for the mounting screw.

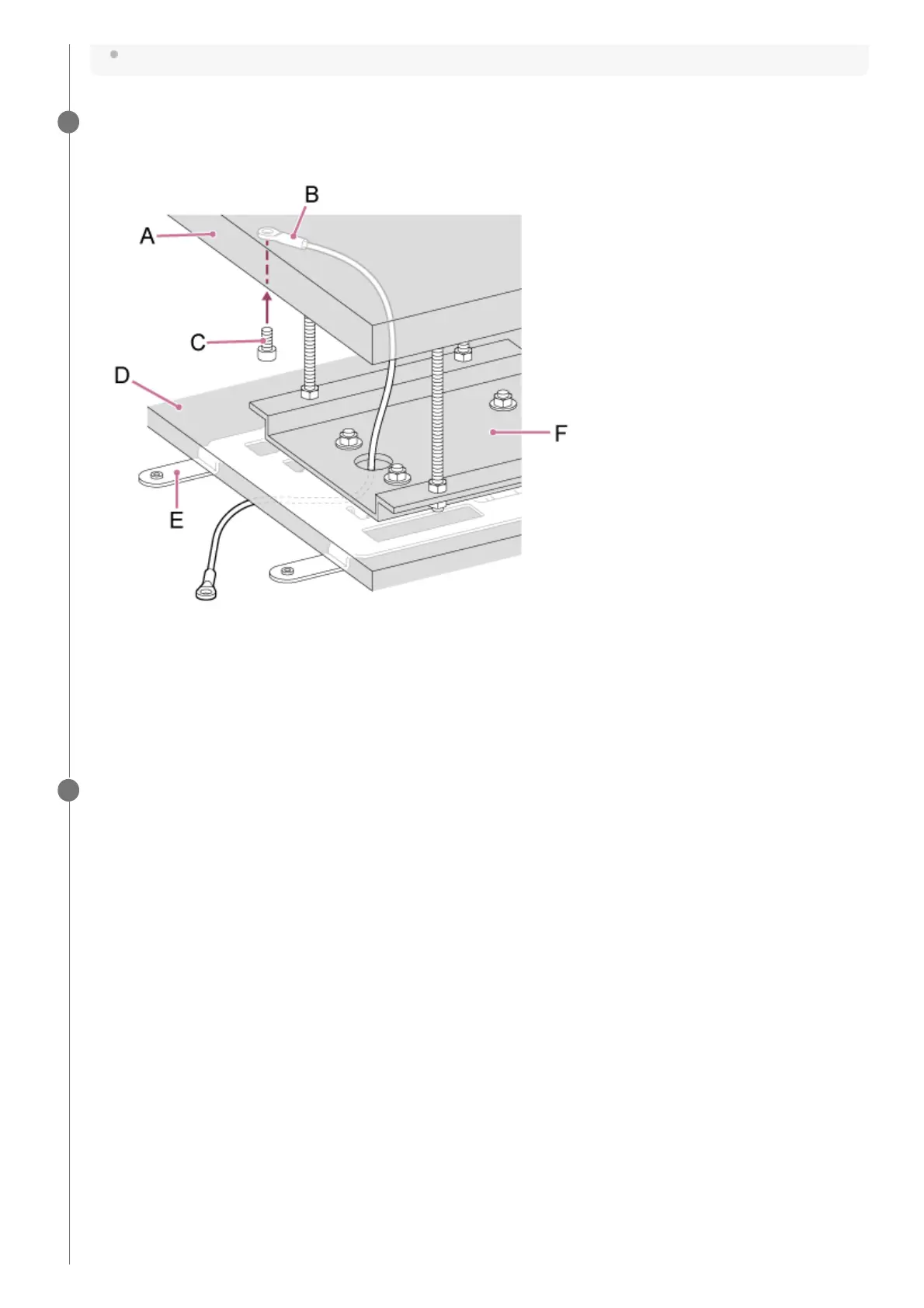

A: Concrete ceiling
B: Wire rope (supplied)
C: M5 (3/16 inch) hexagon socket head cap screws (not supplied)
D: Ceiling board
E: Ceiling bracket (B)
E: Mounting plate (not supplied)
4
Pull the fall prevention wire rope through the hole in the center of ceiling bracket (B), and attach it to the unit.
Route the fall prevention wire rope through the wire rope metal loop of ceiling bracket (A) and attach it securely to the
unit using the supplied screw (M4×8).
5
To Next Page
