6-6-8. C PLAY Check
MO Error Rate Check
Checking Procedure :
1. Load a continuously recorded test disc (MDW-74/GA-1).
(Refer to “6-5. Using the Continuously Recorded Disc”.)
2. Move ./> and display “CPLAY1MODE”(C34).
3. Press the ENTER/YES button and display “CPLAY1MID”.
4. The display changes to “C1 = AD = ”.
5. If the C1 error rate is below 20, check that ADER is 00.
6. Press the MENU/NO button, stop playback, press the Z button,
and test disc.
CD Error Rate Check
Checking Procedure :
1. Load a check disc (MD) TDYS-1.
2. Move ./> and display “CPLAY1MODE”(C34).
3. Press the ENTER/YES button twice and display “CPLAY1
MID”.
4. The display changes to “C1 = AD = ”.
5. Check that the C1 error rate is below 20.
6. Press the MENU/NO button, stop playback, press the Z button,
and the test disc.
6-6-9. Self-Recording/playback Check
Prepare a continuous recording disc using the unit to be repaired
and check the error rate.
Checking Procedure :
1. Insert a recordable test disc (MDW-74/GA-1) into the unit.
2. Move ./> to display “CREC 1MODE”(C35).
3. Press the ENTER/YES button to display the “CREC 1MID”.
4. When recording starts, “ REC ” is displayed, this becomes
“CREC (@@@@)” (@@@@ is the address), and recording
starts.
5. About 1 minute later, press the MENU/NO button to stop con-
tinuous recording.
6. Move ./> to display “CPLAY1MODE”(C34).
7. Press the ENTER/YES button to display “CPLAY1MID”.
8. “C1 =
AD = ” will be displayed.
9. Check that the C1 error becomes below 20 and the AD error
below 2.
10. Press the MENU/NO button to stop playback, and press the Z
button and remove the disc.
330 kΩ
Oscilloscop
e
10pF
BD (MD) board
CN105 pin 4 (TE)
CN105 pin 6 (VC)
6-6-7. Focus Bias Check
Change the focus bias and check the focus tolerance amount.
Checking Procedure :
1. Load a continuously recorded test disc (MDW-74/GA-1).
(Refer to “6-5. Using the Continuously Recorded Disc”.)
2. Move ./> and display “CPLAY1MODE”(C34).
3. Press the ENTER/YES button and display “CPLAY1MID”.
4. Press the MENU/NO button, when “C = AD = ” is
displayed.
5. Move ./> and display “FBIAS CHECK”(C16).
6. Press the ENTER/YES button and display “ / c = ”.
The first four digits indicate the C1 error rate, the two digits
after [/] indicate ADER, and the 2 digits after [c =] indicate the
focus bias value.
Check that the C1 error is below 20 and ADER is below 2.
7. Press the ENTER/YES button and display “ / b = ”.
Check that the C1 error is below 100 and ADER is below 2.
8. Press the ENTER/YES button and display “ / a = ”.
Check that the C1 error is below 100 and ADER is below 2.
9. Press the MENU/NO button, next press the Z button, and
remove the test disc.

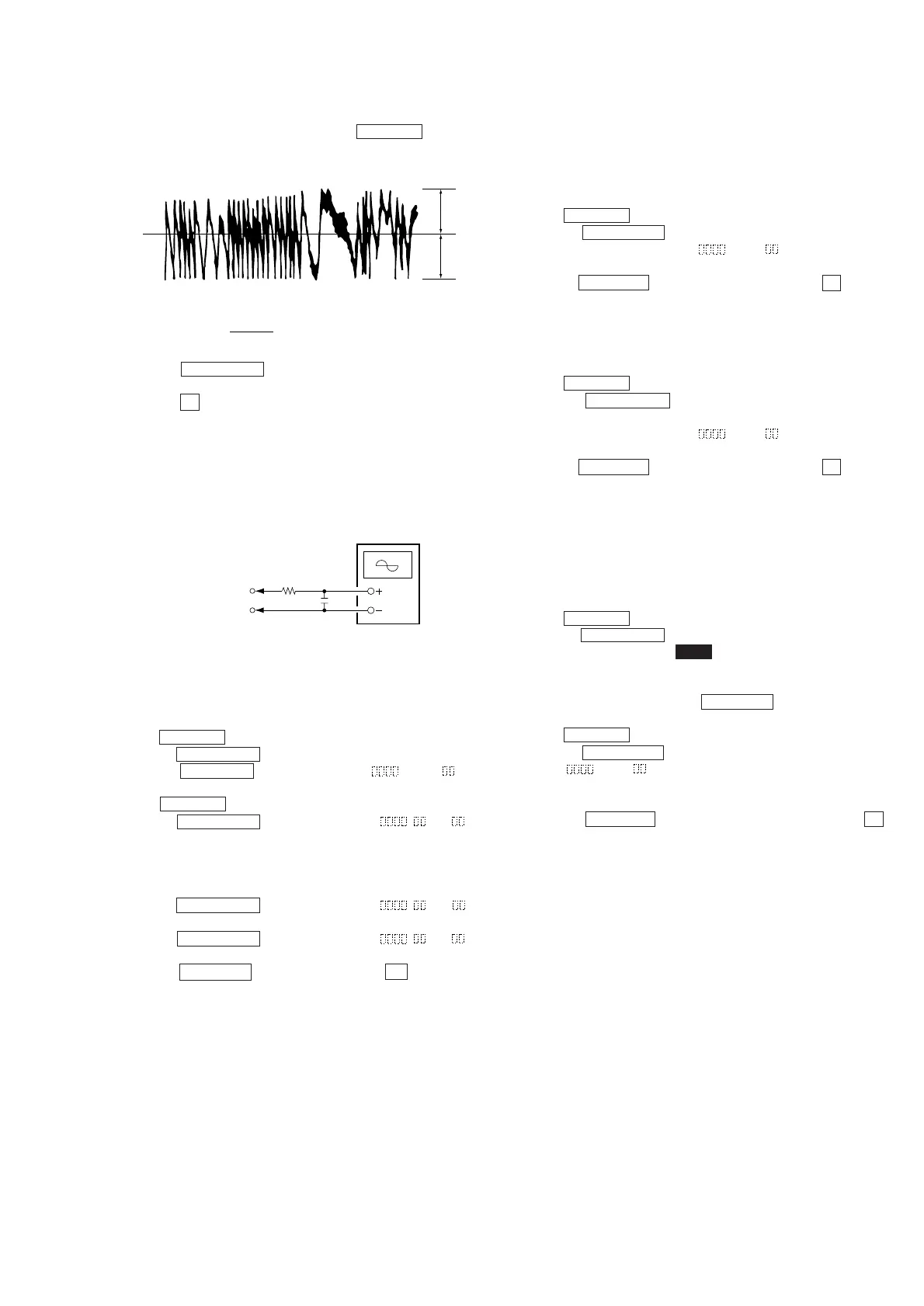

16. Observe the waveform of the oscilloscope, and check that the
specified value is satisfied. Do not move ./> .
(Traverse Waveform)
17. Press the ENTER/YES button and display “EF CD CHECK”
(C15).
18. Press the Z button and remove the check disc (MD) TDYS-1.
Note 1 : MO reading data will be erased during if a recorded disc is
used in this adjustment.
Note 2 : If the traverse waveform is not clear, connect the oscillo-
scope as shown in the following figure so that it can be
seen more clearly.
VC
A
B
Specified value : Below 10% offset value
Offset value (%) = X 100
IA – BI
2 (A + B)
