Sony MHC-V41D Service Manual

MHC-V41D
5

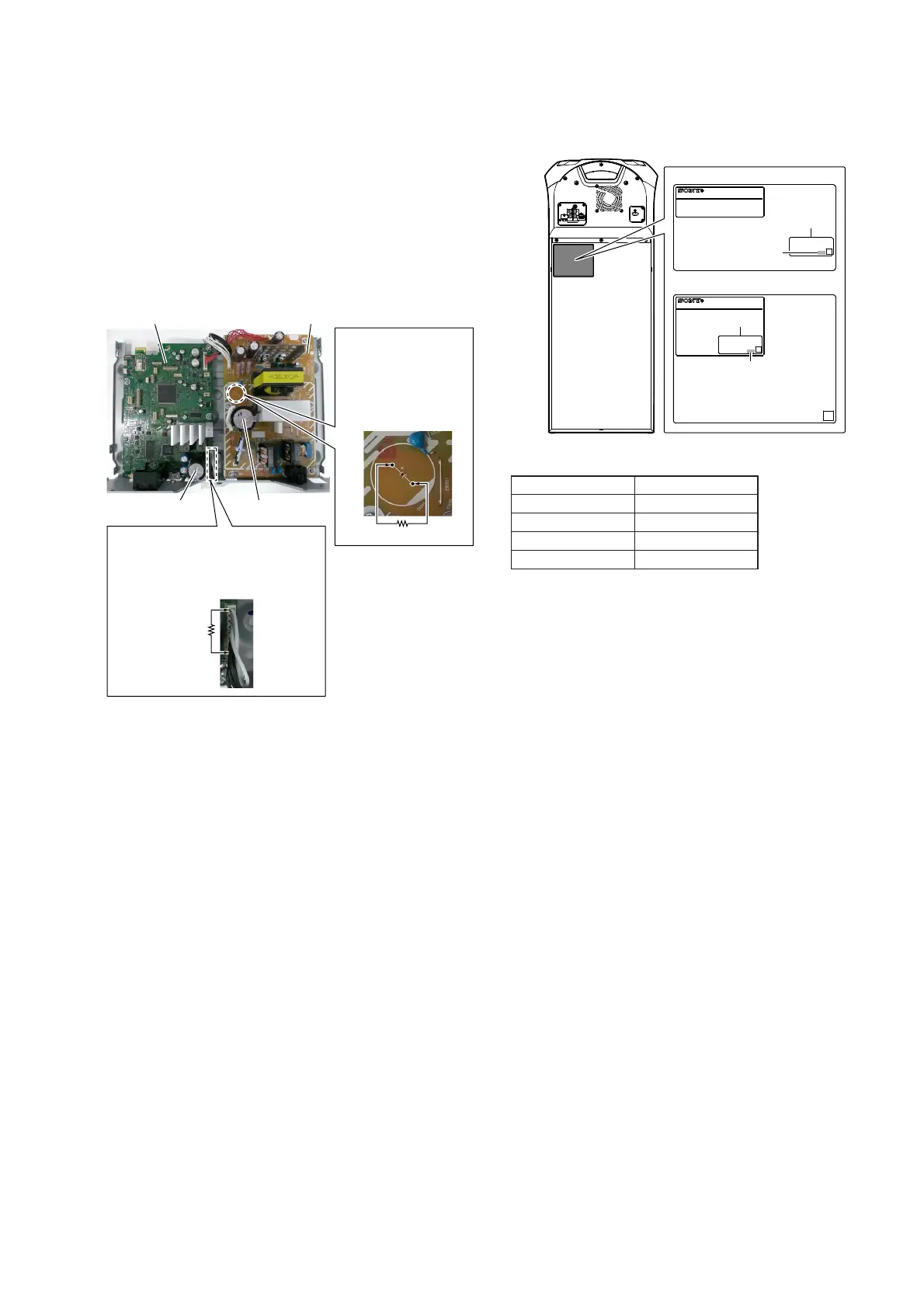

CAPACITOR ELECTRICAL DISCHARGE PROCESSING
When removing the MOTHER board and SMPS board after check-
ing the operation of this unit, be sure to perform the discharge pro-
cessing of C2076 on the MOTHER board and C6302 on the SMPS
board before removing the boards.
When it is removed the boards without performing the discharge
processing and it is shorted the both end of C2076 on the MOTH-
ER board, it might be damaged the DAMP IC.
Perform the discharge processing with referring the fi gure below.
Note: Be sure to discharge using a resistor of 800  or higher.
800 :/2 W
Perform the discharge
processing with
connecting the resistor
to the hole of C6301
that is not mounted
the part.
800 :/2 W
Perform the discharge processing
with connecting the resistor between
PVDD (any one 6 to 9 pin) and PGND
(any one 1 to 5 pin) of CN2007.
– Top view –
MOTHER board
SMPS board
C2076 C6302
MODEL IDENTIFICATION
Distinguish by destination code on the rear side of the main unit.
– Rear view –
AEP, UK
AUS, LA
Destination code
Serial label
Destination code
Serial label
Destination code Destination
AU1 AUS model
CEK UK model
CEL AEP model
LA9 LA model
Note: For detail about the destination, refer to “DESTINATION ABBRE-
VIATIONS” below.
DESTINATION ABBREVIATIONS
The following abbreviations for model destinations are used in this
service manual.
• Abbreviations
AEP : European area (Except for Ireland, UK), East European
area, CIS area (Moldova) and Middle East area (Jordan)
models
AUS : Australian and New Zealand models
LA : Latin American area (Except for Argentina, Brazil) model
UK : UK and Ireland models

Sony MHC-V41D Specifications

General

Cassette deck	No
Product color	Black
Number of decks	1 deck(s)
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Number of microphone inputs	2
Audio decoders	Dolby Digital
RMS rated power	- W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-RW
Playback disc formats	DVD-Video, VCD
Audio formats supported	MP3
Video formats supported	MPEG4, XVID
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Power source	AC
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	308 mm
Width	328 mm
Height	796 mm
Weight	13500 g
