Sony MHC-V41D Service Manual

MHC-V41D
8

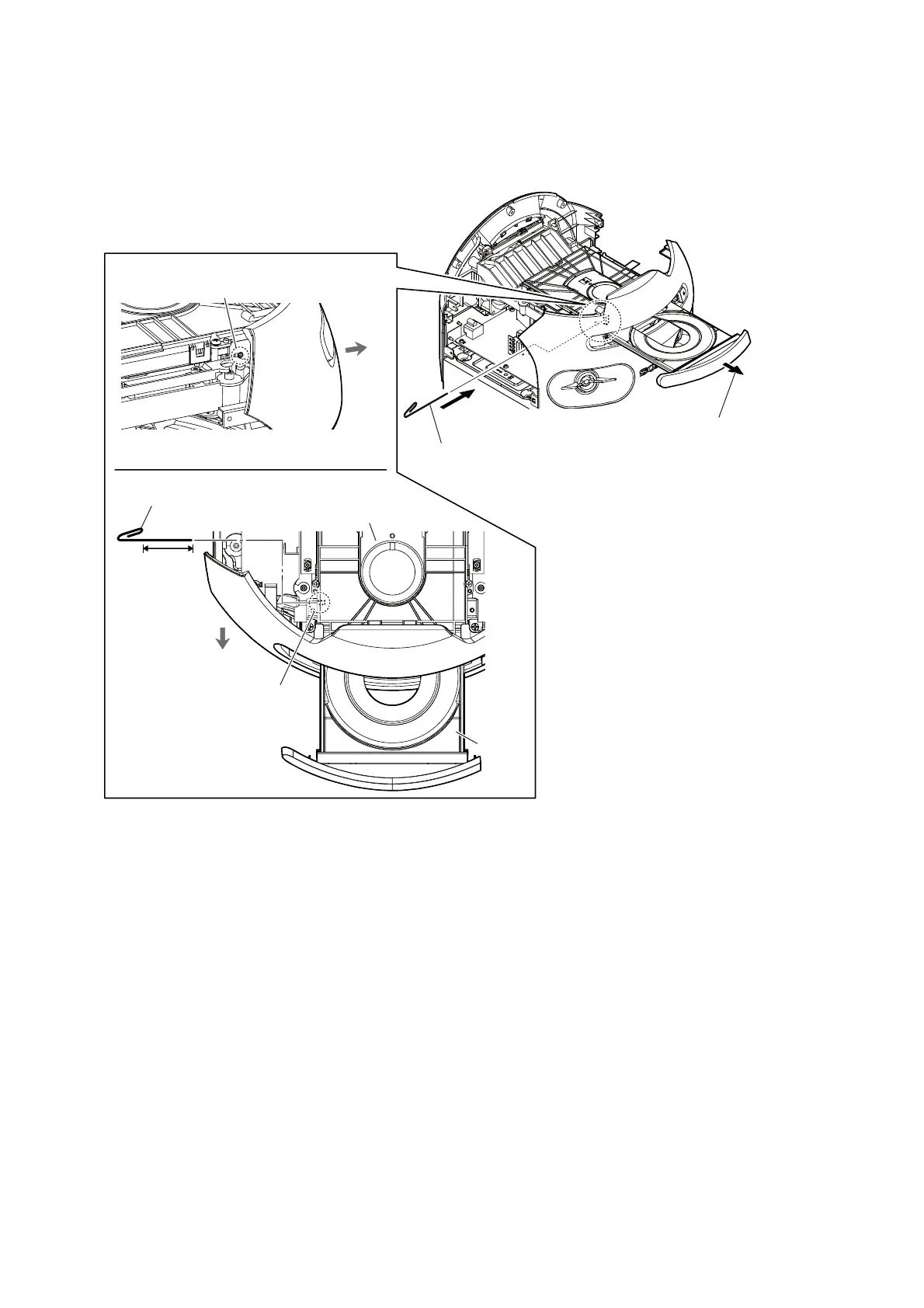

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
Note 1: Refer to “2. DISASSEMBLY” on page 9 or later, after the top panel block is removed, do this work.
Note 2: Please prepare the thin wire (clip etc. processed to the length of 8 cm or more).
2 Pull out the tray
in the
direction of the arrow.
1 Insert the clip etc. in the hole,
and push the lever in the direction
of the arrow.
tray
– Top view –
– Left view –
DVD mechanism deck
hole
thin wire (clip etc. )
8 cm or more
front side
hole
front side

Sony MHC-V41D Specifications

General

Cassette deck	No
Product color	Black
Number of decks	1 deck(s)
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Number of microphone inputs	2
Audio decoders	Dolby Digital
RMS rated power	- W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-RW
Playback disc formats	DVD-Video, VCD
Audio formats supported	MP3
Video formats supported	MPEG4, XVID
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Power source	AC
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	308 mm
Width	328 mm
Height	796 mm
Weight	13500 g
