2.
PERIODIC
CHECK
AND
REPLACEMENT
In order to obtain the best performance from this unit and make
full use of its capabilities, and to extend the life of the unit and
tapes, it is recommended that the following periodic checks and
maintenance be performed.
* The following must be done after every repair regardless of
how many hours the user has operated the machine.
2-1. CLEANING OF ROTATING HEAD DISK
ASSEMBLY
1) Press a chamois cloth (Jig Ref. No. J-9) which has been
dipped in cleaning fluid (Jig Ref. No. J-8) lightly against the
rotating drum assembly, then do the cleaning by slowly
rotating the rotating head disk by hand. (Never try to clean
by using the motor to tum it.)
2) Never try to clean by moving the chamois cloth at a vertical
angle to the head tip. There is a very great danger of
damaging the head tip if this is done.
No. 4 guide No. 5 guide
(TG4) (TGS)
No. 3 guide
(TG3)
FE head
No. 2 guide
(TG2)
No. 1 guide
(TG1)
No. 0 guide
(TGO)
No. 6 guide
(TG6)
2-2. CLEANING OF THE TAPE MOVEMENT
SYSTEM
1) Clean the surfaces which the tape contacts during its
movement (tape guide, drum assembly surface, capstan,
pinch roller, etc.) with a chamois cloth that has been dipped
in cleaning fluid.
2-3. CLEANING THE DRIVE SYSTEM
1) Clean the driving parts with a cloth that been dipped in
cleaning fluid.
ACE head
No. 7 guide (TG7)
Capstan shaft
No. 8 guide
(TG8)
Pinch roller

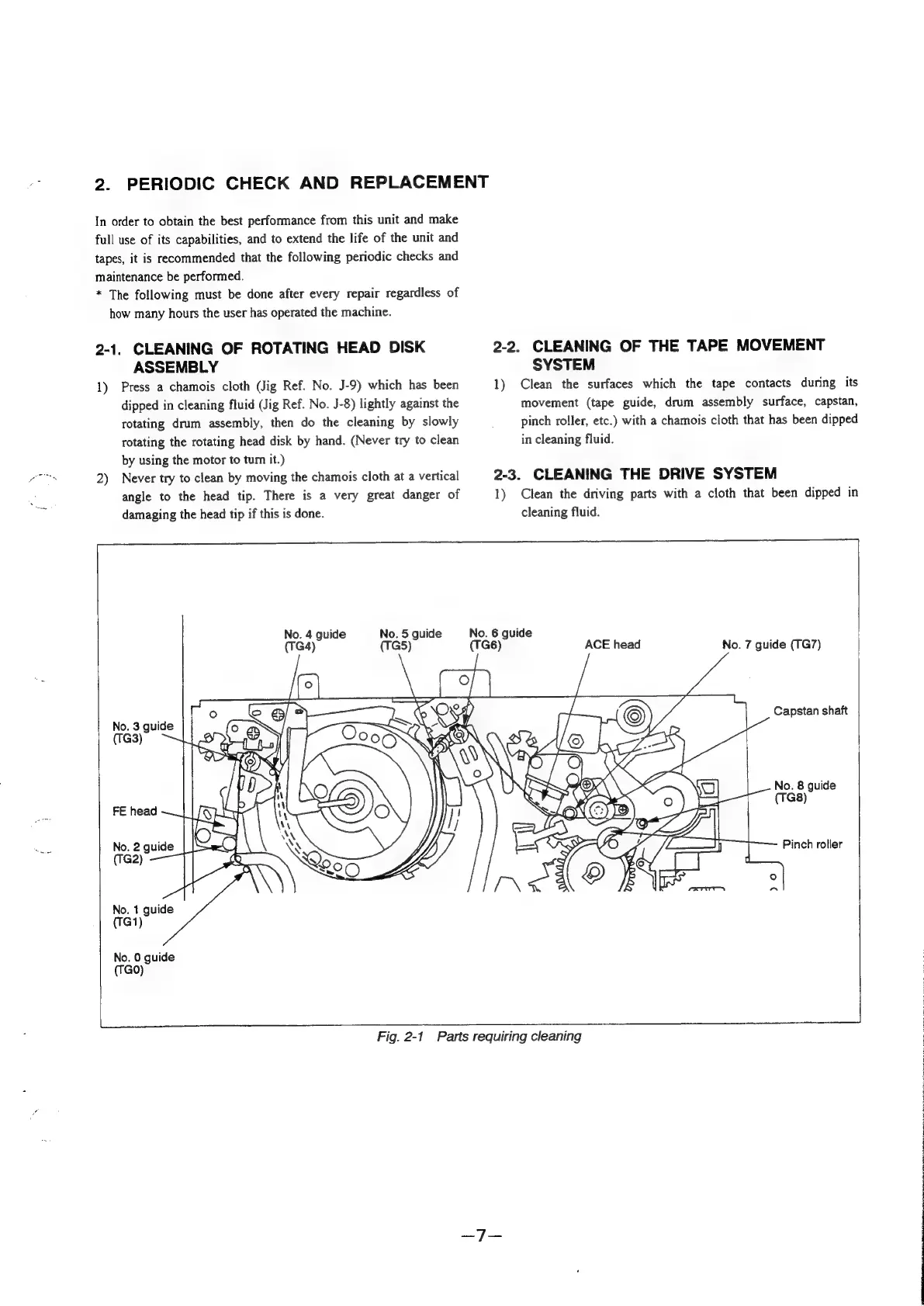

Fig. 2-1 Parts requiring cleaning
