USE THE MACHINE INDOORS OR IN A ROOFED
AREA. PLACE OF INSTALLATION MUST BE
DRY, ADEQUATELY LIT AND IN COMPLIANCE
WITH APPLICABLE SAFETY REGULATIONS.
The location of the machine requires a usable space
as indicated in Fig. 4. The positioning of the ma-
chine must be according to the distances shown.
From the control position the operator is able to
observe all the machine and surrounding area. He
must prevent unauthorized personnel or objects
that could be dangerous from entering the area.
The machine must be fixed on a flat floor surface,
preferably of cement or tiled. Avoid yielding or irregu-
lar surfaces.
The base floor must be able to support the loads trans-
mitted during operation.
This surface must have a strength of at least 500 kg/m².
The depth of the solid floor must be sufficient to guar-
antee that the anchoring bolts hold.
8.2 Lighting
The machine does not require its own lighting for
normal working operations. However, it must be used
in an adequately lit environment.
In case of poor lighting use lamps having total power
800/1200 Watt.
1296-M010-0_P
Space s.r.l.
ER232R - ER234R - ER236R - ER238R - ER238RFM - ER248R - ERP248R
8.1 Working area
600
600
200
600
600
200
600
600
200

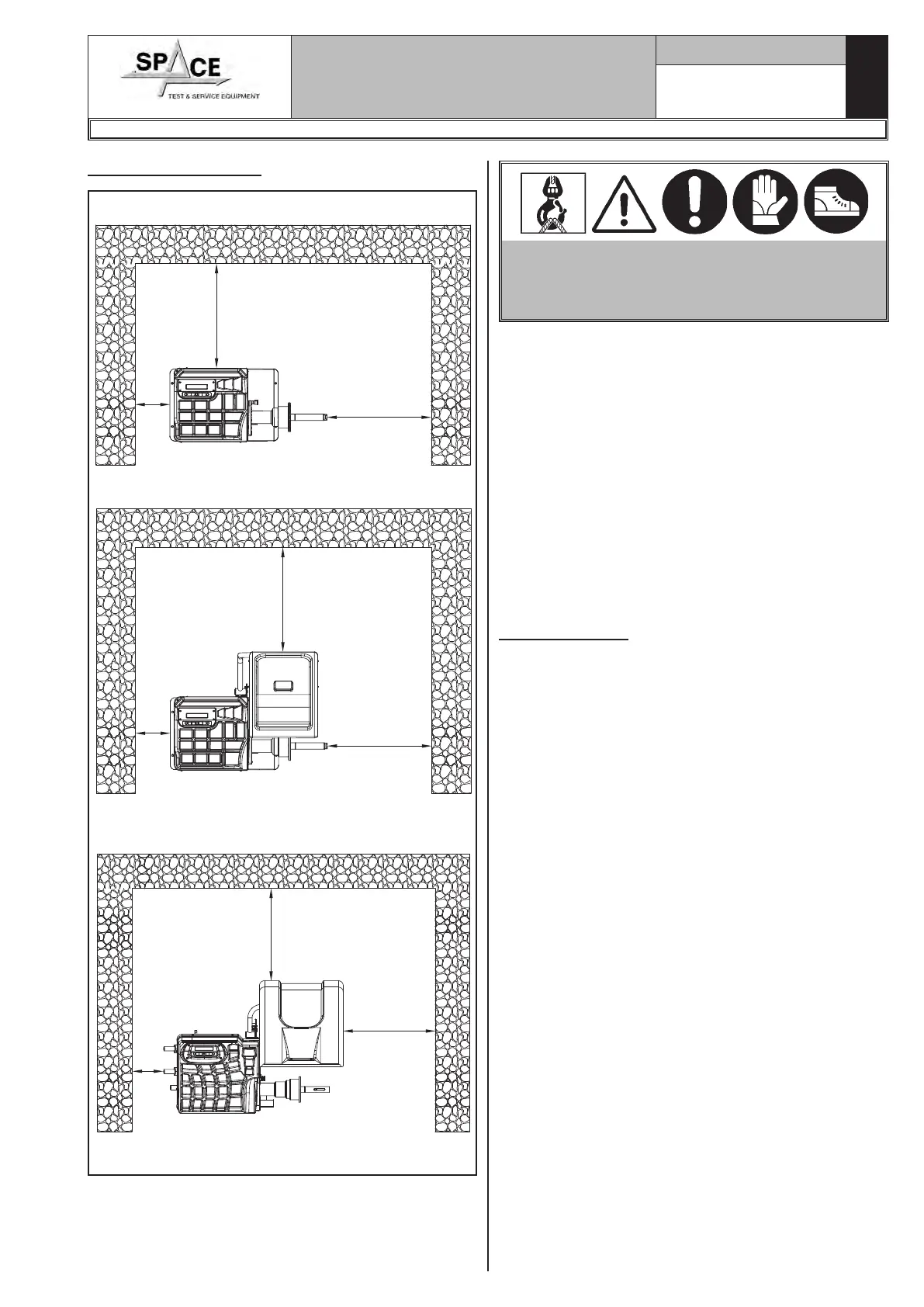

Fig. 4
For ER234R - ER238R - ER238RFM models
For ER248R - ERP248R models
For ER232R - ER236R models
