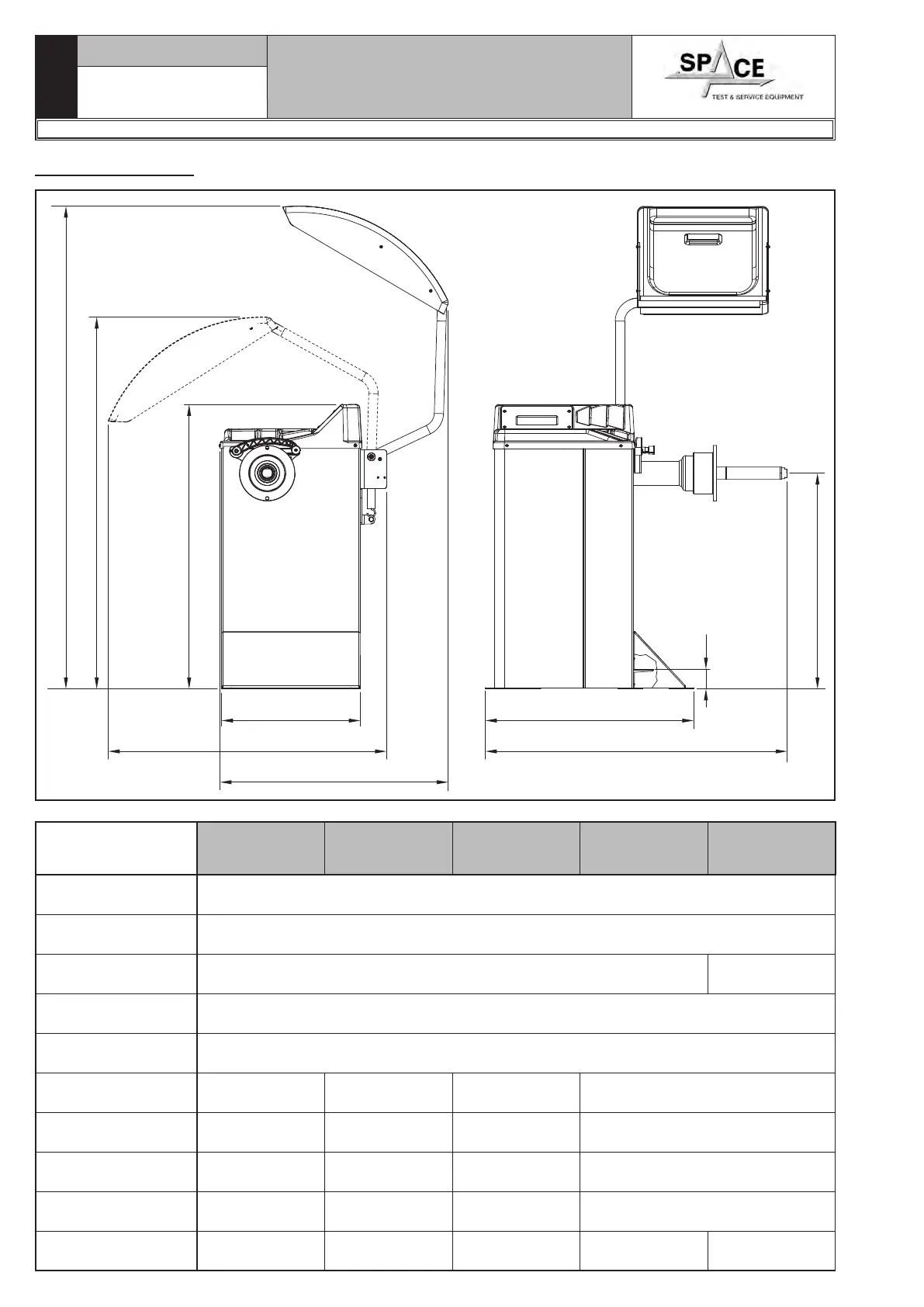

24.1 Dimensions
1296-M010-0_P
Space s.r.l.
ER232R - ER234R - ER236R - ER238R - ER238RFM - ER248R - ERP248R
ER232R ER234R ER236R ER238R ER238RFM
A (mm) 923
B (mm) 460
C (mm) 676 510
D (mm) 979
E (mm) 700
F (mm) - 1566 - 1566
G (mm) - 1206 - 1206
H (mm) - 901 - 901
I (mm) - 743 - 743
L (mm) - - - - 96
A
B
C
D
E
F
G
H
I
L
Fig. 100
