Space ER232R - Fitting and Removal of the Pneumatic Mandrel on the Flange

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 15 of 58
2. Press the brake's pedal and, at the same time, tighten
the internal mandrel as far as it will go using the
wrench provided (Fig. 10).
Fig. 10
3. Fit the external mandrel and tighten it manually
(Fig. 11).
Fig. 11
1296-M010-0_P
Space s.r.l.
ER232R - ER234R - ER236R - ER238R - ER238RFM - ER248R - ERP248R

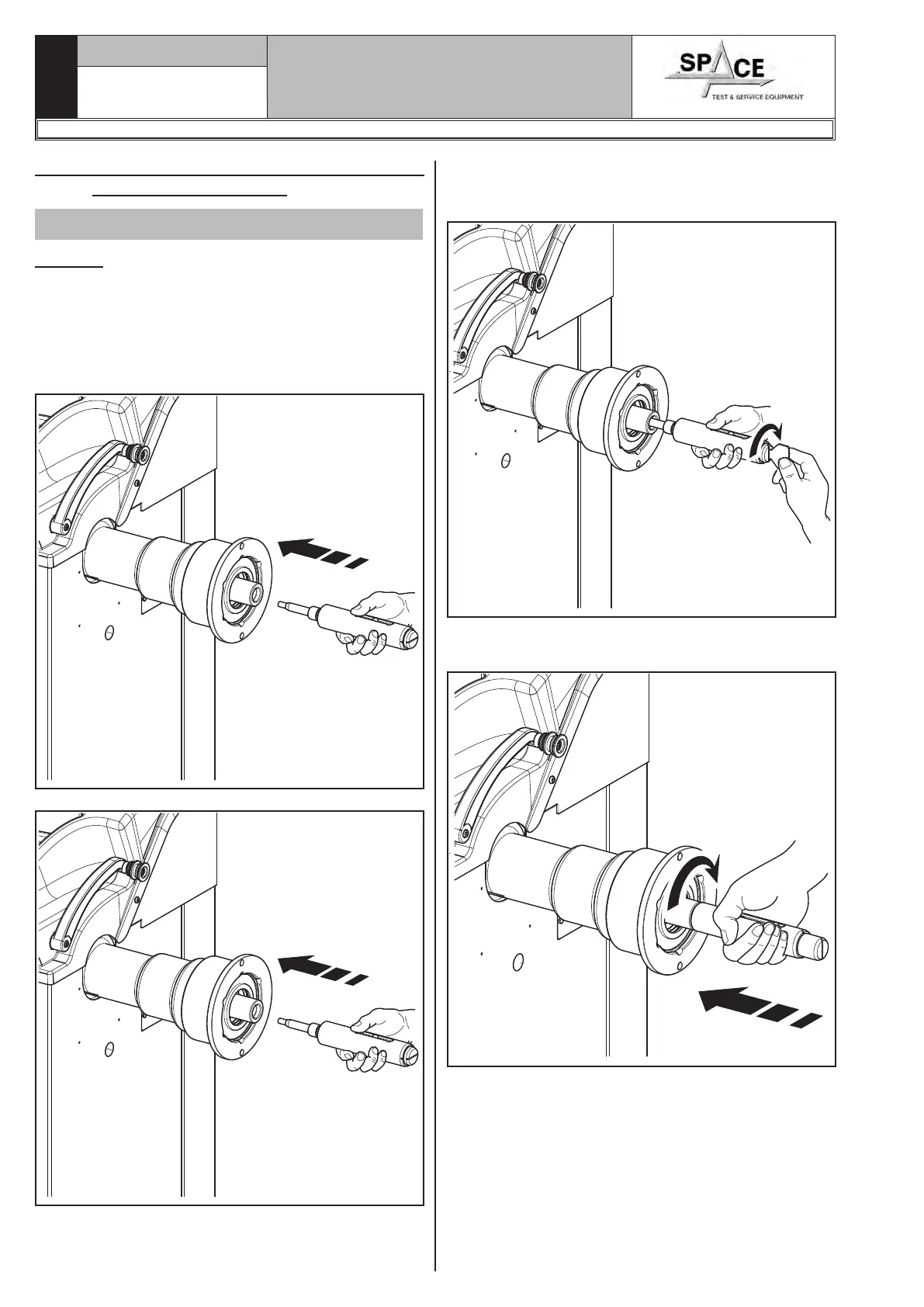

9.3.2 Fitting and removal of the pneumatic
mandrel on the flange
Only for ERP248R models
FITTING
1. After making power and air connections switch on
the machine (the pneumatic mandrel always opens
when the machine is switched on). Switch the ma-
chine off. Fit the internal mandrel on the flange
and tighten it with the wrench provided (Fig. 8
and Fig. 9).
Fig. 8
Fig. 9
