INSTRUCTION, USE AND
MAINTENANCE MANUAL

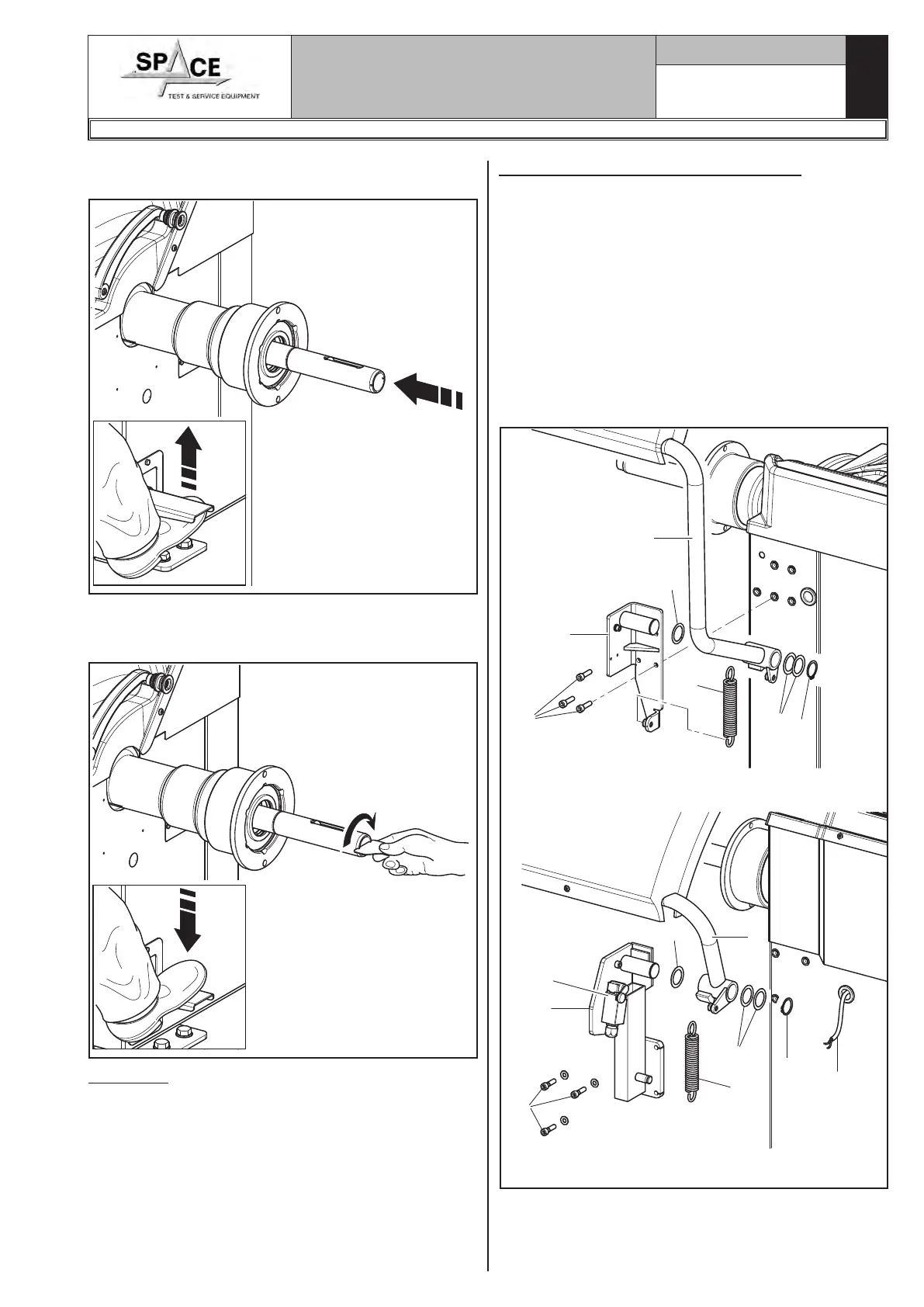

4. Close the pneumatic mandrel by means of the pedal
to access the key socket (Fig. 12).
Fig. 12
5. Press the brake pedal and at the same time block
the external mandrel using the wrench supplied
(Fig. 13).
Fig. 13
REMOVAL
• Close the pneumatic mandrel by means of the pedal
to access the key socket (Fig. 12).
• Press the brake pedal and at the same time release
the external mandrel by using the wrench provided
(Fig. 13).
• Remove the external mandrel, open the pneumatic
mandrel by means of the pedal provided and loosen
the internal mandrel using the special wrench
(Fig. 10).
1296-M010-0_P
Space s.r.l.
ER232R - ER234R - ER236R - ER238R - ER238RFM - ER248R - ERP248R
9.3.3 Fitting the protection guard
1. Screw the 3 screws (Fig. 14 ref. 1) to the guard sup-
port (Fig. 14 ref. 2) in the special inserts placed
on the rear side of the machine, by means of an
Allen wrench. Mount the protection guard (Fig. 14
ref. 3) to the support (Fig. 14 ref. 2) interposing
the washers (Fig. 14 ref. 4 and 5) and block it
through the seeger (Fig. 14 ref. 6).
2. Fit the spring (Fig. 14 ref. 7) between the base of
the support and the anchor pin.
3. Connect the 2 wires (Fig. 14 ref. 8) from inside the
unit to the normally open (NO) microswitch contacts
(Fig. 14 ref. 9).
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
Fig. 14
Valid for ER234R - ER238R - ER238RFM
models
Valid for ER248R - ER248RP models
