Space ER232R - Page 56

GB
Page 56 of 58
INSTRUCTION, USE AND
MAINTENANCE MANUAL
1296-M010-0_P
Space s.r.l.
ER232R - ER234R - ER236R - ER238R - ER238RFM - ER248R - ERP248R
ER248R ERP248R
A (mm) 1075
B (mm) 540 558
C (mm) 723
D (mm) 1172 1167
E (mm) 718.5 721
F (mm) 1849
G (mm) 1284
H (mm) 1053
I (mm) 935
L (mm) 96

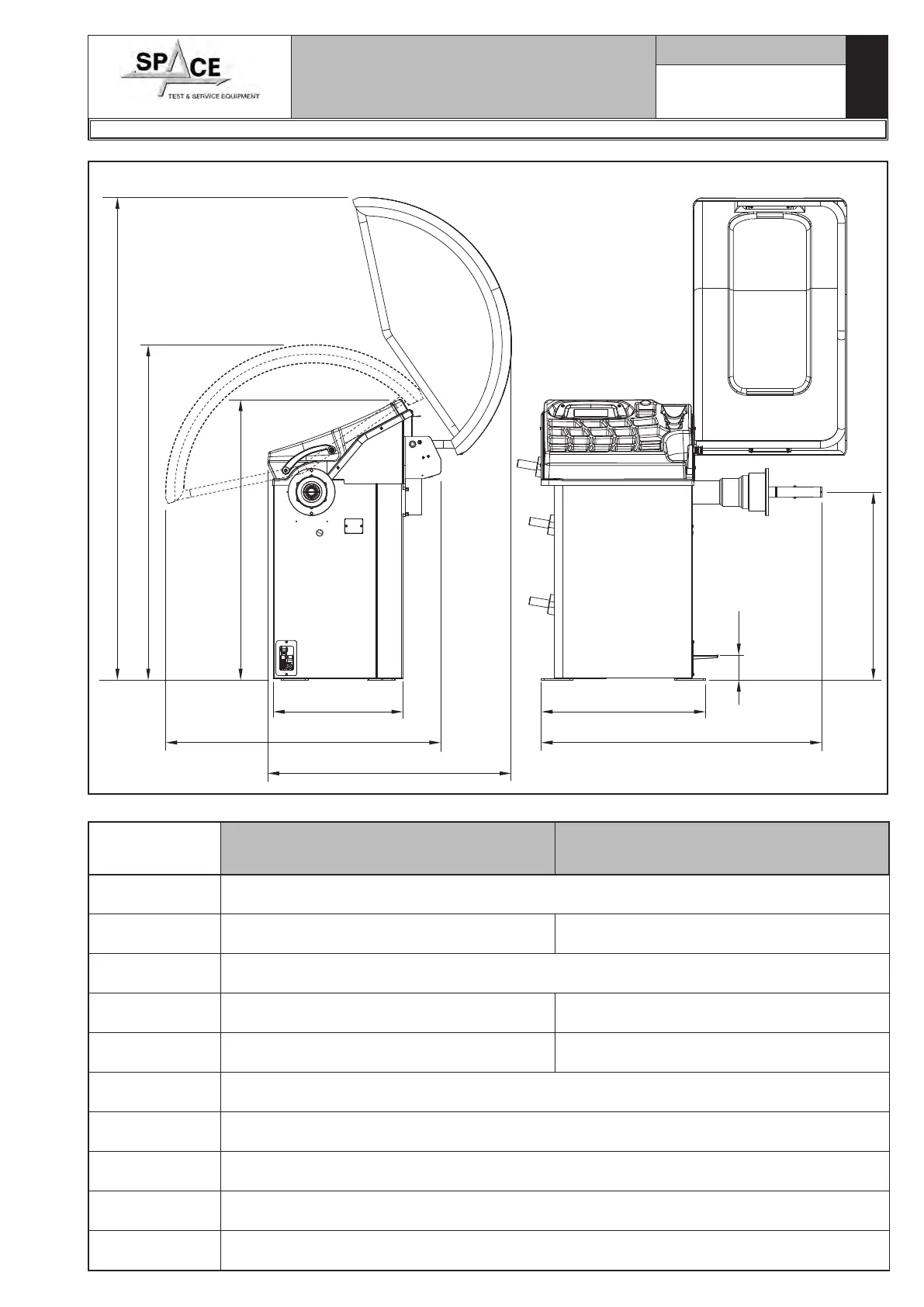

Fig. 101
A
B
C
D
E
F
G
H
I
L
