Standard RO1 - Reach

2.1.3 Reach

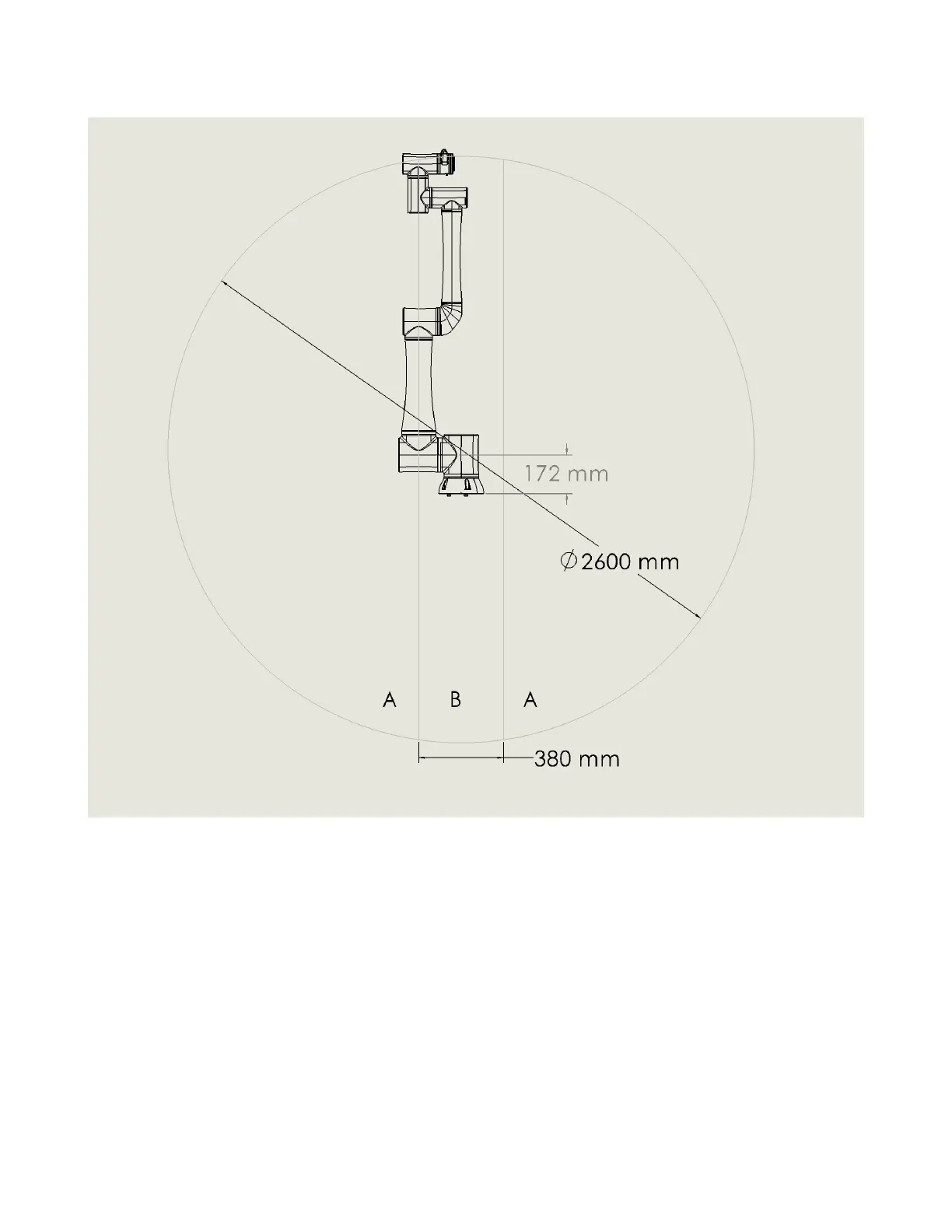

The RO1 robot can reach 1300 mm (51 in) in a radius from the center of the base (A). There is a radius
from the center base of 190 mm (7.5 in) (B) where the robot cannot reach due to it’s structure. Tools
added to the robot end of arm will impact the reach of the robot.
