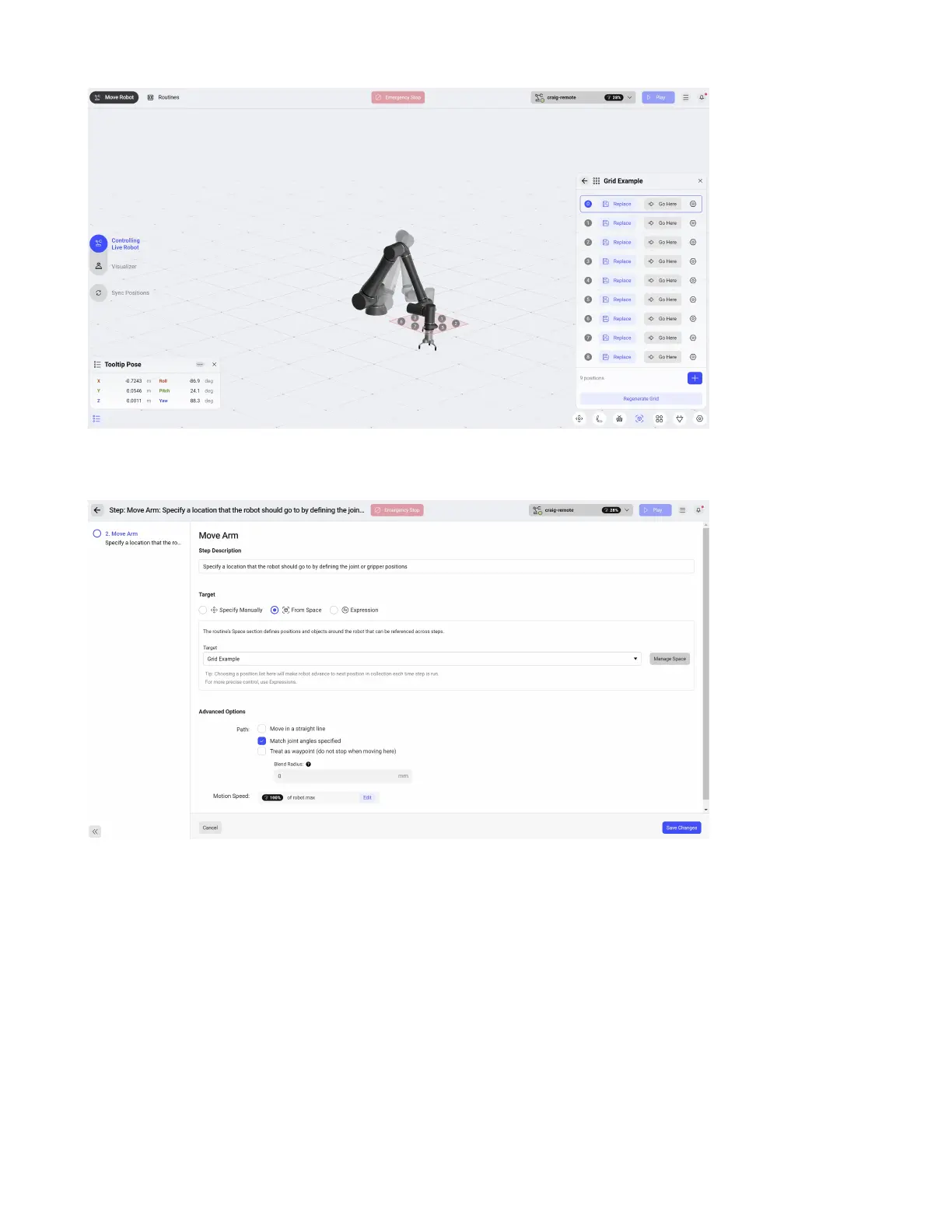

After the grid is generated, you can go to the positions using “Go Here”, tune them by using “replace,”
or exit.
To use the grid, use a Move Arm command within a loop and select the grid within the “From Space”
option. The robot will move to the positions in the grid, in order, each time the loop executes.
To program a grid with multiple layers, use an “Add Oset” to set an oset to the grid positions based
on the number of times the loop has executed.
5.7.4 Freeform Position Lists
A Freeform Position List is a list of positions in an array. This can be useful when programming if you
need to go to positions in order in a loop that are not in a grid, or indirectly address positions.
78
