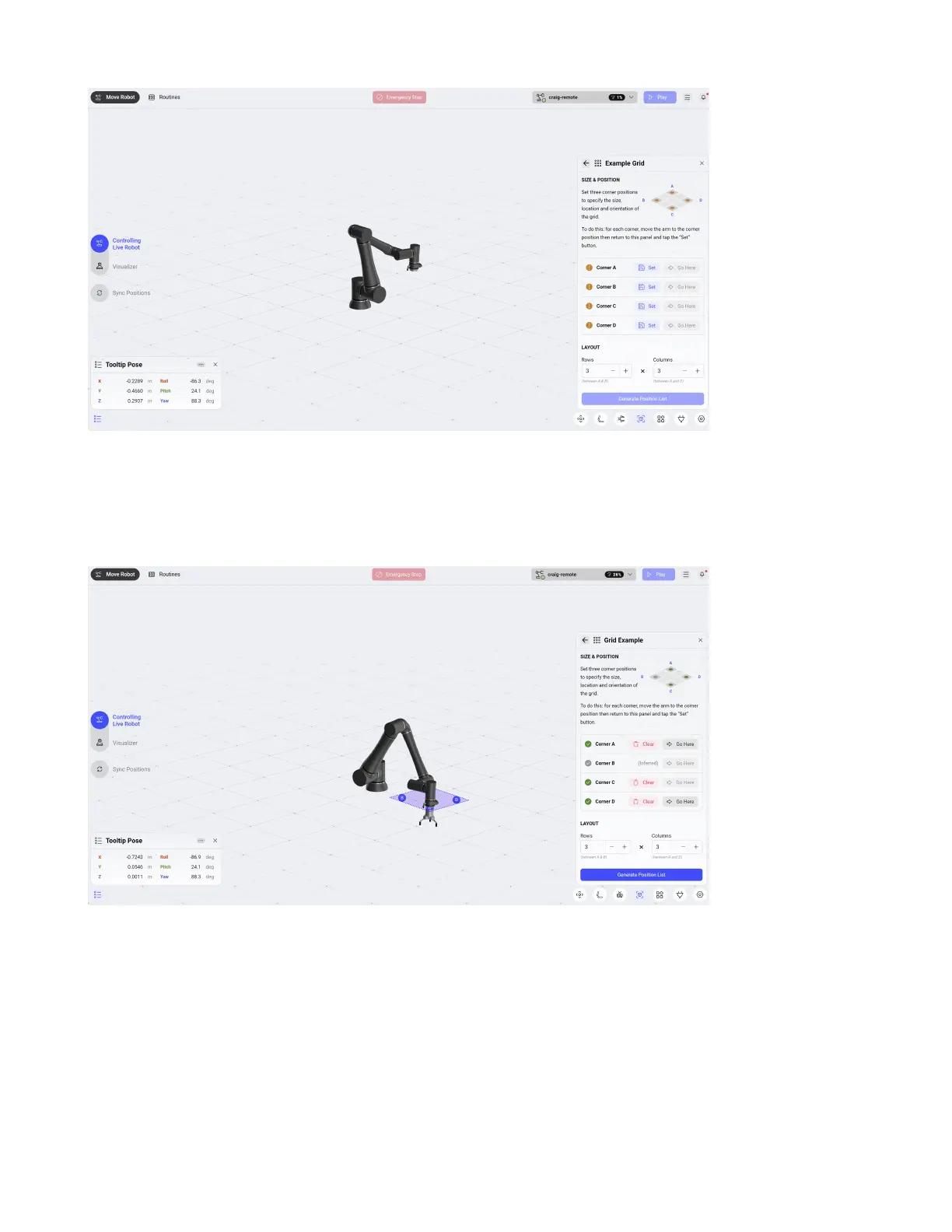

To create the grid, rst drive the robot to a corner of the grid using the Jog Robot functionality in the
Move Robot view. Set the position. Repeat for 3 corners of the grid.
Under Layout, select the number of rows and columns in the grid. This will be the layout of the parts
within the grid.
Select “Generate Position List”.
