5-4

10083002 Operator Manual Operating Instructions

5.3 Lighthead Fault

Indications

An exterior LED on the lighthead (see Figure 5-4) serves as an

indicator for faults:

• If the LED flashes on for one second, off for one second then

repeats, an LED module within the lighthead has failed. Contact

a service technician to replace LED modules.

5.4 Control Center

Fault Indication

5.4.1 Fault Display When one or more LED modules are missing or burned out, the LED

Fault Indicator appears on the display to the right of the

corresponding lighthead's intensity control. The indicator flashes

once every two seconds.

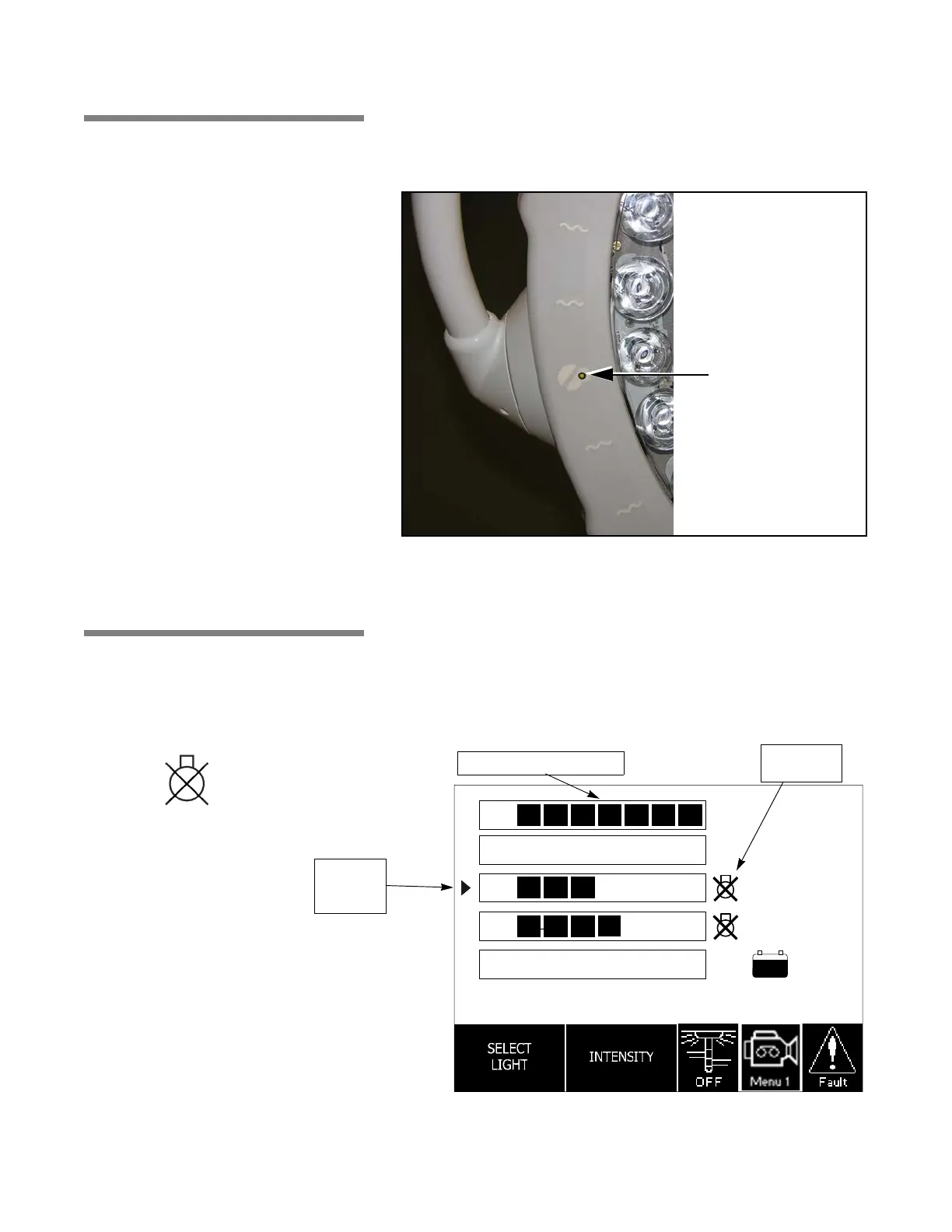

Figure 5-4. Lighthead Exterior LED Indicator

Lighthead Exterior

LED Indicator

Single LED Module

Failure

Figure 5-5. Harmony Control Center Fault Display

ALL LIGHTS: 1,2,3,4

Lighthead Intensity Status

Fault Status

Indicator

Indicates

Selected

Lighthead
