5.11 Install Camera
Disposable Sterile
Cover
When the lighthead is used with a camera, a disposable sterile cover
is placed over the camera housing. Refer to Figure 5-15. (Disposable
sterile covers are available from STERIS.) Do not use the lighthead
during a sterile procedure unless a sterile disposable cover has
been placed on the camera.
5.12 Video Camera The optional video camera is integrated into a removable, modular
handle that can be fitted into Harmony lightheads.
• A high-resolution (HD) camera can only function in a lighthead
labled for HD operation (always the lowest-position lighthead).
• A standard-resolution (SD) camera can function in any lighthead.
Whenever the video option is used, a separate sterile disposable
cover must be fitted over the camera before each procedure (see
Section 5.11, Install Camera Disposable Sterile Cover, page 5-18).
This cover allows the camera to be grasped and used in the same
way as a standard handle, including positioning the lighthead for
optimal illumination, adjusting lighthead intensity and pattern size, as
well as positioning the video image field for the best view of the
procedure. The sterile cover must be removed from the camera and
discarded after each procedure.
WARNING – BIOHAZARD:
Sterile disposable covers are
intended for single use only.
WARNING – STERILITY
ASSURANCE HAZARD: Do
not use disposable handle
covers if its packaging has
been damaged, torn or
opened; as the sterility of the
cover may be compromised.

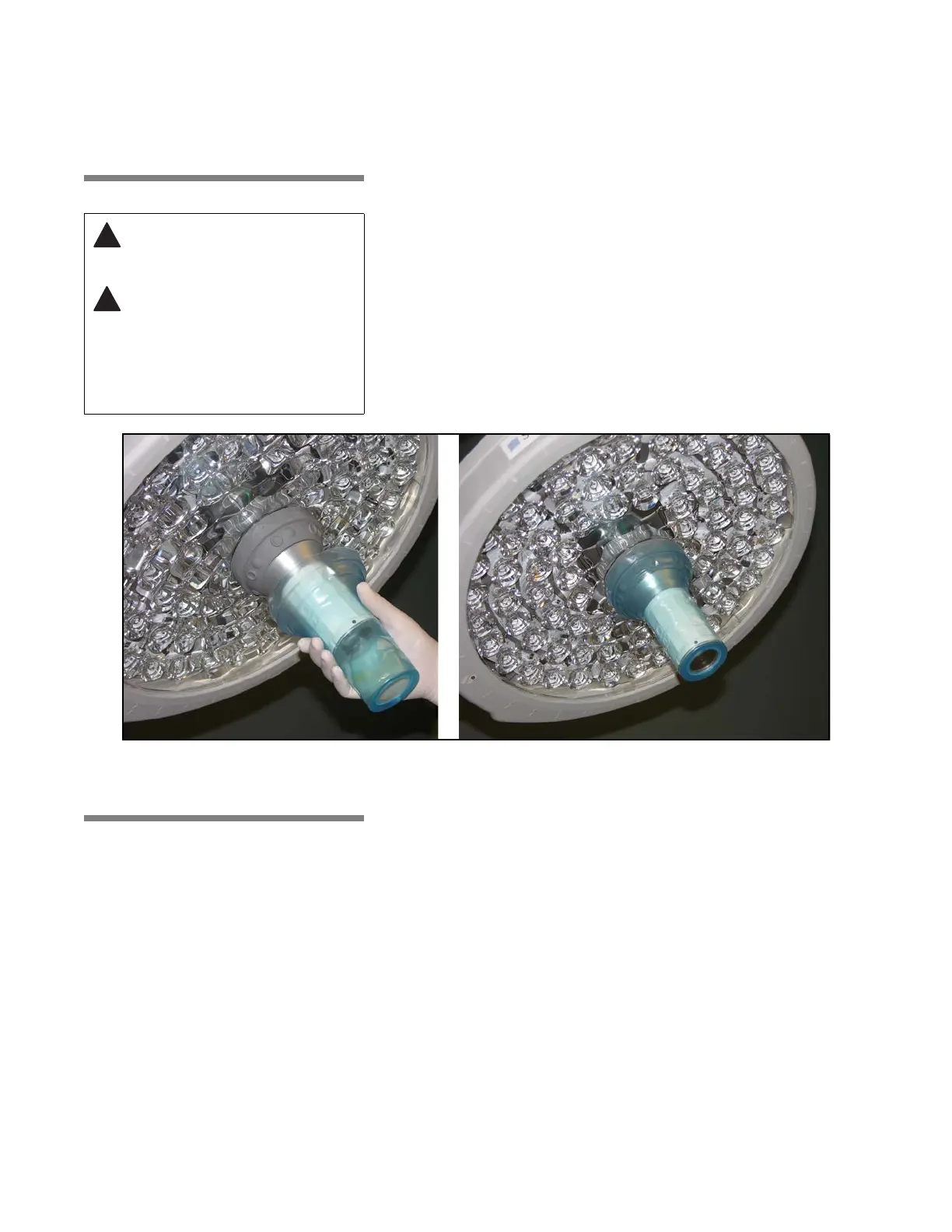

Figure 5-15. Install Camera Disposable Sterile Cover
