5.6 Harmony
Lighthead Pattern
Adjustment
The illumination pattern for Harmony lightheads can be adjusted to
any size between the maximum diameter and minimum diameter.
• Rotate the central lighthandle clockwise to decrease pattern
size.
• Rotate the central handle counterclockwise to increase pattern
size.
NOTE: Typical lighthead positioning is above and slightly behind the
surgeon's right or left shoulder.

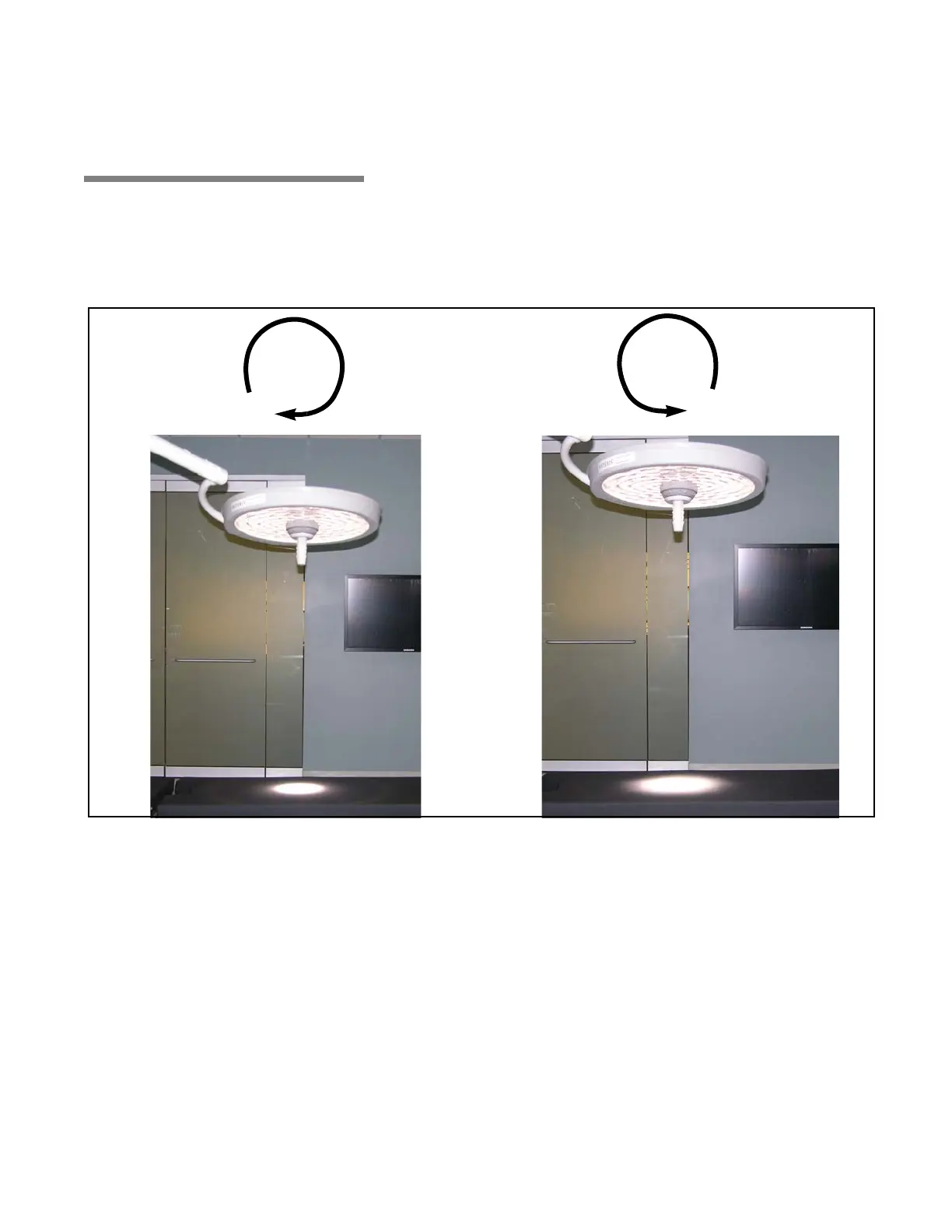

Figure 5-7. Light Pattern Size Adjustment
Rotate to
Decrease
Pattern Size
Rotate to
Increase
Pattern Size
