Operation 5
Trailer and load

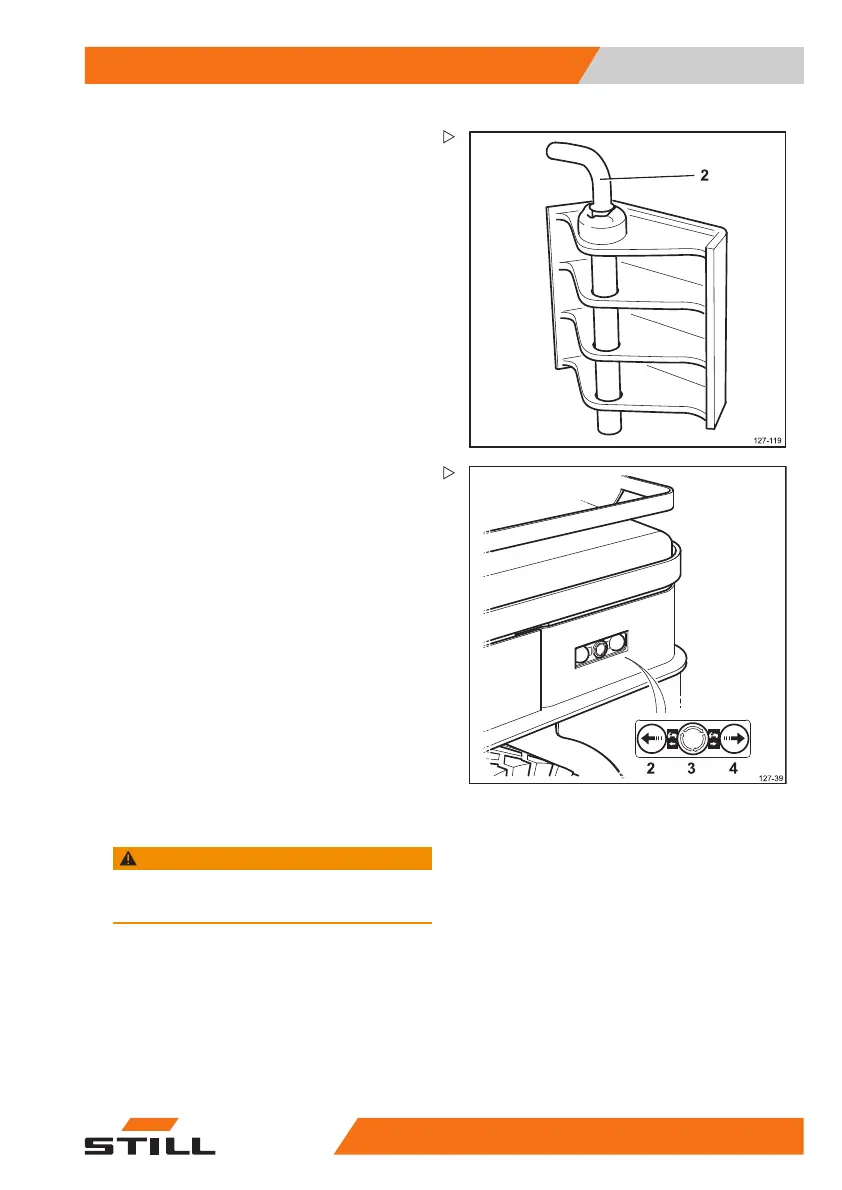

– Push the coupling pin (2) down, turn the pin
by 90° and pull the pin out.
– Using reverse inch
ing (at the rear of the
truck), drive the t
ruck towards the drawbar
until the drawbar i
s in the coupling jaw of the
tow coupling; see t
he chapter "Actuating
reverse inching".
– Insert the towing pin (2) into the coupling
jaw, push down against the pressure of the
safety spring, rotate by 90° and lock into
place.
– Connect the trailer lighting (variant) to the
truck via the trailer socket.
– Check that the tr
ailer lights are operating
correctly.
– Remove any securing devices used to
prevent the trailer from rolling away.
Uncoupling the trailer
WARNING
Risk of injury due to components moving suddenly!
– Do not reach into the open coupling.
– Take measures to prevent the trailer from
rolling away, e.g. use wheel chocks.
– Apply the truck parking brake.
– Disconnect trailer lighting (if available) from
the trailer socket.
– Push the coupling pin (2) down, turn the pin
by 90° and pull the pin out.
172
780 EN - 06/2017 119
