5 Operation
Trailer and load

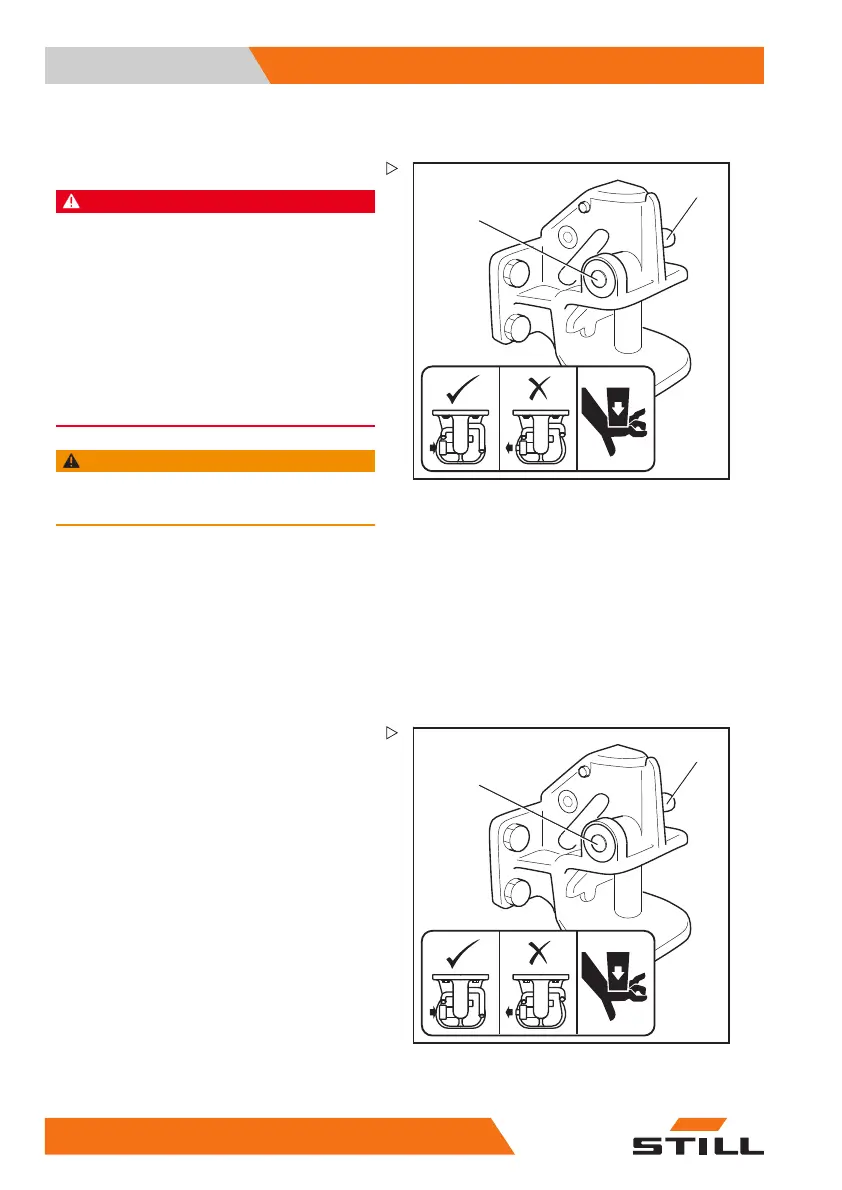

Operating the automatic coupling
2
3
Coupling the trailer
DANGER
Increased risk of accident due to improper opera-
tion of the coupling!
The safety of the coupling can only be verified by
noting the position of the coupling pin (3).
The coupling pin must not project beyond its guide
after a trailer has been coupled (see decal informa-
tion).
Never tow a trailer if the coupling pin (3) projects
beyond its guide.
It is the responsibility of the driver to ensure that the
coupling pin is fully engaged before towing a trailer.
WARNING
Risk of injury due to improper operation!
Do not reach into the open coupling.
Take measures to prevent the trailer from
rolling away, e.g. use wheel chocks.
Slowly move the
truck backwards.
Stop just in front of the drawbar.
Apply the parking brake
Actuate the rem
ote control switch for
reverse inching i
n the switch panel.
2
3
Pull the hand lever (2) on the coupling
upwards until the coupling clicks and the
coupling pin (3) does not protrude out.
128
172780 EN - 06/2017
