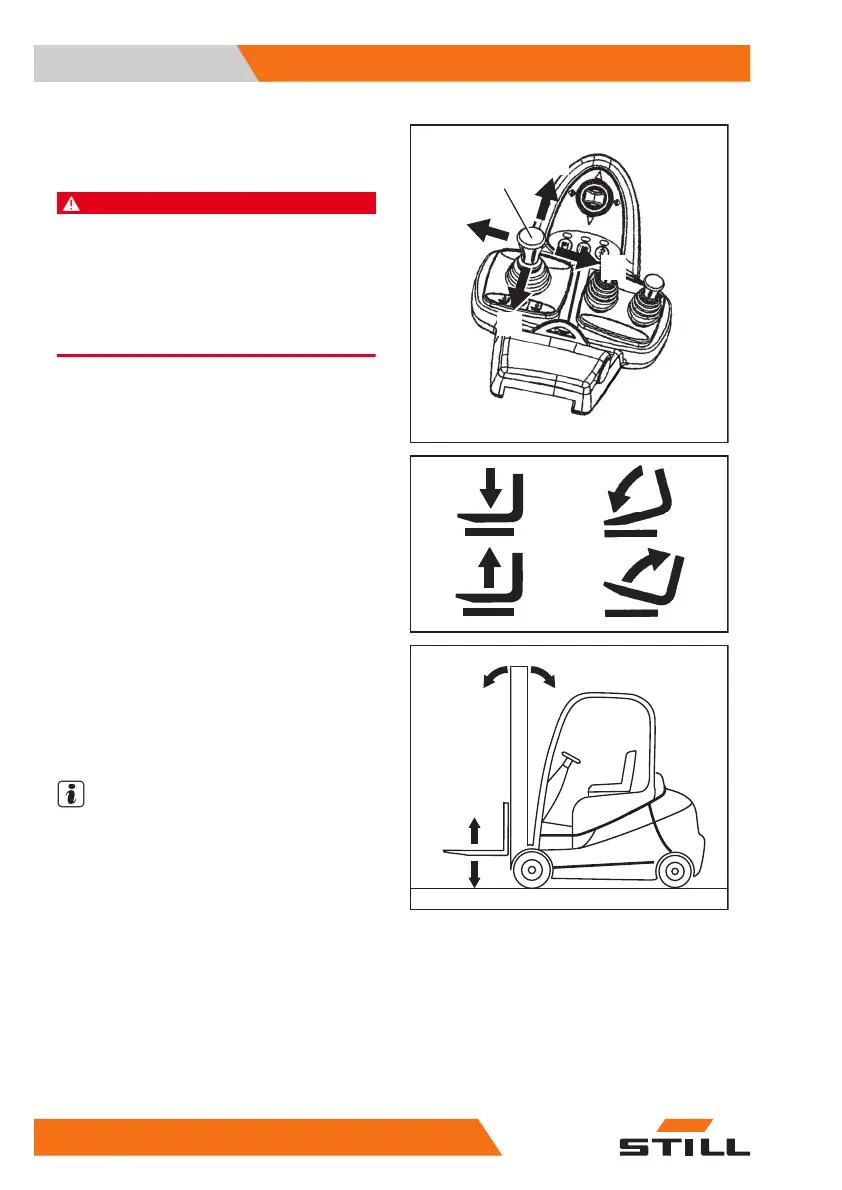

Controlling the lifting system using a
triple mini-lever
DANGER
Reaching into or climbing between moving parts of
the truck (e.g. lift mast, sideshifts, working equip-
ment, load carrying devices etc.) can lead to seri-
ous injury or death and is therefore prohibited.
– Observe the safety regulations for handling loads.
– Operate the lifting system from the driver's seat
only.
Lifting/lowering the fork carriage
To lift the fork carriage:
– Move the "lift mast" 360° lever (1) in the di-
rection of arrow (B)
To lower the fork carriage:
– Move the "lift mast" 360° lever (1) in the di-
rection of arrow (A)
Tilting the lift mast
To tilt the lift mast forwards:
– Move the "lift mast" 360° lever (1) in the di-
rection of arrow (C)
To tilt the lift mast backwards:
– Move the "lift mast" 360° lever (1) in the di-
rection of arrow (D)
NOTE
The symbols on the 360° lever show the direc-
tion of movement of the lift mast and the fork
carriage when the 360° lever is moved.
7325_003-036
A
C
D
B
1
7312_003-114
7312_003-022_V2
DC
B
A
Operation
4
Lifting
154 57348011850 EN - 08/2020 - 12
