Still RX70-40 - Overview of Drivers Compartment

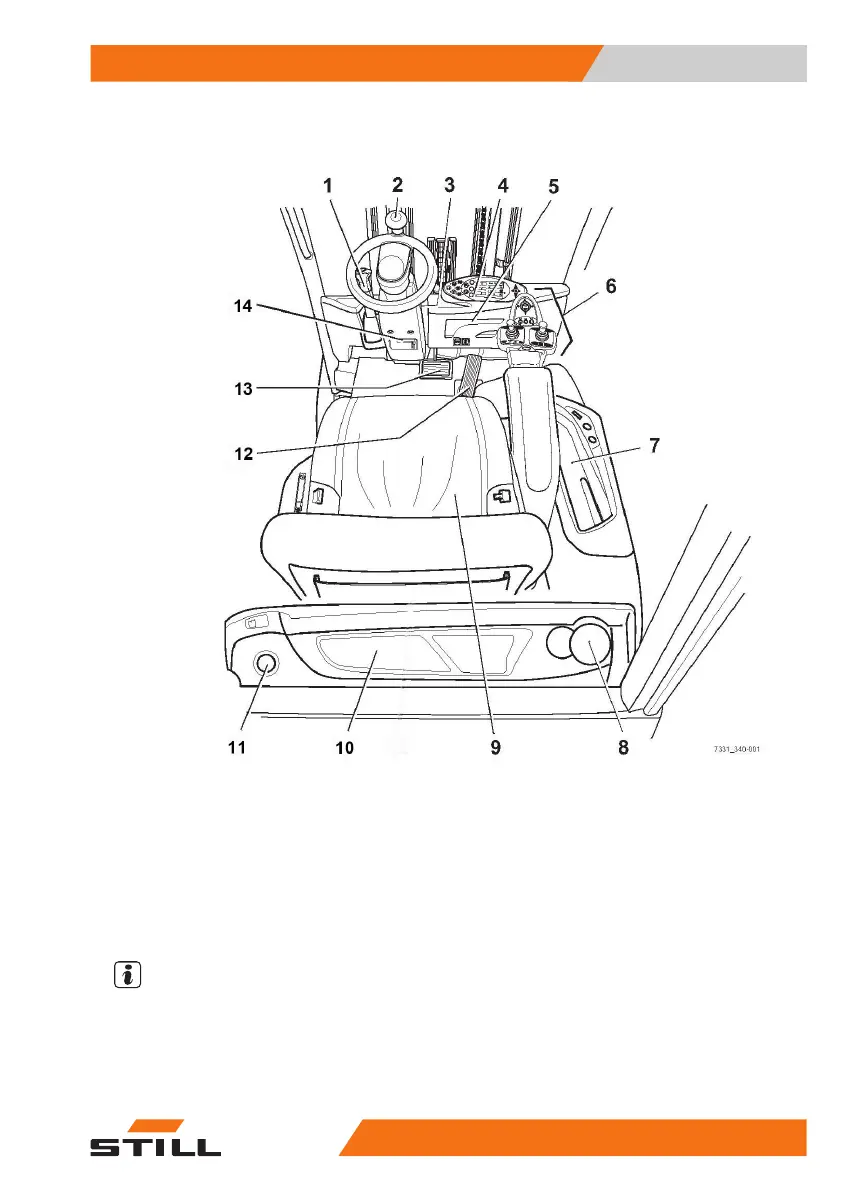

Overview of driver's compartment
Parking brake lever
Steering wheel
Key switch
Display and operating unit
Compartment for the operating instructions
Operating devices for hydraulic and drive
functions
Compartment
1
2
3
4
5
6
7
Bottle holder for max. 1.5 l bottles
Driver's seat
Compartment
Filler cap for windscreen washer reservoir
Accelerator pedal
Brake pedal
Steering column adjustment lever
8
9
10
11
12
13
14
NOTE
The truck equipment may differ from the
equipment shown.
Overviews
3
Overview of driver's compartment
5557348011850 EN - 08/2020 - 12
