Still RX70-40 - Fingertip

Fingertip
F1
F1
F2
F2
7325_003-028
1
23456
78
9
10
11

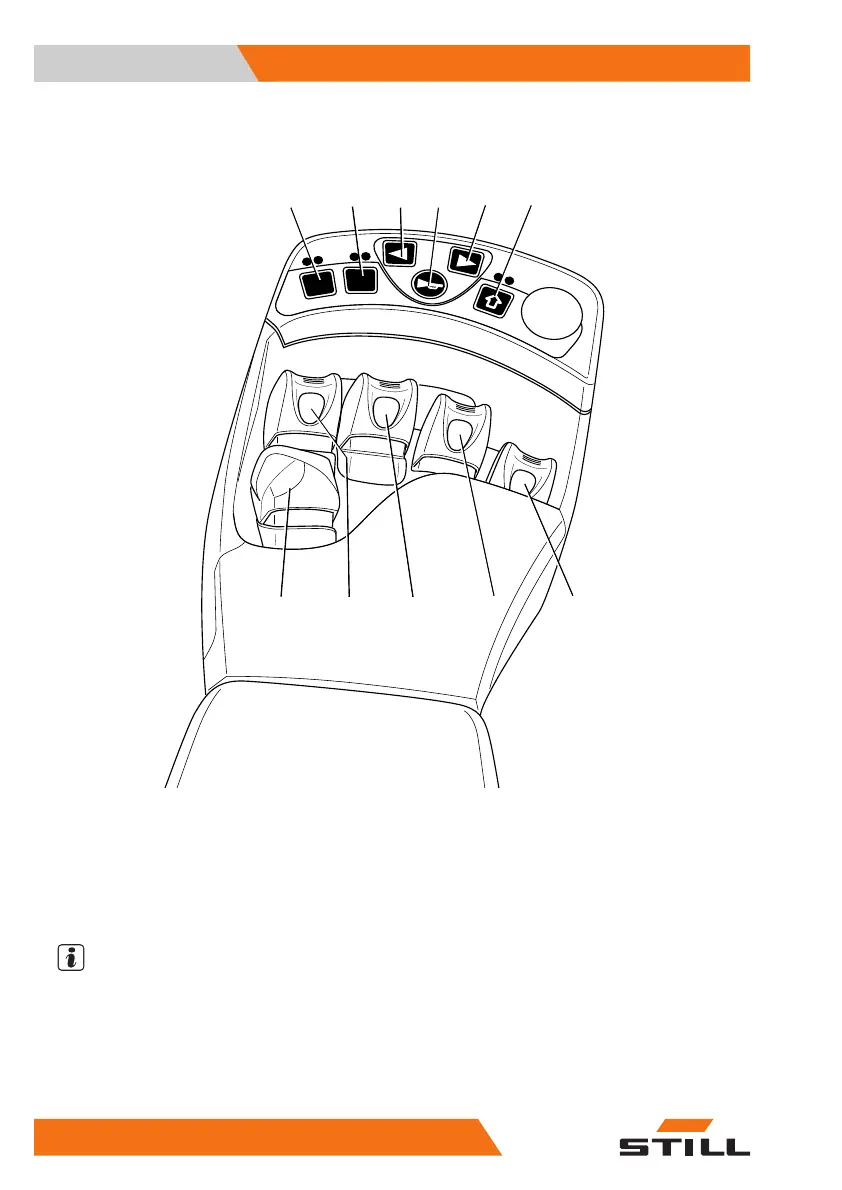

Function key "F1"
Function key "F2"
Left turn indicator button
Signal horn button
Right turn indicator button
Function key "5th function"
1
2
3
4
5
6
"Attachments" operating lever
"Attachments" operating lever
"Tilt" operating lever
"Lift/lower" operating lever
Drive direction switch
7
8
9
10
11
NOTE
Depending on the specification, various elec-
tric attachment parts can be controlled via
function keys (1) and (2).
●
For alterations, contact the authorised serv-
ice centre.
