Still RX70-40 - Fuse Assignment

Type of tyre Tyre size
Track width
(mm)
Lift mast
(Overall height in mm)
Front Rear Front Rear Telescopic Triple
Pneumatic tyres
Pneumatic
1364, twin
tyres
7.00-15 250-15 1364 1120 Up to 3250 Up to 3200

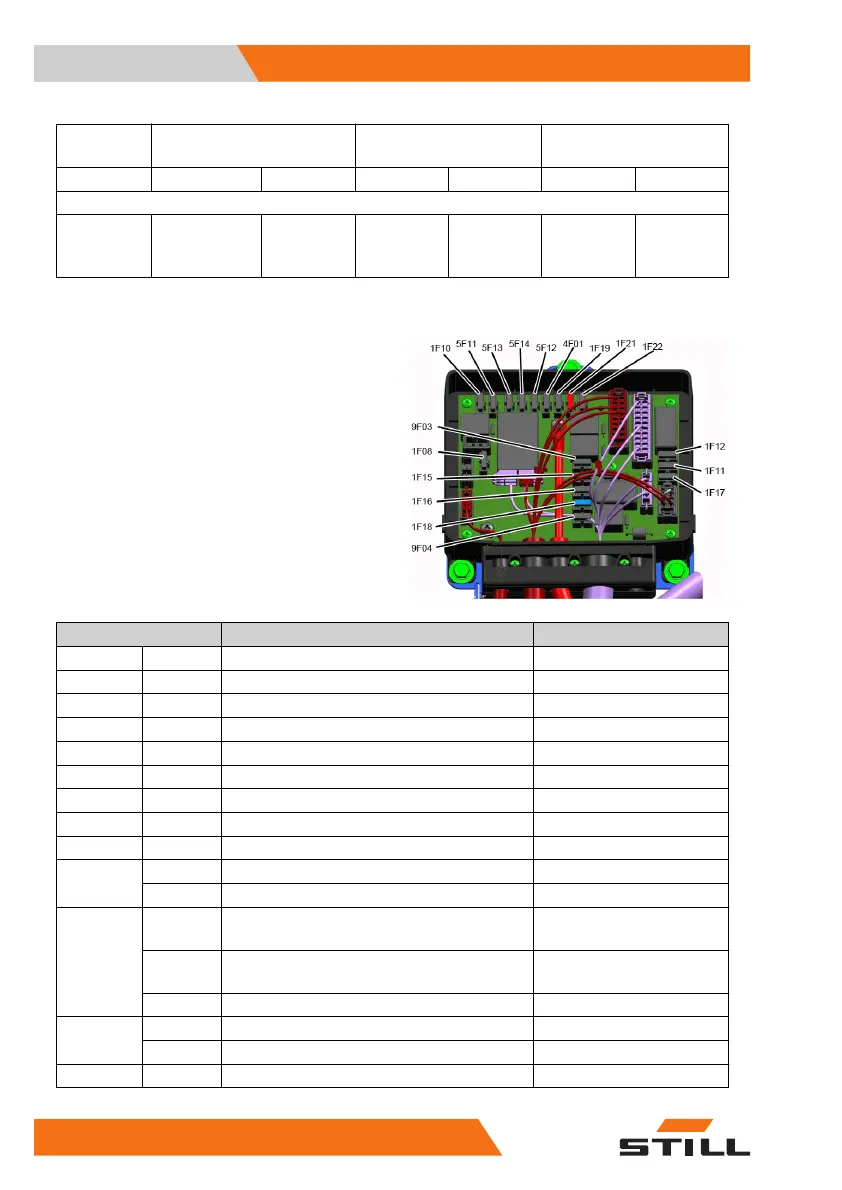

Fuse assignment
Fuse Connection Comment
1F08 10 A 12-volt battery (constant positive terminal) Reserve
1F09 10 A Switch lock, terminal 30
1F10 10 A Coolant pump RX70-40-50 (LPG)
1F11 10 A Converter
1F12 15 A Reserve
1F15 10 A 12 volts for TCU, display and operating unit
1F16 10 A 12 volts for servo hydraulics
1F17 10 A Time-delay relay, terminal 15
1F18 15 A Converter coolant pump, axle/converter
1F19
10 A 12 volts for ECU VW ECU
10 A Exhaust gas volume controller RX70-40-50 (DOC, DPF)
1F21
10 A
Burner air pump, preheating control unit, ex-
haust gas recirculation
RX70-60-80
15 A
Lambda probe, ignition module 1-3 pulse
valve
RX70-40-50 (LPG)
10 A Exhaust gas controller butterfly valve RX70-40-50 (DOC)
1F22
15 A Spark ignition control unit RX70-60-80
15 A Pulse valve, ignition module 4-6 RX70-40-50 (LPG)
4F01 10 A Signal horn

Technical data
6
Fuse assignment
