19
02.11
Strapex SMA 20
1 TECHNICAL DATA
TABLE OF CONTENTS
Weight 68 kg (150 lbs)
Carrying weight 150 kg (330 lbs)
Minimum dimension Width 45 mm (1
3
/
4
“)
of package Height 20 mm (
3
/
4
“)
Tensioning force 5–450 N continously
adjustable
Emission sound
pressure level < 85 dB
Sealing High effi ciency heat seal
Voltage Single phase AC
230 V / 50 Hz, 115 V / 60 Hz
Power consumption 0,35 kW
Motor 250 W
PLASTIC STRAP
Strap quality Polypropylene (PP)
Strap width 6, 9, 12–13 mm
(
1
/
4
“,
3
/
8
“,
1
/
2
“)
Strap thickness Polypropylene 0,40–0,70 mm
(.016“–.028“)
1. Technical data 19
2. General information 20
3. Modes of operation 20
4. Safety instructions 21
5. Description 22
5.1 Design 22
5.2 Functional description 22
5.2.1 Description of operating sequence 23
6. Operating instructions 24
6.1 Adjust strap tension 24
6.2 Adjust strap feeding 24
6.3 Start strapping 25
6.4 Foot switch (option) 25
6.5 Change strap coil 26
6.6 Basic setting of the strap tension 27
6.7 Check of seal 27
6.8 Adjust machine height 28
7. Preventive maintenance 28
7.1 Preventive maintenance schedule 28
7.2 Clean clamps, strap separator and
slide plate 29
8. Corrective maintenance 30
8.1 Adjust welding temperature 30
8.2 Adjust height of heating element 30
8.3 Adjust gap between tension belt
and strap channel 31
8.4 Adjust Zero-position (starting position) 31
8.5 Replace tension belt 32
8.6 Replace/tighten drive belt 32
8.7 Replace clamps (knife) 33
8.8 Elimination of faults 34
9. Dismantling and disposal 34
10. Electric diagram 51
10.1 Explanation 52
11. Functional diagram 53
12. Parts list 54

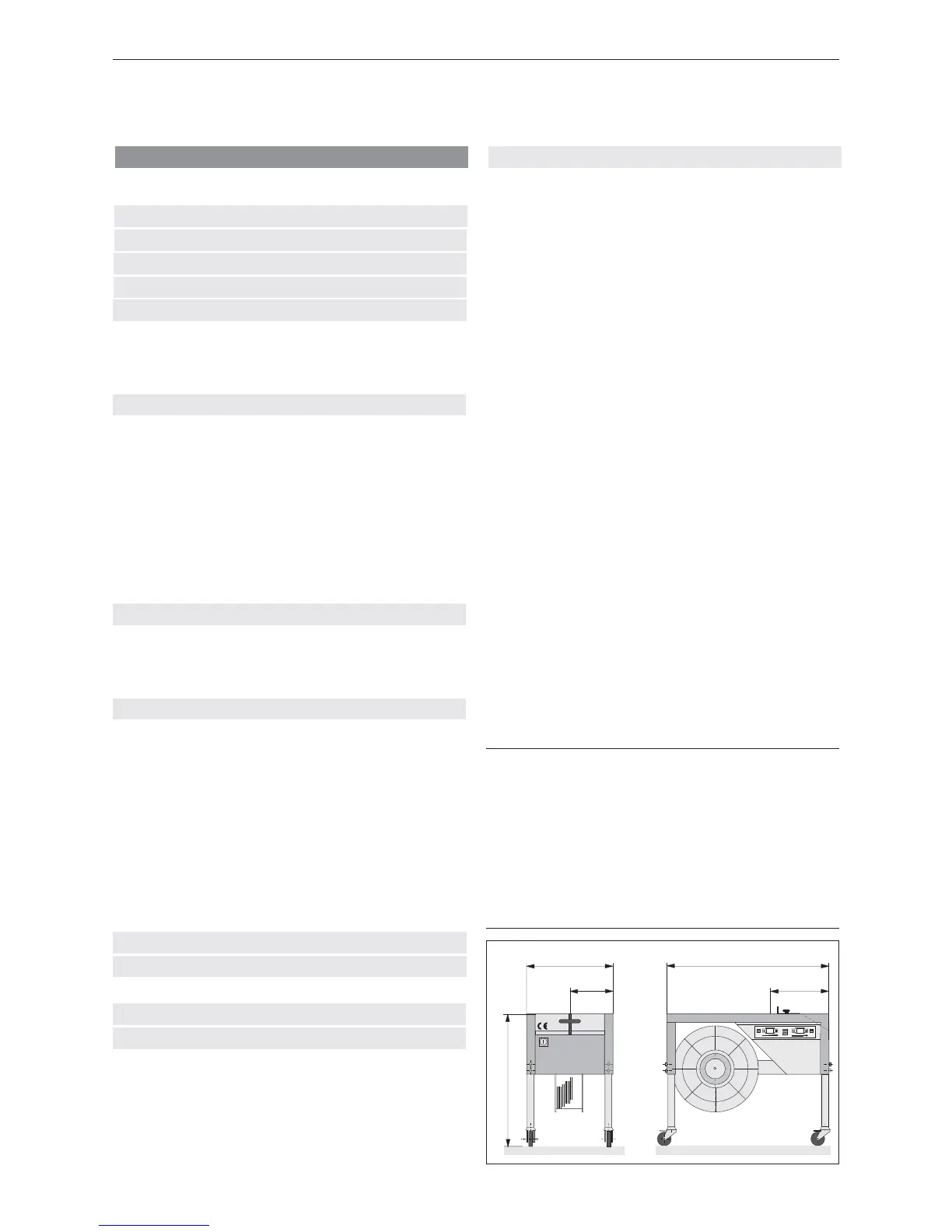

Fig. 1
500
870
250
230
700 - 830
0 6
1 9
