Objet350 User Guide 6 Operating and Maintaining the Objet350 3DPrinter
DOC-17001 Rev.G 6-62
TotestandcalibrateUVlampradiation:
1. StarttheUVCalibrationWizardfromtheOptionsmenu.
2. Inthefollowingscreen,selectUVIntensityCalibrationtoadjustthelamp’s
radiationleveltotheacceptablerange.

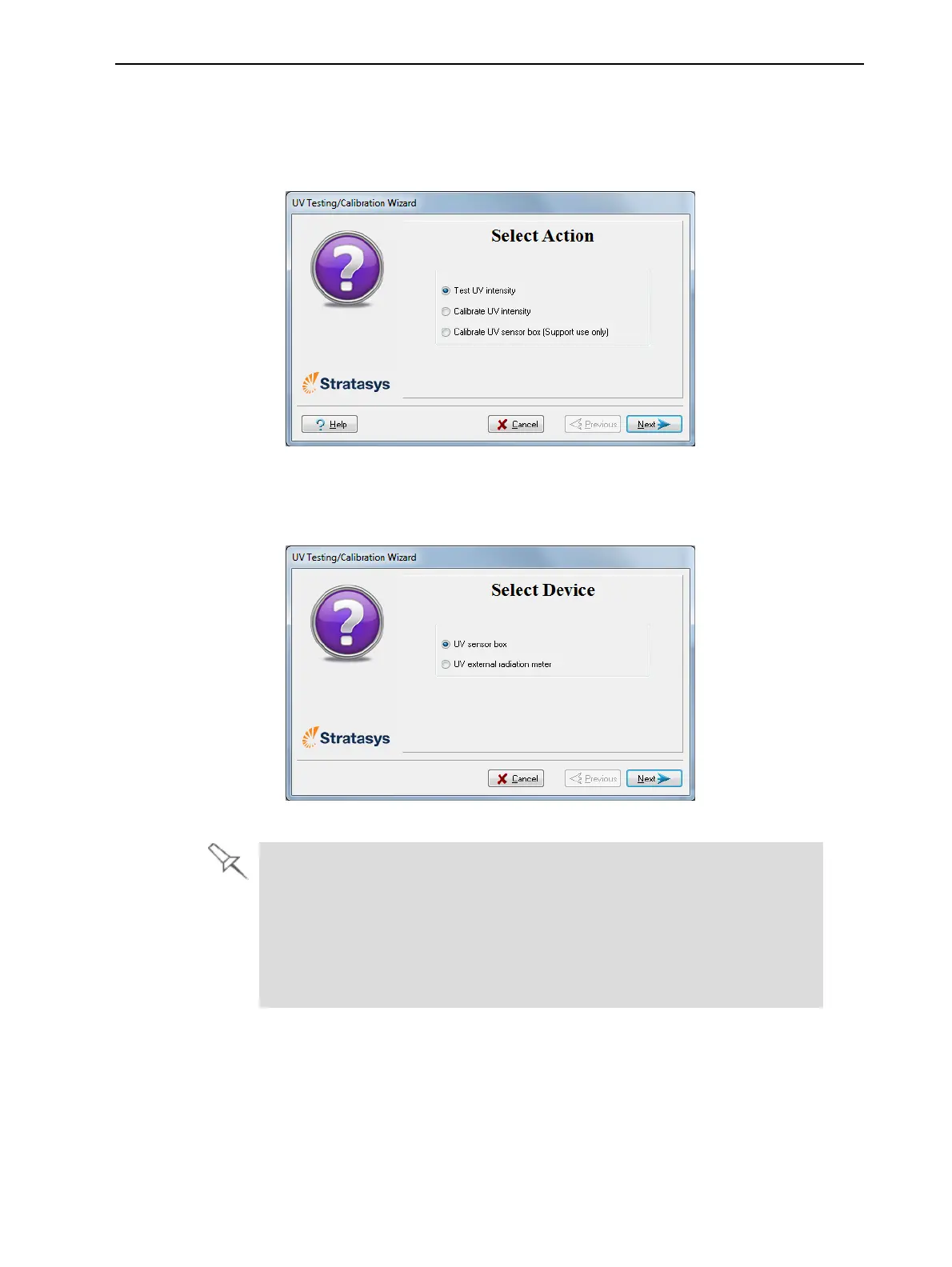

Figure6-88UVTest/Calibrationselection
3. Inthefollowingscreen,selecttheUVsensorandmeasuringdevicetobe
used.
Figure6-89UVdeviceselection
UV Measuring Device
WhenyouusetheStratasysUVsensorbox(TOL-03005-S),youconnect
ittotheprinter.ThewizardautomaticallymeasuresandcalibratestheUV
radiation.
Ifyouuseastand-aloneUVradiationmeter,youneedtomanuallyenter
thereadingsfromthemeterinthewizardscreens.
