Stratasys Objet350 - Calibrating the Load Cells

Objet350 User Guide 6 Operating and Maintaining the Objet350 3DPrinter
DOC-17001 Rev.G 6-69
Calibrating the
Load Cells
Loadcellsaresensorsthatmeasuretheweightofthematerialcartridgesand
thewastecontainerintheprinter.Itisimportantthatyouperiodicallycheck
thattheweightmeasurementsareaccuratetopreventunnecessarywasteof
printingmaterials.Itisrecommendedthatyoucalibratetheloadcellsoncea
month.
Tocalibrateloadcells:
1. StarttheLoadCellCalibrationwizardfromtheOptionsmenu.
2. Inthefollowingscreen,selectoneormoreloadcellsthatyouwantto
calibrate.

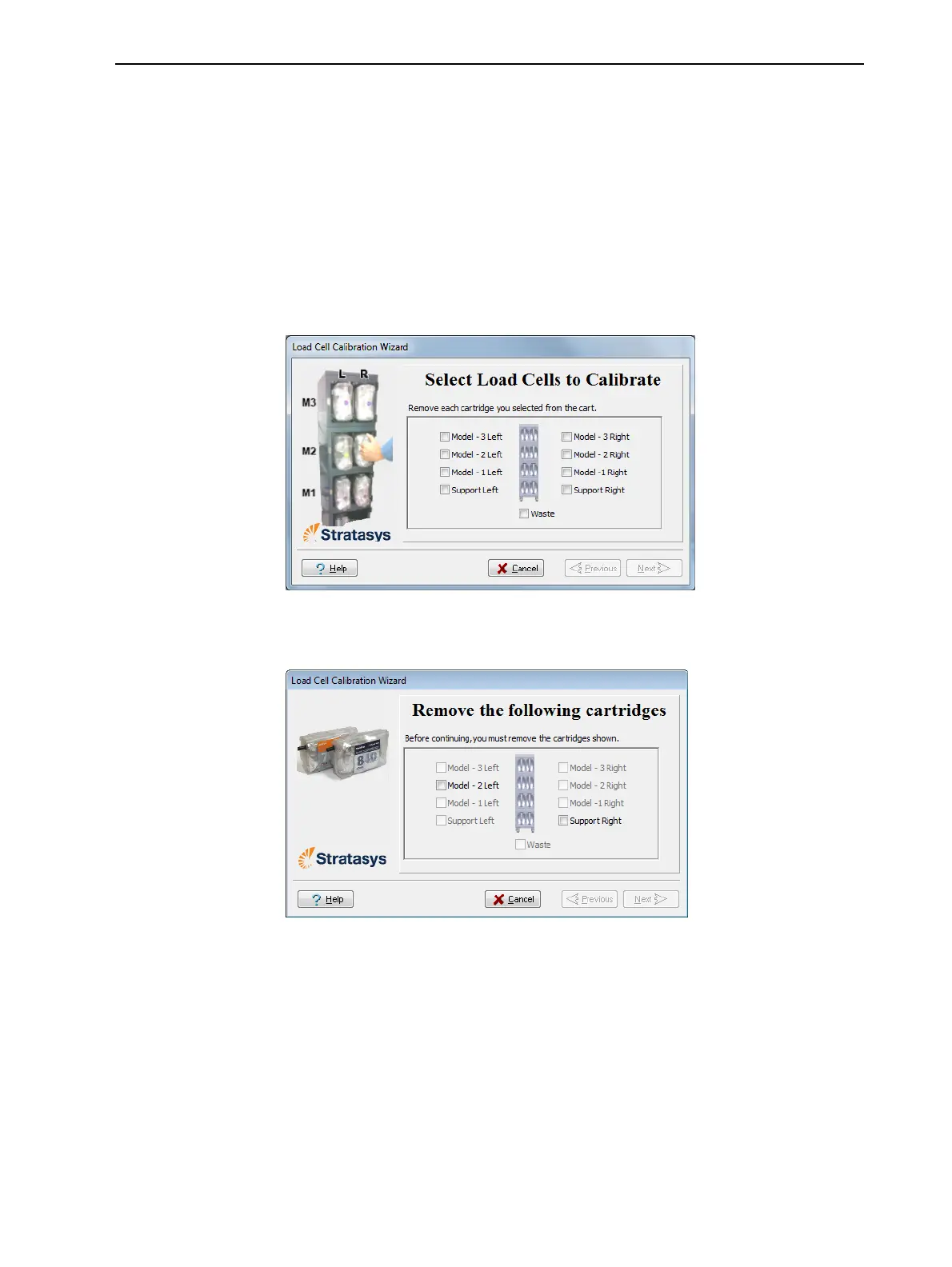

Figure6-103Loadcellselection
3. Removeeachselectedcartridgefromthematerialscart,andclickNext.
Figure6-104Confirmationofcartridgeremoval
4. Inthenextwizardscreen,observethenumbersandwaituntilthelevelis
relativelystable—twounitsaboveorbelowtheaveragelevelshown.
