Objet350 User Guide 5 Using Objet Studio
DOC-17001 Rev.G 5-47
Todisplayobjectsasboxes,showingtheirmaximumdimensionsinsteadoftheir
shape:
➢ FromtheViewmenu,selectDisplayBoundingBox.

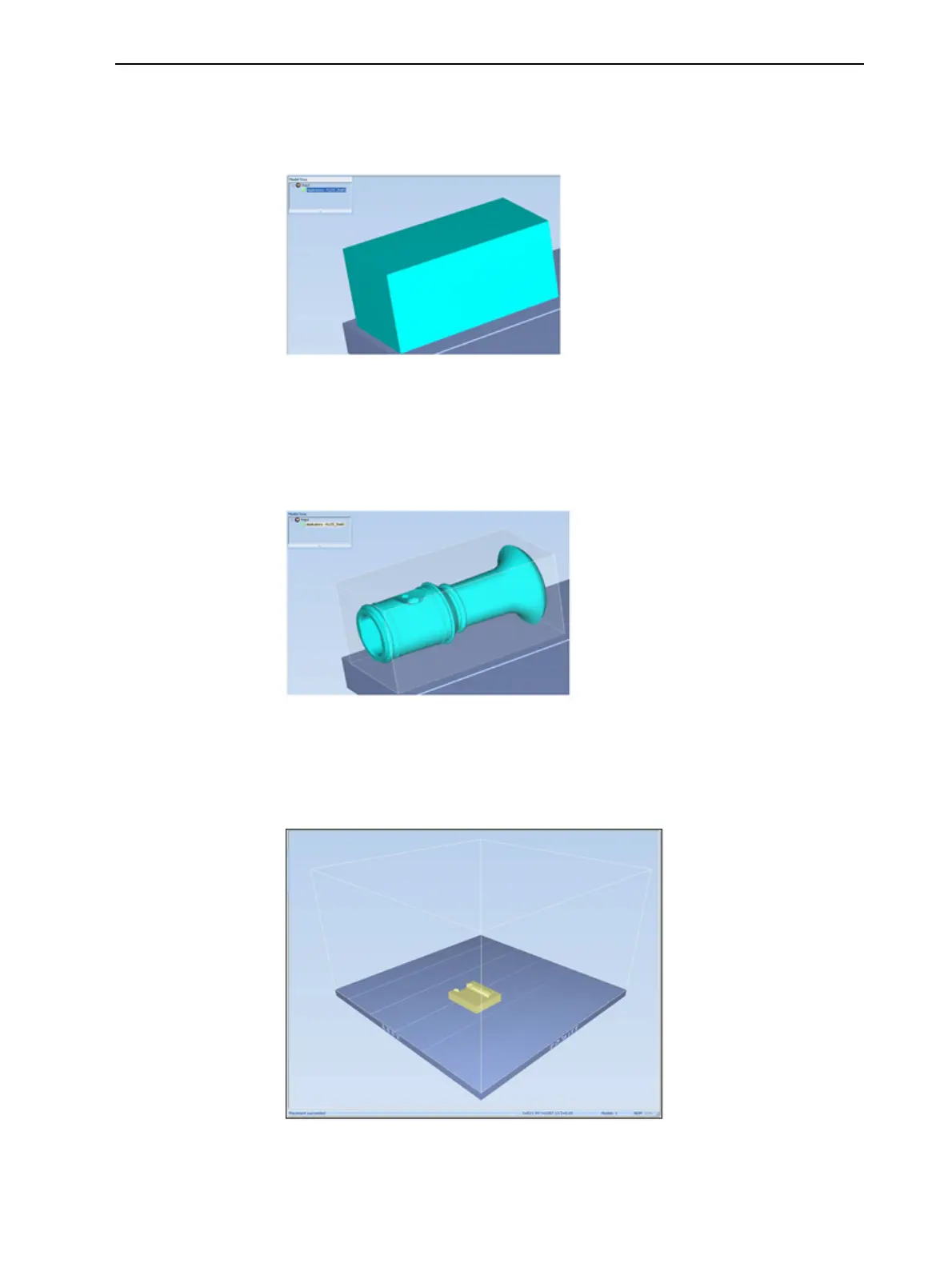

Figure5-54Modeldisplayedwithboundingbox
Todisplaytheareaaroundobjectsneededforsupportmaterial(toproducea
mattefinish):
➢ FromtheViewmenu,selectDisplayThickeningBox.
Figure5-55Modeldisplayedwiththickeningbox
Todisplaythemaximumbuildheight:
➢ FromtheViewmenu,selectDisplayTray3DBox.

Figure5-56Tray3DBox
