Use of machine
Verti-Mix SF / Verti-Mix Double SF Version 06.12
151

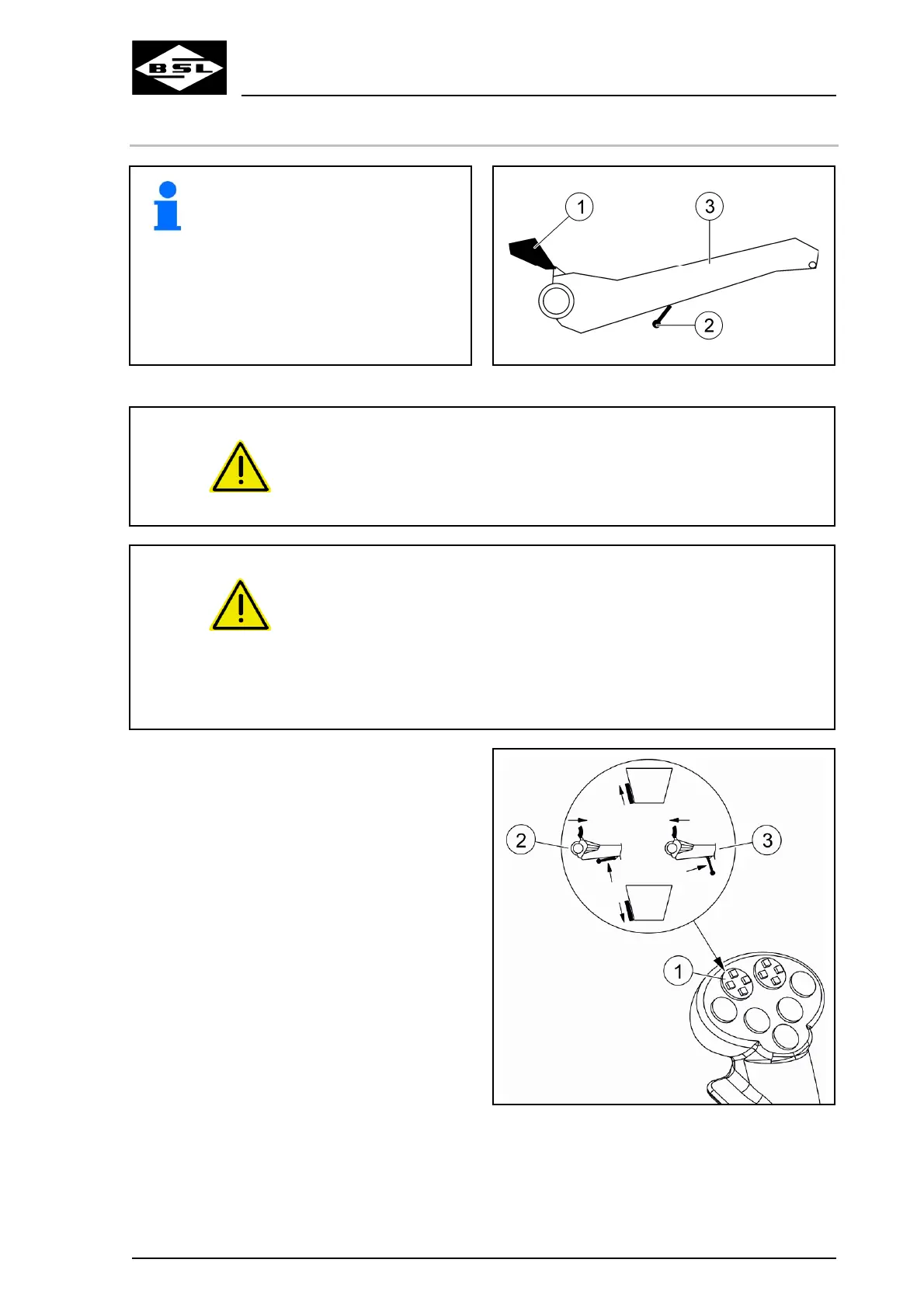

8.1.2 Actuate protective device of pick-up milling cutter and transport support
The protective device (1) of the pick-up
milling cutter and the transport support
(2) for the cutter arm (3) are coupled
with each other by means of the
hydraulic control. When opening the
protective device, the transport support
is automatically retracted. When
closing the protective device, the
transport support is automatically
extended.
Fig. 101
WARNING
Risk to people and animals due to the sharp cutting tools of the
pick-up milling cutter when carrying out transport journeys with
open protective device!
Close the open protective device of the pick-up milling cutter before
carrying out transport journeys.
WARNING
Risk to people and animals when opening and closing the
protective device of the pick-up milling cutter!
Make sure that people or animals leave the hazardous area of
the protective device before opening or closing the protective
device.
Immediately release the key button of the multi-function joystick
when people or animals enter the hazardous area of the
protective device.
Open protective device of pick-up milling
cutter / Retract transport support
1. Select "Charging" mode. For details refer to
page 111.
2. Lift the cutter arm so far that the transport
support can be easily extended or retracted.
3. Press and keep hold of the key button (1) of
the multi-function joystick to the left (2).
At the same time, the transport support is
retracted.
4. Release the key button (1) of the multi-
function joystick when the protective device
has reached the desired opening degree.
Fig. 102
