5.7.1.3 Basic configuration – "Discharging" mode
(1) Camera picture
(2) Charging mode
(3) Discharging mode
(4) Tare weight
(5) Reset total value
(6) No function
(7) No function
(8) Display weight 1
(9) Display weight 2
(10) Display of the opening status(es) of the
discharge door(s)
(11) Display of mixing auger speed
(12) Display of speed and direction of motion of
the crossover conveyor
(13) Display of machine and diesel engine
speed
(14) Display of assignment of the blue key of the
multi-function joystick in the current
operating mode
(15) Display of assignment of the green key of
the multi-function joystick in the current
operating mode
(16) Display of assignment of the yellow key of
the multi-function joystick in the current
operating mode
(17) Display of assignment and operation of
display key 1 in the current operating mode
(18) Display of assignment and operation of
display key 2 in the current operating mode
(19) Display of assignment and operation of
display key 3 in the current operating mode
(20) Display of time and date
(21) Display of indicator system
(22) Display of full headlights and switchover
between day and night-time lighting
(23) Display of direction of motion
(24) Display of steering mode
(25) Display of operating mode
(26) Display of parking brake
(27) Display of fuel quantity and call of level
indicator
(28) Call "Parameter / Diagnosis / Weighing
device" menu

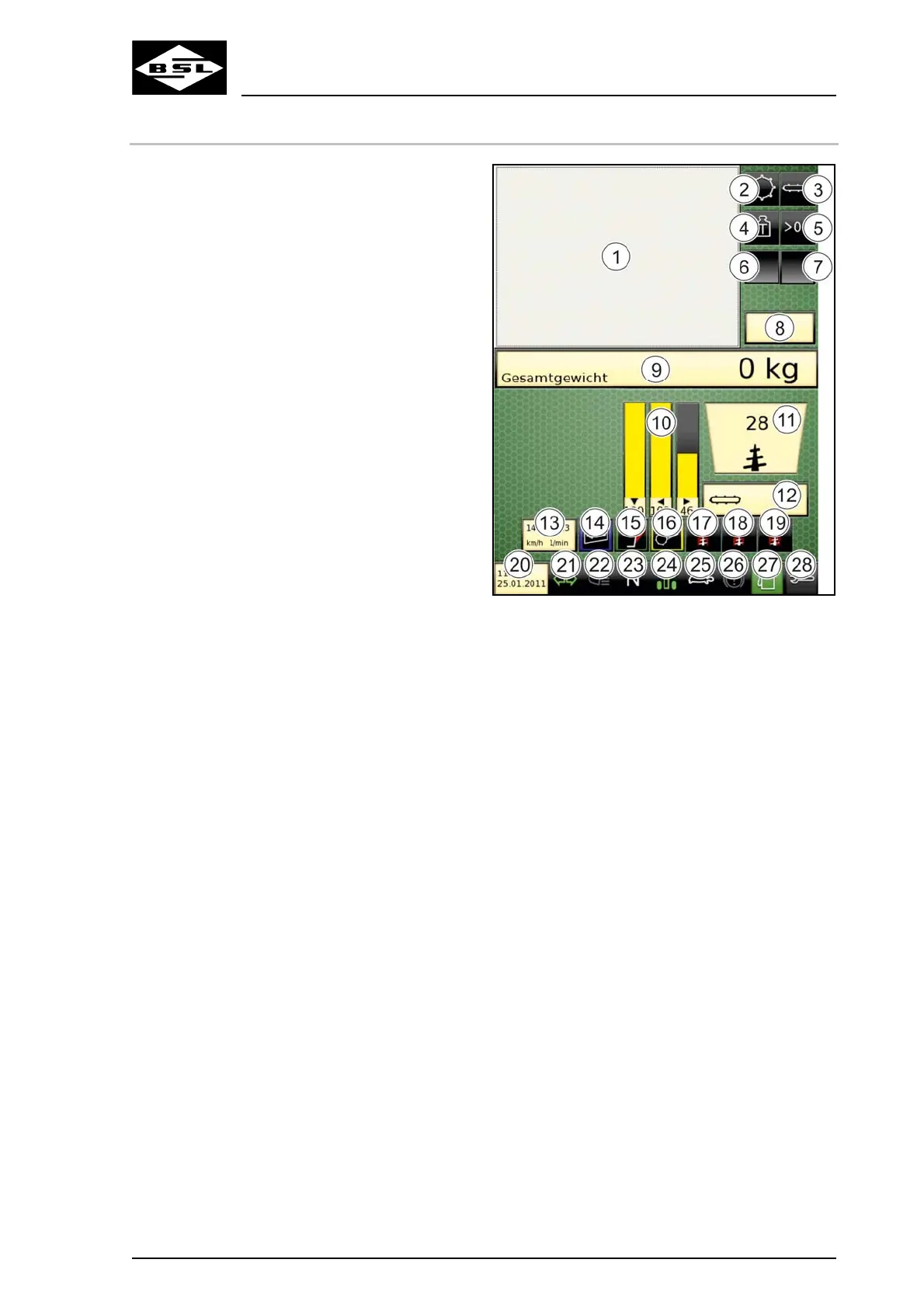

Fig. 26
