Strautmann Verti-Mix SF - Cutter Arm

Design and function
76
Verti-Mix SF / Verti-Mix Double SF Version 06.12

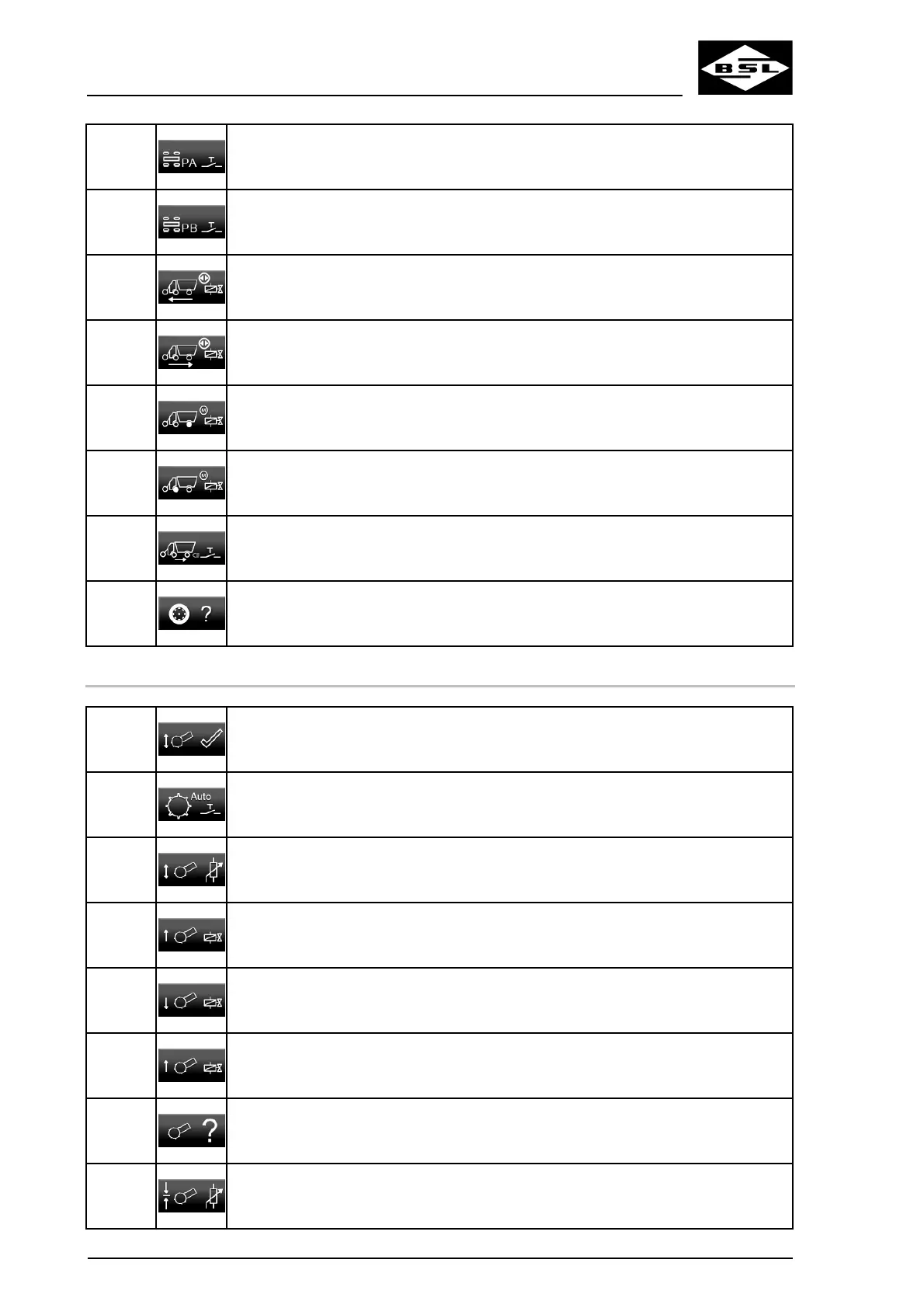

123
Traction drive pump, High pressure A (forward)
Indicates the pressure.
124
Traction drive pump, High pressure B (backwards)
Indicates the pressure.
131
Pump forward
Indicates the electric current.
132
Pump backwards
Indicates the electric current.
133
Traction engine, rear axle
Indicates the electric current.
134
Traction engine, front axle
Indicates the electric current.
141
Reversing lights
Indicates whether the switching input is active.
151
Traction drive status
Indicates the status of the traction drive.
5.7.6.4 Cutter arm
801
Release of cutter arm
Indicates whether the switching input is active.
802
Automatic milling system
Indicates whether the switching input is active.
821
Lift / Lower cutter arm
Indicates the percentage value of the multi-function joystick.
831
Lift cutter arm
Indicates the electric current.
832
Lower cutter arm
Indicates the electric current.
841
Direction valve
Indicates whether the switching output is active.
851
Status of cutter arm
Indicates the status of the cutter arm.
822
Position of cutter arm
No function.
