Design and function
72
Verti-Mix SF / Verti-Mix Double SF Version 06.12

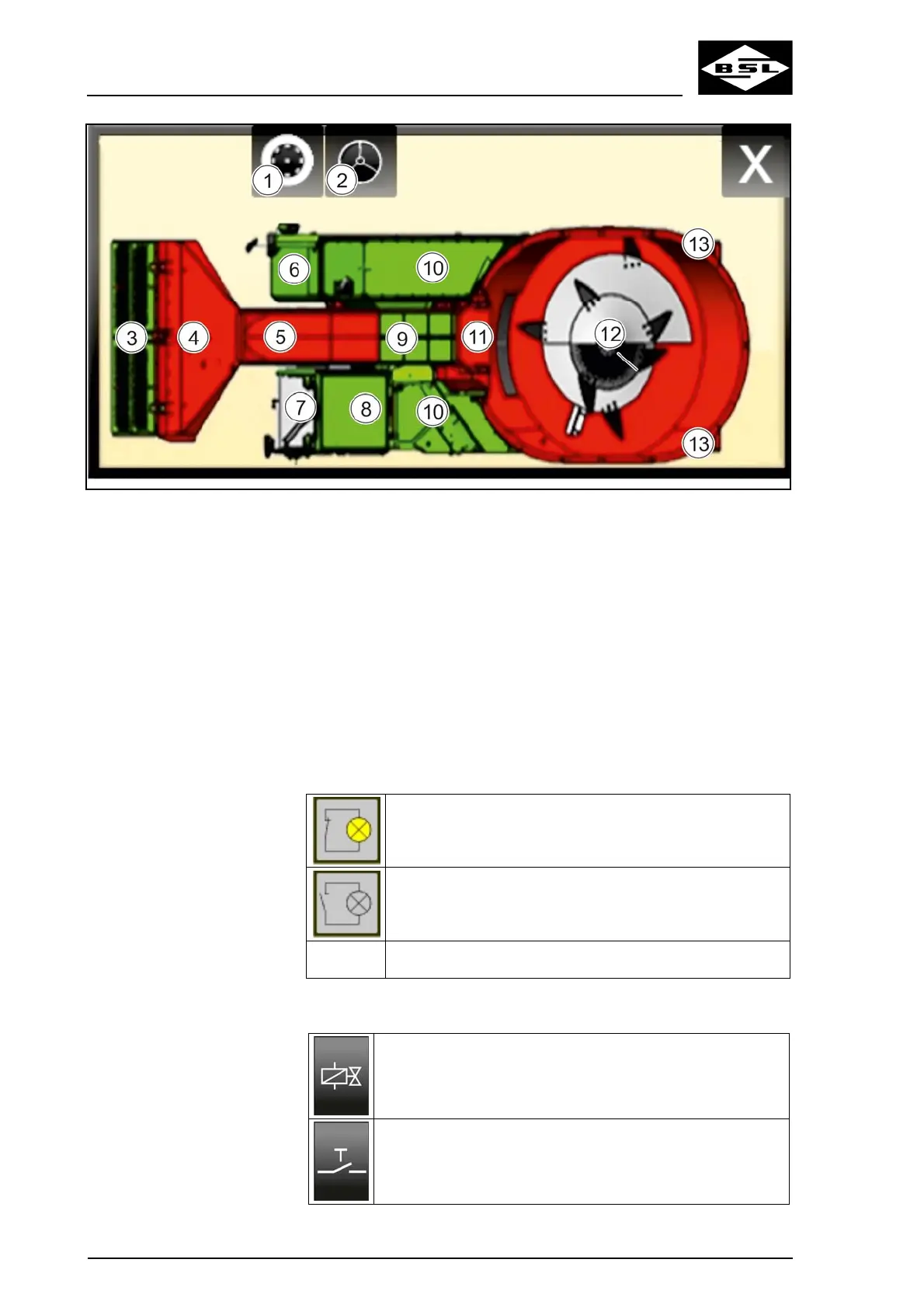

Fig. 27
(1) Travel control
(2) Steering system
(3) Protective device of pick-up milling cutter
(4) Pick-up milling cutter
(5) Cutter arm
(6) Diesel engine
(7) Cabin
(8) Hydraulic oil supply
(9) Elevator conveyor
(10) Crossover conveyor
(11) Discharge door
(12) Mixing auger(s)
(13) Hydraulic counter-cutters / Crossover
conveyor (optional extra)
Possible displays of diagnosis outputs:
Active status
Inactive Status
Value and unit
The respective integrated symbol indicates which signal type is called
up.
Switching output
Examples: light, relay, valve
Switching input
Examples: switch, sensor
