Duty Cycle
WARNINGS:
• The duty cycle for the Sagittal Saw Attachment
takes precedence over the general duty cycle
specified for the handpiece.
• ALWAYS follow the recommended duty cycle to
prevent the equipment from overheating.
Mode of Operation: Non-continuous
HANDPIECE BLADE DUTY CYCLE
System 8
Cordless Driver
and
Cordless
Driver 4
All blades 10 seconds on/
20 seconds off,
4 times
All other
handpieces
5400-134-
XXX series
blades
10 seconds on/
10 seconds off,
3 times
All other
blades
10 seconds on/
10 seconds off,
4 times
Rest Between Cycles: 30 minutes

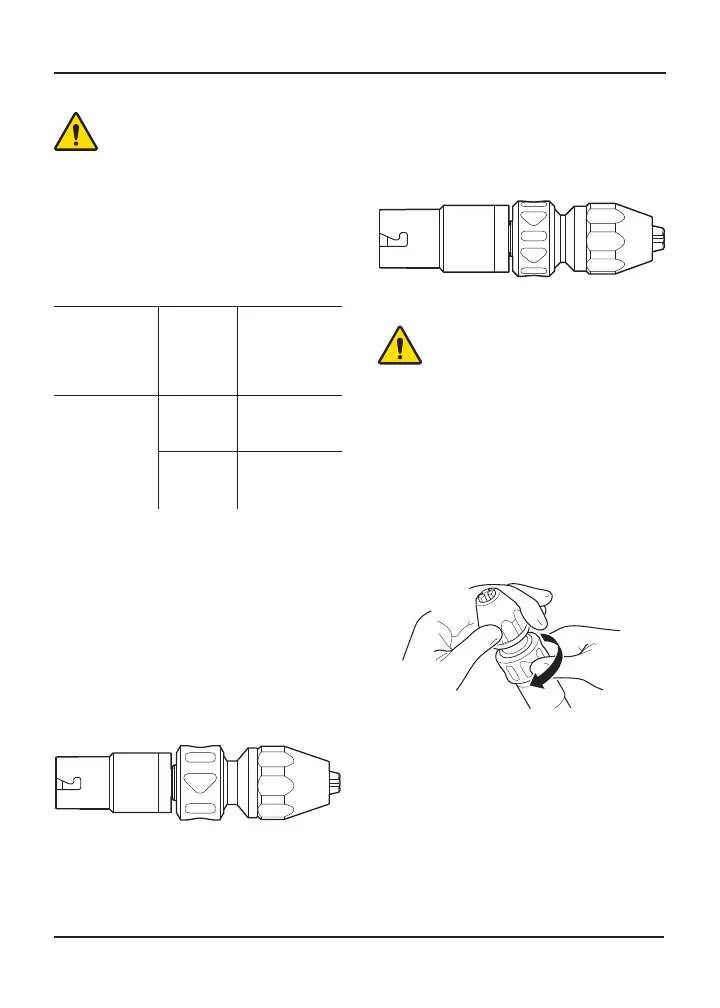

Locking Keyless Chucks
Description
1/4 inch (6.4 mm) Locking Keyless Chuck (REF
4505-133-000)
Handles wires, pins, and drill bits up to 1/4 inch
(6.4 mm) diameter. Can be operated in forward,
reverse, or oscillation modes. Length: 120 mm;
Diameter: 31.5 mm; Mass: 330 g
5/32 inch (4.0 mm) Locking Keyless Chuck (REF
4505-134-000)
Handles wires, pins, and drill bits up to 0.156 inch
(4 mm) diameter. Can be operated in forward,
reverse, or oscillation modes. Length: 105 mm;
Diameter: 28.5 mm; Weight: 245 g
Instructions
WARNING: You must manually close
the chuck jaws to secure the accessory.
Operating the handpiece to automatically
close the jaws on the accessory may
result in injury to the user.
NOTE: If the chuck is attached to the handpiece
during accessory installation, rotating the chuck
collar will also rotate the handpiece drive
mechanism.
To Install an Accessory
1. Open the chuck jaws by holding the sleeve in
one hand and turning the collar with the other
hand.
Turn
collar
Hold
sleeve
2. Insert the cutting accessory and make certain it
is centered in the jaws.
To Next Page
