Chucks with Key
Description

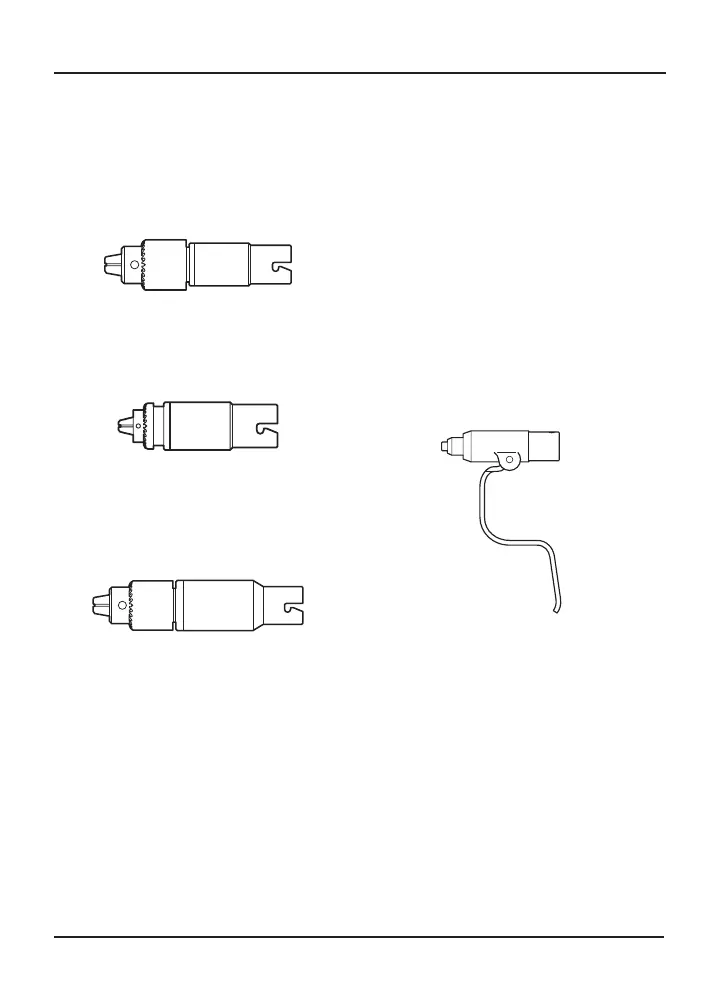

1/4 inch Keyed Chuck (REF 4100-131-000)
Handles wires, pins, and drill bits up to 1/4 inch
(6.4 mm) diameter. Length: 108.7 mm; Diameter:
28.7 mm; Weight: 209.0 g
5/32 inch Drill (REF 4100-132-000)
Handles wires, pins, and drill bits up to 5/32 inch
(4 mm) diameter. Length: 83.0 mm; Diameter:
25.2 mm; Weight: 137.3 g
1/4 inch Reamer (REF 4100-231-000)
Handles wires, pins, and drill bits up to 1/4 inch
(6.4 mm) diameter with low speed and high torque.
Length: 116.9 mm; Diameter: 28.8 mm; Weight:
295.5 g
Chuck style attachments are supplied with a
chuck key.
Instructions
To Install an Accessory
1. Use the chuck key to open the chuck jaws.
2. Insert the accessory into the center of the
chuck jaws.
3. Use the chuck key to close the chuck jaws.
4. Visually inspect the accessory to make sure it
is centered in the chuck jaws.
5. Tug the accessory to make sure it is secure
before operating the handpiece.
To Remove an Accessory
1. Use the chuck key to open the chuck jaws.
2. Remove the accessory.
Duty Cycle
See the instructions for use supplied with the
handpiece.
Wire and Pin Collets
Description
Wire Collet (REF 4100-062-000)
This collet holds K-wires having diameters from
0.028 – 0.071 inch (0.7 – 1.8 mm). Length:
88.6 mm; Height: 143.1 mm; Diameter: 22.9 mm;
Weight: 192.8 g
