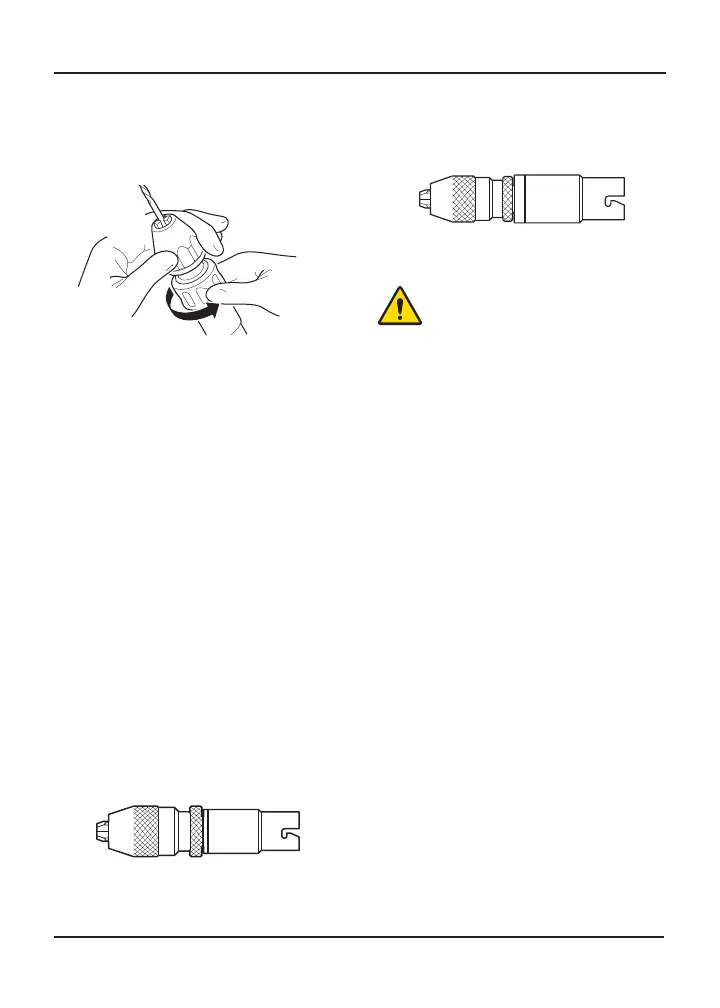

3. Close the jaws by holding the sleeve and
turning the collar until tight. The collar will
move forward with one or more audible clicks.
Continue turning the collar until the collar is
hand-tight.
Turn
collar
Hold
sleeve
4. Tug the cutting accessory to ensure it is secure.
5. Visually verify that the cutting accessory is
centered in the jaws. If the accessory has flats,
make sure the jaws are centered directly on
the flats.
6. Install the attachment in the handpiece.
To Remove an Accessory
1. Hold the sleeve in one hand and turn the collar
with the other hand to open the jaws.
2. Remove the accessory.
Duty Cycle
See the instructions for use supplied with the
handpiece.
Keyless Drill Chucks
Description
1/4 inch Keyless Drill Chuck (REF 4100-133-000)
Handles wires, pins, and drill bits up to 1/4 inch
(6.4 mm) diameter. Length: 113.6 mm; Diameter:
30.2 mm; Weight: 298.1 g
1/8 inch Keyless Drill Chuck (REF 4100-134-000)
Handles wires, pins, and drill bits up to 1/8 inch
(3.2 mm) diameter. Length: 103.8 mm; Diameter:
25.1 mm; Weight: 200.9 g
Instructions
WARNING: You must manually close
the chuck jaws to secure the accessory.
Operating the handpiece to automatically
close the jaws on the accessory may
result in injury to the user.
To Install an Accessory
1. Open the chuck jaws by holding the attachment
with the collar or knurled ring in one hand and
turning the collar with the other hand.
2. Insert the cutting accessory and make certain it
is centered in the jaws.
3. Close the jaws by holding the collar and turning
the knurled ring until tight.
4. Tug the cutting accessory to ensure it is secure.
5. Visually verify that the cutting accessory is
centered in the jaws.
6. Install the attachment in the handpiece.
To Remove an Accessory
1. Hold the knurled ring in one hand and turn the
collar with the other hand to open the chuck
jaws.
2. Remove the accessory.
Duty Cycle
See the instructions for use supplied with the
handpiece.
