SERIES CONTROLLER FOR PERIMETER SYSTEMS OPERATION MANUAL
6
3.0 STARTUP
3.1 Navigating Controller Screens
3.1.1 Menu Selection
The STULZ E
2
Series controller provides fi ve user selectable
menus needed to view operating data and enter setpoints for
the system (see Figure 4). These menus may be accessed from a
scrolling Main menu screen by pressing the Program (Prg) key.
Scroll between adjacent menu selections within the Main menu
by use of the Up ( ) and Down ( ) arrow keys.
When the desired menu is centered in the screen with bold
capital letters and an arrow symbol pointing towards the Enter
( ) key, press the Enter ( ) key to access that menu. Menu
screens located within the designated menu selection may be
accessed using the Up ( ) and Down ( ) arrow keys. Access to
some menus are protected by a built in security protocol and
requires the use of a password to gain access.
3.1.2 Menus
From the Main screen press the Program (Prg) key to select from among the fi ve menus shown in Figure 4.
MAIN
SCREEN
*Call STULZ Product Support for Assistance
MAIN MENU
Control
SERVICE
Factory
MAIN MENU
Alarm Log
CONTROL
Service
MAIN MENU
Info
ALARM LOG
Control
MAIN MENU
Factory
INFO
Alarm Log
MAIN MENU
Service
FACTORY
Info
Press ( ) or ( ) Key
Press ( ) or ( ) Key
Press ( ) or ( ) Key
Press ( ) or ( ) Key
01/01/09 00:00:00
00.0°F
00%rh
dp 00.0°F
Unit ON
MENU SCREENS DISPLAY
INFO MENU
Basic status information, no
password needed (Level 0)
ALARM LOG
Logged Alarms in chronological
sequence, no password needed
(Level 0)
CONTROL MENU
Basic user values i.e. setpoints.
Level 1 password required
SERVICE MENU
Advanced user values i.e. offsets
Level 2 password required
FACTORY MENU
(*Access is limited)
Factory values i.e. sensor scaling
*Level 3 password required
CONFIGURATION
MENU
(*Access is limited)
Used to set the STULZ A/C
model being controlled and the
basic features for that model
*Level 4 password required
From the Main Menu Screens
Press Enter ( ) Key To Access
The Menus
Press "Prg" Key

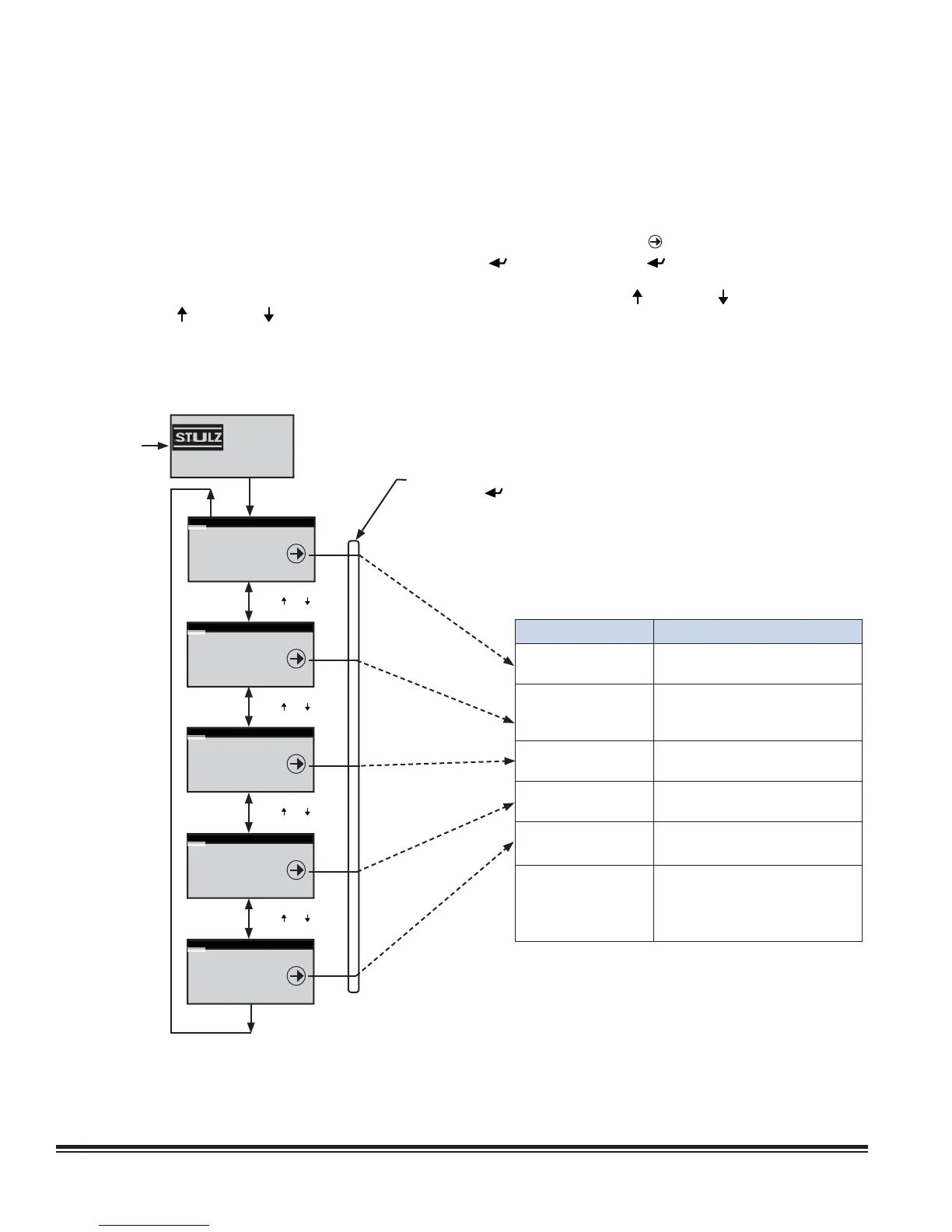

Figure 4. Menu Selections
