ME(H4SO)-37
MECHANICAL
Engine Assembly
• Catch fuel from the hose into container.

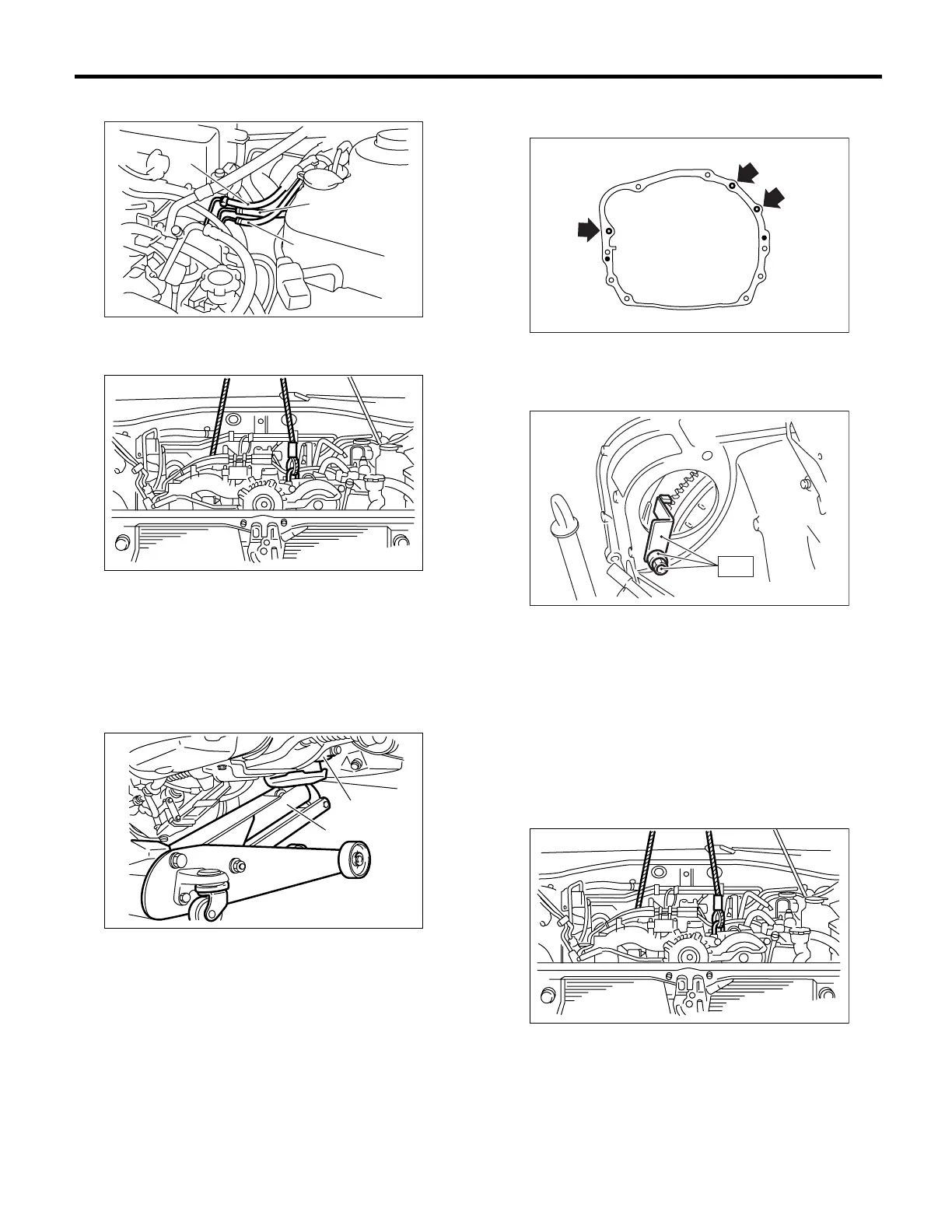

21) Support the engine with a lifting device and
wire ropes.
22) Support the transmission with a garage jack.
CAUTION:
Before moving the engine away from transmis-
sion, check to be sure no work has been over-
looked. Doing this is very important in order to
facilitate re-installation and because the trans-
mission lowers under its own weight.
23) Separation of the engine and transmission.
(1) Remove the starter. <Ref. to SC(H4SO)-7,
REMOVAL, Starter.>
(2) Remove the bolts which hold the upper side
of transmission to engine.
24) Install the ST to torque converter clutch case.
(AT model)
ST 498277200 STOPPER SET
25) Remove the engine from vehicle.
(1) Slightly raise the engine.
(2) Raise the transmission with garage jack.
(3) Move the engine horizontally until main
shaft is withdrawn from clutch cover.
(4) Slowly move the engine away from engine
compartment.
NOTE:
Be careful not to damage the adjacent parts or
body panels with crank pulley, oil level gauge, etc.
26) Remove the front cushion rubbers.
B: INSTALLATION
1) Install the front cushion rubbers.
Tightening torque:
34 N·m (3.5 kgf-m, 25.3 ft-lb)
(A) Transmission
(B) Garage jack
FU-00149
(A)
(B)
(C)
ME-00214
ME-00215
(B)
(A)
ME-00216
ST
ME-00217
ME-00214
To Next Page
