ME(H4SO)-38
MECHANICAL
Engine Assembly

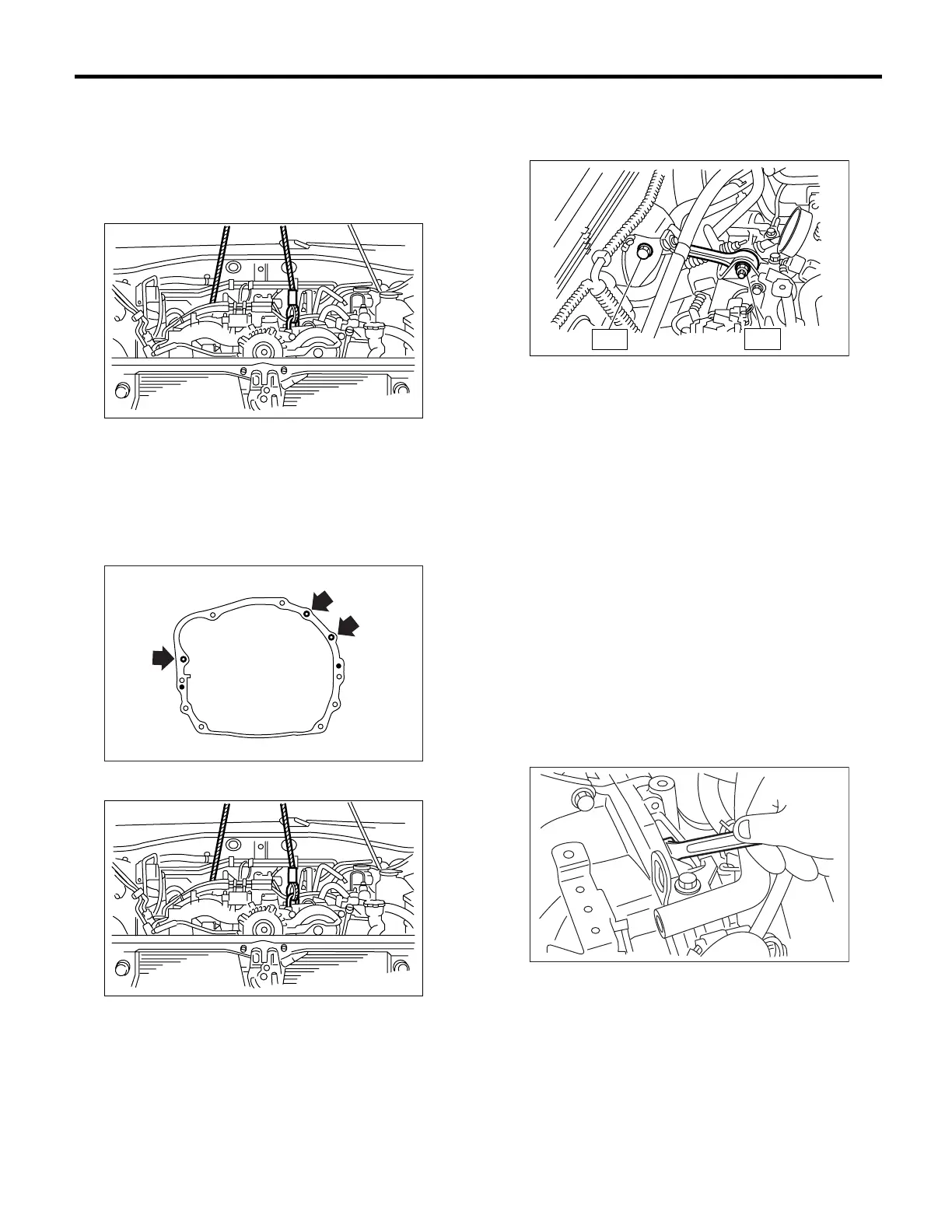

2) Install the engine onto transmission.
(1) Position the engine in engine compartment
and align it with transmission.
NOTE:
Be careful not to damage the adjacent parts or
body panels with crank pulley, oil level gauge, etc.
(2) Apply a small amount of grease to the spline
of main shaft. (MT model)
3) Tighten the bolts which hold the upper side of
transmission to engine.
Tightening torque:
50 N·m (5.1 kgf-m, 36.9 ft-lb)
4) Remove the lifting device and wire ropes.
5) Remove the garage jack.
6) Install the pitching stopper.
Tightening torque:
T1: 50 N·m (5.1 kgf-m, 37 ft-lb)
T2: 58 N·m (5.9 kgf-m, 43 ft-lb)
7) Remove the ST from torque converter clutch
case. (AT model)
NOTE:
Be careful not to drop the ST into torque converter
clutch case when removing ST.
ST 498277200 STOPPER SET
8) Install the starter. <Ref. to SC(H4SO)-7, IN-
STALLATION, Starter.>
9) Install the torque converter clutch onto drive
plate. (AT model)
(1) Tighten the bolts which hold the torque con-
verter clutch to drive plate.
(2) Tighten other bolts while rotating the engine
by using a socket wrench.
NOTE:
Be careful not to drop the bolts into torque convert-
er clutch housing.
Tightening torque:
25 N·m (2.5 kgf-m, 18.1 ft-lb)
(3) Clog the plug onto service hole.
ME-00214
ME-00216
ME-00214
ME-00218
T2
T1
ME-00212
To Next Page
